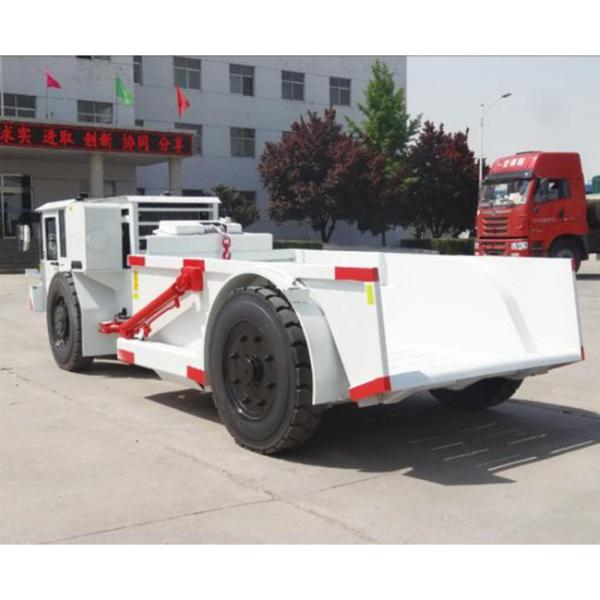

4 Ton Underground Utility Vehicle Low Belt Conveyor WC5E(A)
4 Ton Underground Utility Vehicle Low Belt Conveyor WC5E(A)
4 Ton Underground Utility Vehicle Low Belt Conveyor WC5E(A)
4 Ton Underground Utility Vehicle Low Belt Conveyor WC5E(A)
4 Ton Underground Utility Vehicle Low Belt Conveyor WC5E(A)
4 Ton Underground Utility Vehicle Low Belt Conveyor WC5E(A)
Specifications
Brand Name :
Beijun
Model Number :
WC5E(A)
Certification :
CE,ISO,TUV
Place of Origin :
China
MOQ :
1
Supply Ability :
100 Set/Sets per Month
Delivery Time :
14-30 days
Packaging Details :
Customized packaging
Model :
WC5E(A)
Overall mass(kg) :
6750
Rated load(kg) :
4000
Overall Dimension L(mm)xW(mm)xH(mm) :
6670*2000*1700
Wheelbase(mm) :
3665
Front wheelbase(mm) :
1457
Rear wheelbase(mm) :
1590
Maximum tractive force(kN) :
47
Description

WC5E(A) Low Belt Conveyor

◆4 wheels driving & braking.◆Combination design of parking brake & working brake ensures good braking performance. Braking model is SAHR(spring applied, hydraulic release)

◆Front axle is equipped NO-SPIN differential. While rear is ANTI-SLIP.

◆Low vibration level in cab

Item Main technical parameters
Model WC5E (A)
Overall mass(kg) 6750
Rated load(kg) 4000
Overall Dimension L(mm)xW(mm)xH(mm) 6670*2000*1700
Wheelbase(mm) 3665
Front wheelbase(mm) 1457
Rear wheelbase(mm) 1590
Minimum ground clearance(mm) 202
Climbing capacity(°) 14°
Running speed of each gear(km/h) Forward I gear 0-7
II gear 0-14
III gear 0-25
IV gear 0-36
Reverse I gear 0-9
Reverse II gear 0-14
Reverse III gear 0-25
Reverse IV gear 0-36
Minimum passing ability radius(mm) Outboard 5700
Inside 4065
Maximum tractive force(kN) 47
Transmission mode Hydraulic transmission
Braking type Working brake Hydraulic Brake Wet Brake
Parking brake Spring brake Hydraulic release Fail-safe
Drive type Front wheel drive

4 Ton Underground Utility Vehicle Low Belt Conveyor WC5E(A)4 Ton Underground Utility Vehicle Low Belt Conveyor WC5E(A)4 Ton Underground Utility Vehicle Low Belt Conveyor WC5E(A)
