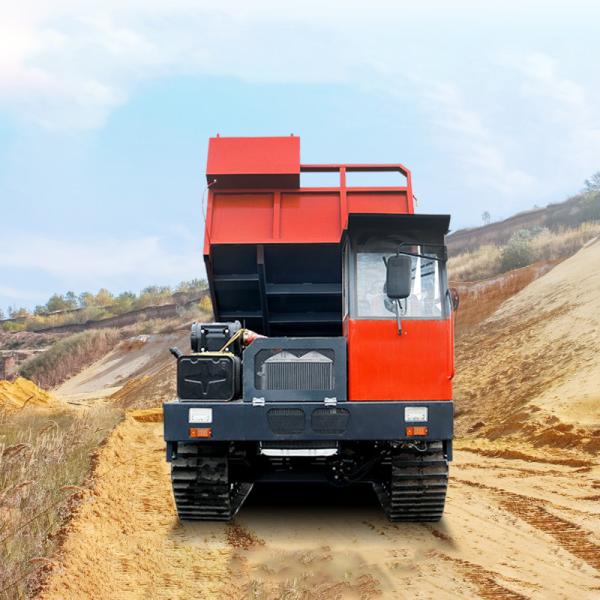

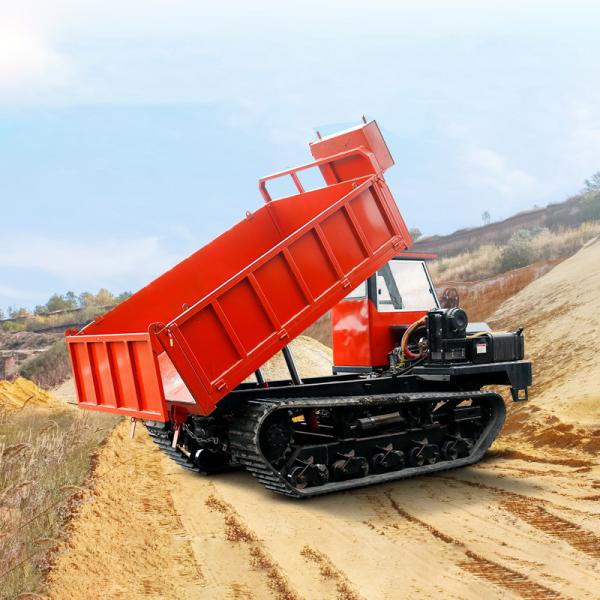

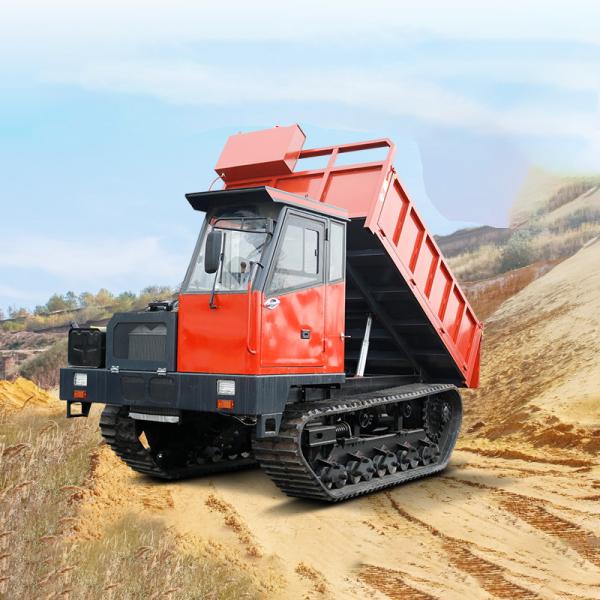

12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model
12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model
12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model
12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model
12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model
12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model
12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model
12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model
12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model
12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model
Specifications
Brand Name :
Beijun
Model Number :
Crawler Dumper Truck
Certification :
CE,ISO,TUV
Place of Origin :
China
MOQ :
1
Price :
USD 6000-15002 Set
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
15-27 days
Packaging Details :
Customized packaging
length*width*height :
3700*1700*2080mm
Cargo box size :
2400*1500*600 bottom 2 sides 2
Color :
Red
launch brand :
Weichai Jiaxin
engine model :
4105
Model model :
GULI 29
crawler :
Engineering rubber tracks
Track model :
320*90*56mm
Description

Product parameters of 12 Ton Crawler Dumper Truck

Early tracked vehicles were not perfect in terms of power system, steering system, and load capacity, and had complex structures and high costs; Although wheeled vehicles are mature and reliable, their off-road performance and walking system resistance have certain limitations. On this basis, semi tracked vehicles emerged. Half tracked vehicles are basically based on wheeled vehicles, with the rear wheels changed to tracked vehicles. After modification, the engine and gearbox of wheeled vehicles can continue to be used, and as many universal components as possible can reduce costs and facilitate mass production. During wartime, semi tracked vehicles are mainly used as auxiliary vehicles for tracked vehicles, with stronger off-road capabilities than wheeled vehicles. Although the original intention of the design was to take advantage of the strengths of both systems, it inevitably inherited the shortcomings of the two systems. The road speed is not as fast as wheeled vehicles, the off-road ability is not as good as tanks, the structure is complex, and maintenance is difficult. Even maintenance requires preparing two sets of tools.

length*width*height 3700*1700*2080mm
Cargo box size 2400*1500*600 bottom 2 sides 2
launch brand Weichai Jiaxin
engine model 4105
Model model Guli 29
gear Top 3 inverted 1 high and low speed
crawler Engineering rubber tracks
Track model 320*90*56mm
Hydraulic dump function Single top dump
Bearing weight 6 tons
Cargo box height from ground 58mm
uphill angle 35 degrees
Single wheel side system Full 180 floating wheels
Start mode Electric start
Weight 2200kg

12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model12 Ton Crawler Dumper Truck With Semi Tracked Design Weichai Jiaxin Engine And Guli 29 Model
