Diesel Underground Scraper For Mine Tunnel
Diesel Underground Scraper For Mine Tunnel
Diesel Underground Scraper For Mine Tunnel
Diesel Underground Scraper For Mine Tunnel
Diesel Underground Scraper For Mine Tunnel
Diesel Underground Scraper For Mine Tunnel
Diesel Underground Scraper For Mine Tunnel
Diesel Underground Scraper For Mine Tunnel
Specifications
Brand Name :
Beijun
Model Number :
BJL-10
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Price :
USD 85000-250000 Set
Payment Terms :
L/C, T/T
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
7 days
Packaging Details :
Customized packaging
Rated load capacity :
10 000 kg
Maximum shovel force :
187kN
Largest traction :
223kN
Standard bucket capacity :
4.0m³
operating weight :
27500kg
Tire :
TIANLI
Diesel engine :
VOLVOTAD1150VE
Rated power :
235 kW @2100rpm
Description

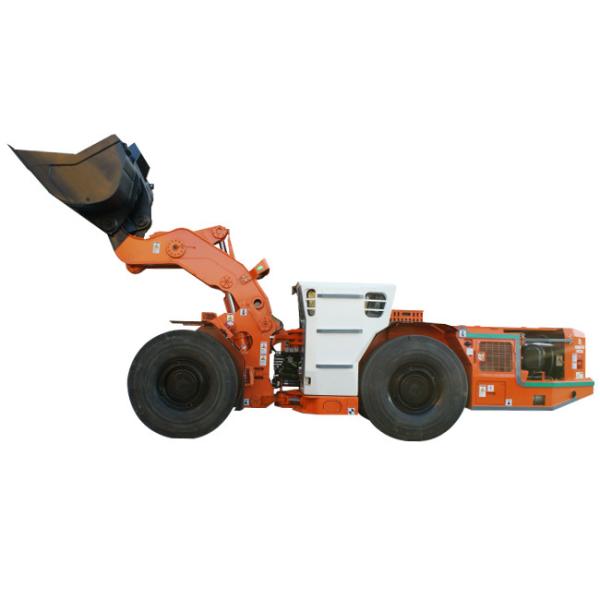

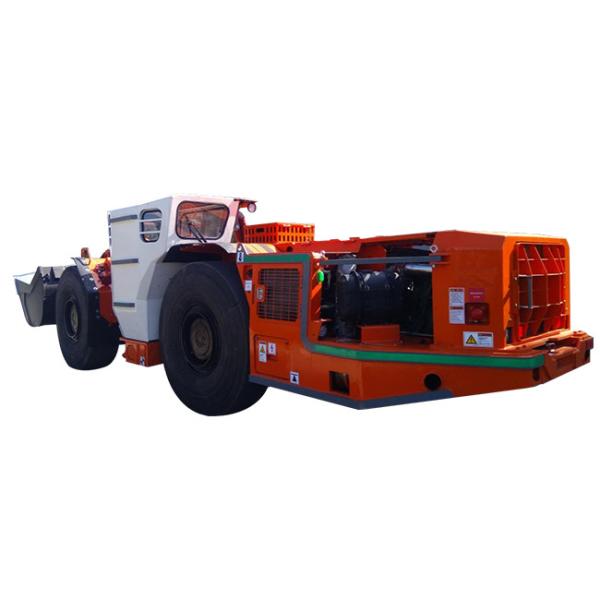

1cbm BJL-10 Hydraulic Diesel Underground Scraper For Mine Tunnel

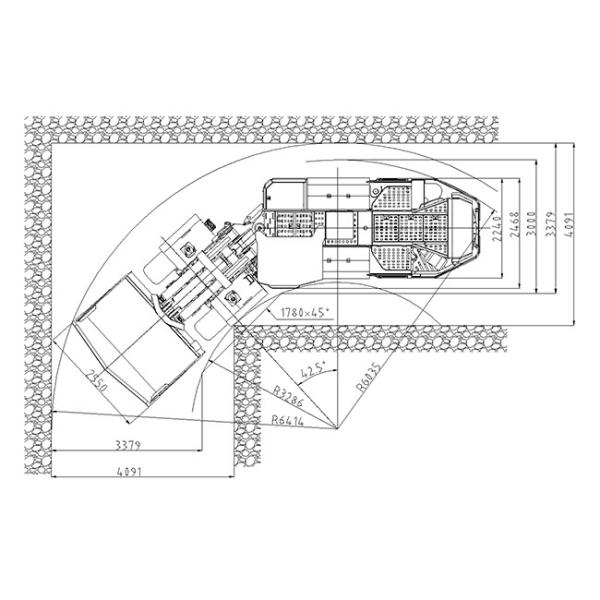

BJL-10 underground scraper, suitable for 4.1×4.1m mine tunnel. The underground scraper has a high degree of intelligence, is safe and reliable to use, and has good overall machine stability, which can greatly improve mine productivity and profitability.

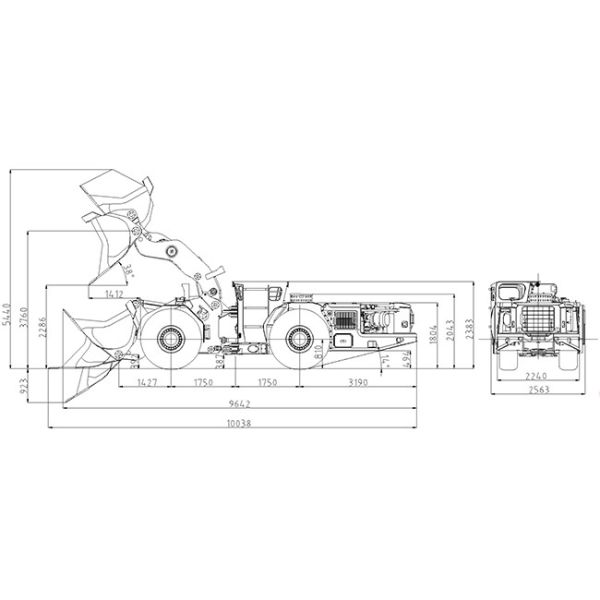

The working device of the whole machine adopts the Z-type reverse six-bar working device, which has strong shovel taking force and the unloading height can reach 2286mm, which can meet the loading requirements of ore trucks below 40T in the process of underground mining.

BJL-10 is equipped with a split rear frame, which is easy to disassemble and maintain; the working oil tank and the brake oil tank are separated, which effectively reduces the mutual pollution between hydraulic oils, reduces the failure rate of the whole machine, improves the life of hydraulic components, and improves the stability of the whole machine .

The equipment is designed according to the standard
JB/T5500 Underground Scraper
JB/T5501 Test method for underground scrapers
JB8518 Safety Requirements for Underground Scrapers
GB25518 Safety Requirements for Underground Scrapers
BJ13.1-2013 Scraper Enterprise Standard

power system
Diesel engine VOLVOTAD1150VE
Rated power 235 kW @2100rpm
Rated torque 1581Nm @ 1260rpm
Number of cylinders Inline 6-cylinder
Exhaust volume 10.84 L
cooling system water-cooled engine
Combustion principle 750mm engine with built-in fan
Intake air filter 4-stroke direct injection engine, supercharged and intercooled
Control System Dry air filtration, pre-filtration + two-stage filtration
Electrical System Electronic fuel injection system
Emission Standards 24V
exhaust system Euro III
Average fuel consumption, 25L/h
At 50% load 320L

Diesel Underground Scraper For Mine TunnelDiesel Underground Scraper For Mine Tunnel

Diesel Underground Scraper For Mine TunnelDiesel Underground Scraper For Mine Tunnel
