Multifunctional 60~140r/Min Waterwell Drilling Rig Equipment
Multifunctional 60~140r/Min Waterwell Drilling Rig Equipment
Multifunctional 60~140r/Min Waterwell Drilling Rig Equipment
Multifunctional 60~140r/Min Waterwell Drilling Rig Equipment
Multifunctional 60~140r/Min Waterwell Drilling Rig Equipment
Multifunctional 60~140r/Min Waterwell Drilling Rig Equipment
Specifications
Brand Name :
Beijun
Model Number :
QY200
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Price :
USD 10000-30000 Set
Payment Terms :
L/C, T/T
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
7 days
Packaging Details :
Customized packaging
Drilling depth :
200m
Borehole (Drill bit) dia. :
Ø115～Ø350mm
Lifting capacity :
16 Ton
Thrusting capacity :
8 Ton
Rotary speed :
60~140 r/min
Torque :
4000~2000N.m
Engine Model :
Yunnei engine YN33GB
Rated power/speed :
58kW/ 2400r/min
Tool winch capacity :
0.9 Ton
Description

Mine Drilling rig Application:

1. Well drilling
2. Coal Mining
3. Oil Mining
4. Rock Drilling
Hydraulic water well drilling rig is a kind of high efficiency multifunctional drilling equipment, it is mainly suitable for
drilling wells, agricultural irrigation wells, ground source heat pump wells and other purpose well hole, especially in
mountainous area and rock formation water engineering. The drill can work in different formation to create the biggest hole diameter is 300 mm.

Mine Drilling Rig Introduction:

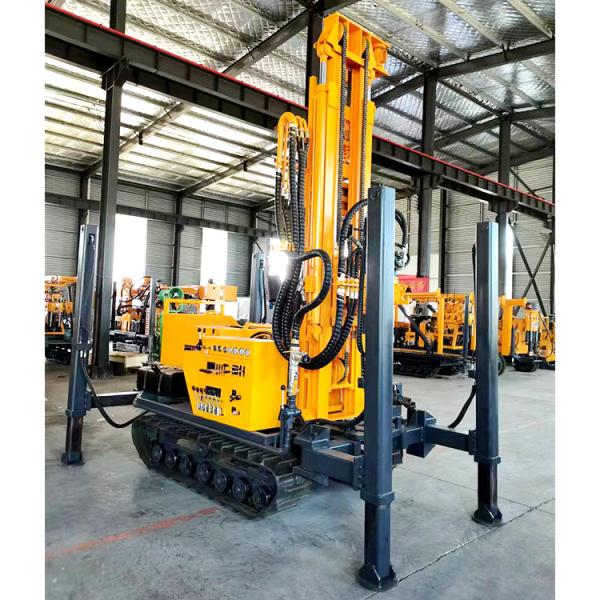

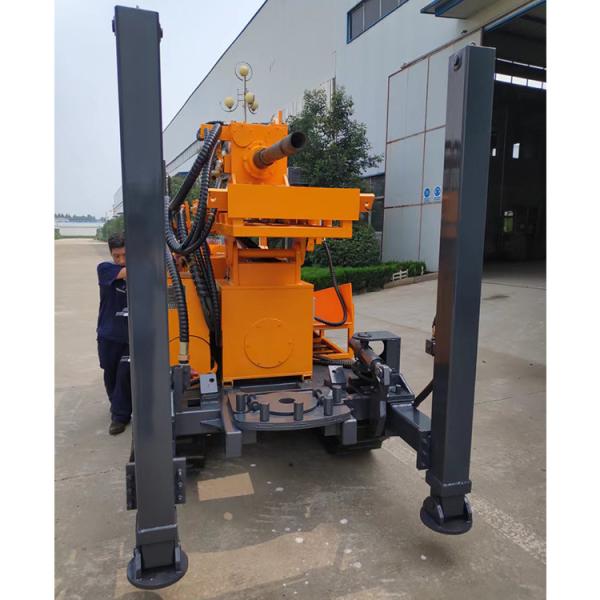

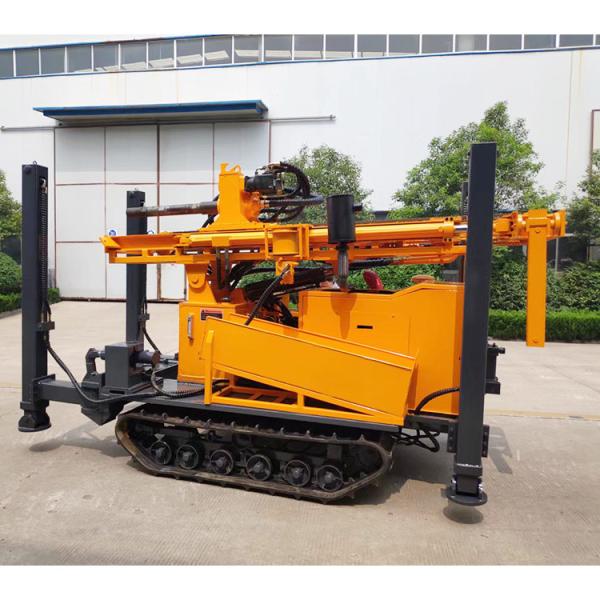

The QY200 crawler type water well drilling rig is a highly efficient and versatile drilling equipment. It is mainly used for
drilling wells, agricultural irrigation wells, ground source heat pump wells and other wells. It is especially suitable for water
intake projects in mountainous and rock formations.

Mine Drilling Rig Features:

1. The rig adopts the new type of hydraulic technology, supporting the rotary hydraulic motor with high torque, large diameter hydraulic cylinder.
2. Two stage air filter and led by compressed air inlet design, prolong the service life of diesel engine, the unique pump group design and convenient maintenance, reduce the maintenance cost.
3. Centralized control of the hydraulic control console, convenient operation."
4. This series of drilling rig options crawler chassis, wheeled chassis, cross-country performance is strong
5. Independent module design, high oil cylinder leg can make the rig easily on the truck, to increase its mobility.
6. Two rotary and advancing speed can meet different create need in soil and rock formations
Specification of QY200 Drilling Rig
Drilling capacity Drilling depth 200m
Borehole (Drill bit) dia. Ø115～Ø350mm
Feeding system Lifting capacity 16 Ton
Thrusting capacity 8 Ton
Drive head Rotary speed 60~140 r/min
Torque 4000~2000N.m
Power Unit Engine Model Yunnei engine YN33GB
Rated power/speed 58kW/ 2400r/min
Tool winch capacity 0.9 Ton
Drill pipe Drill pipe dia. Ø76/ Ø89mm
Drill pipe length 3000mm
Air compressor Air consumption 16～35m3/min
Air pressure 10.5～24.6bar
Crawler chassis Walking speed 0～3 km/h
Climbing angle Max. 25°
Dimension Transport 3400*1700*2300mm
Working 3400*2500*6500mm
Weight 4000kg

Multifunctional 60~140r/Min Waterwell Drilling Rig EquipmentMultifunctional 60~140r/Min Waterwell Drilling Rig EquipmentMultifunctional 60~140r/Min Waterwell Drilling Rig Equipment
