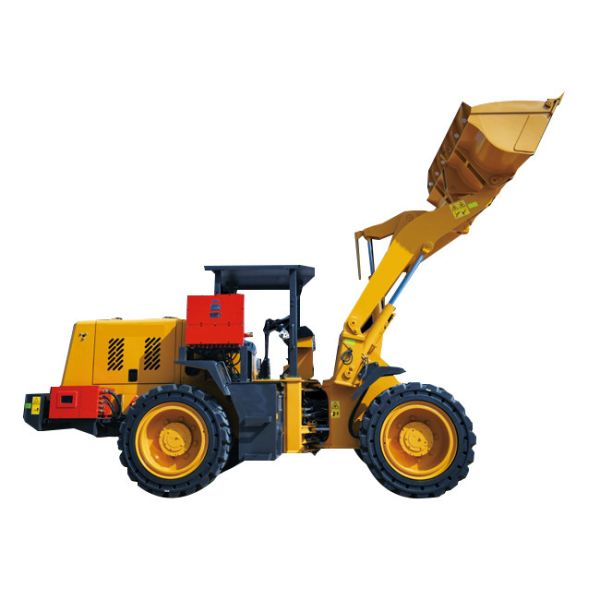

Diesel Engine Powered Underground Mining Loader 2000kg JC929D
Diesel Engine Powered Underground Mining Loader 2000kg JC929D
Diesel Engine Powered Underground Mining Loader 2000kg JC929D
Diesel Engine Powered Underground Mining Loader 2000kg JC929D
Diesel Engine Powered Underground Mining Loader 2000kg JC929D
Diesel Engine Powered Underground Mining Loader 2000kg JC929D
Specifications
Brand Name :
Beijun
Model Number :
JC929D
Certification :
CE,ISO,TUV
Place of Origin :
China
MOQ :
1
Supply Ability :
100 Set/Sets per Month
Delivery Time :
14-30 days
Packaging Details :
Customized packaging
Bucket Capacity :
1m3
Rated Loading :
2000kg
Total Cycling Time :
≤5s
Max.Speed :
19km/h
Max.Breakout Force :
73KN
Max.Traction Force :
40KN
Minimum Turning Radius :
5550mm
Length :
5640mm
Description

Product Features

The YTO Dongfanghong supercharged diesel engine with strong power 4A3Z-G95X3A-U2 provides up to 35% more power than other engines in its class, making it an excellent choice for powering this loader in challenging underground environments.

The single-stage three-element torque converter and power shift gearbox offer a simple and reliable transmission system, reducing the risk of downtime and maintenance costs.

The use of a single pump diversion work hydraulic system provides up to 35% more energy efficiency compared to other hydraulic systems, helping to reduce fuel consumption and operating costs. The double-sealed hydraulic pipe joints also offer up to 35% more protection against oil leakage, which can be hazardous and environmentally damaging.

The load sensing full hydraulic steering system provides precise and responsive control of the loader, making it easy to maneuver in tight spaces and around obstacles. The gas-top oil-assisted braking system with caliper disc brakes offers up to 35% more efficient and reliable braking, even when carrying heavy loads.

The strengthened welding driving shed offers up to 35% more durability and reliability, ensuring that the loader can withstand the harsh conditions of underground mining operations.

The smoke exhaust purification system helps to reduce the environmental impact of the loader, providing up to 35% more environmentally friendly and sustainable mining operations.

Main performance parameters

Item Specifications Unit
Bucket Capacity 1 m3
Rated Loading 2000 kg
Total Cycling Time ≤5 s
Max.Speed 19 km/h
Max.Breakout Force 73 KN
Max.Traction Force 40 KN
Minimum Turning Radius 5550 mm
Length 5640 mm
Width 1680 mm
Bucket Width 1800 mm
Height 1900 mm
Tread 1500 mm
Wheel Base 2150 mm
Min Ground Height 250 mm
Max. Dumping Height 1800 mm
Max. Dumping Distance 1008 mm
Operation Mass 5780 kg
