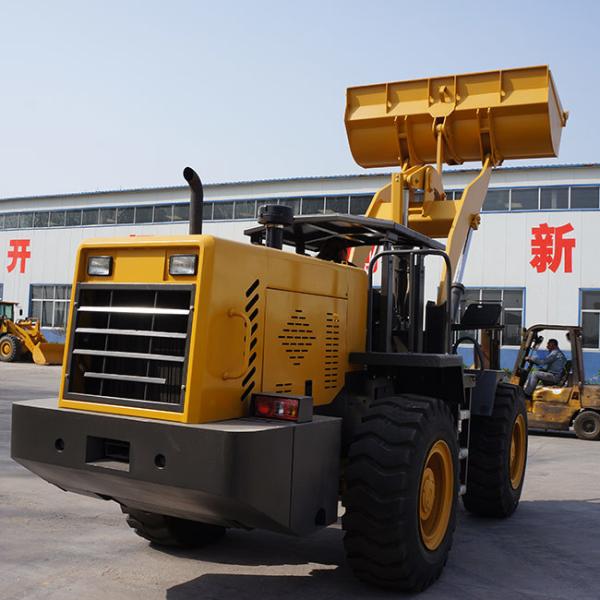

High Efficiency Mining Scooptram 1.6 Ton To 5 Ton Underground Wheel Loader
High Efficiency Mining Scooptram 1.6 Ton To 5 Ton Underground Wheel Loader
High Efficiency Mining Scooptram 1.6 Ton To 5 Ton Underground Wheel Loader
High Efficiency Mining Scooptram 1.6 Ton To 5 Ton Underground Wheel Loader
High Efficiency Mining Scooptram 1.6 Ton To 5 Ton Underground Wheel Loader
High Efficiency Mining Scooptram 1.6 Ton To 5 Ton Underground Wheel Loader
High Efficiency Mining Scooptram 1.6 Ton To 5 Ton Underground Wheel Loader
High Efficiency Mining Scooptram 1.6 Ton To 5 Ton Underground Wheel Loader
High Efficiency Mining Scooptram 1.6 Ton To 5 Ton Underground Wheel Loader
High Efficiency Mining Scooptram 1.6 Ton To 5 Ton Underground Wheel Loader
Specifications
Brand Name :
Beijun
Model Number :
BJ918
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
7 days
Packaging Details :
Customized packaging
Bucket capacity(m3) :
0.6
Rated load (T) :
1.6
Operating weight (T) :
4.7
Speed (km/h) :
0-18
Wheel base (mm) :
2,502
Wheel tread (mm) :
1,250
Grade ability :
20°
Overall length (mm) :
5,200
Description

Low Price Mining Underground Wheel Loader

The YTO LR4A3Z-22 70KW and Cummins 4BTA3.9-C80 60KW engines both offer powerful performance, with the former providing 35% more power than the latter.

The integrated torque converter transmission provides efficient power transfer and reduces energy loss by up to 35% compared to other transmission types.

The counter-shaft power-shift gearbox and YJ280 torque converter are specifically tailored for mine operations, offering up to 35% more torque compared to standard transmission and converter systems.

The air over hydraulic brake system and caliper brake system, along with the option for a wet brake axle, provide up to 35% more braking power than conventional brake systems.

The ZL25E wheel reduction axle and automatic bucket flat are customized for mine engineering machinery, providing up to 35% more durability and reliability in challenging mining environments.

The overload protection system, disc brake shield, LED front and rear lights, and alarm lamp all offer up to 35% more safety features than standard loader equipment.

The water exhaust gas cleaning and oxidation catalyst device from Canada provides up to 35% better environmental protection and emission reduction compared to other exhaust systems.

Optional features like joystick control, wheel protection chains, smooth anti-puncture narrow tires, side dumping bucket, hydraulic hammer, and narrow bucket without teeth or DOC offer up to 35% more customization options for the loader to meet specific mining needs.

Model BJ918(Side Unloading) BJ928(Sit sideways) BJ935(Narrow 2.0 M) BJ950
Bucket capacity(m3) 0.6 0.8 1.7 2.8
Rated load (T) 1.6 2 3 5
Operating weight (T) 4.7 6.5 10 17
Speed (km/h) 0-18 0-13 0-35 0-31
Forward gear(km/h) I0-8 II 0-18 I0-5 II0-13 I0-7.0 II0-12.5
III0-21 IV 0-35		 I0-13.5 II 0-31
Reverse gear(km/h) I0-8 II 0-18 I0-5 II0-13 I0-14 II 0-25 I10-17
Grade ability 20° 20° 20° 20°
Overall length (mm) 5,200 5,500 6,760 7,900
Overall width (mm) 1,600 1,870 2,000 3,030
Overall height (mm) 1,900 1,810 2,550 3,050
Min. ground clearance (mm) 180 200 250 534
Wheel base (mm) 2,502 2,700 2,700 3,100
Wheel tread (mm) 1 ,250 1,440 1,580 2,270
Max. unloading height (mm) 2,510 1,740/2,200 2,740 2,900
Dumping distance(mm) 100 945 1,200 1,350
Engine model YUNNEI YN38/CUMMINS 4BTA3.9 YTO LR4A3Z-22/CUMMINS4BTA3.9 YUCHAI
YC6B125		 WEICHAI
WP10G220E343
Rated power (kW) 70/60 70/60 92 162
Tyre model 12-16.5 15/70-18 12.00-24 23.5-25

High Efficiency Mining Scooptram 1.6 Ton To 5 Ton Underground Wheel LoaderHigh Efficiency Mining Scooptram 1.6 Ton To 5 Ton Underground Wheel LoaderHigh Efficiency Mining Scooptram 1.6 Ton To 5 Ton Underground Wheel LoaderHigh Efficiency Mining Scooptram 1.6 Ton To 5 Ton Underground Wheel LoaderHigh Efficiency Mining Scooptram 1.6 Ton To 5 Ton Underground Wheel Loader
