Specifications
Brand Name :
Beijun
Model Number :
ZWY-50A
Certification :
CE,ISO,TUV
Place of Origin :
China
MOQ :
1
Supply Ability :
100 Set/Sets per Month
Delivery Time :
14-31 days
Packaging Details :
Customized packaging
Traveling Speed :
2km
Ground Clearance :
202mm
Wheel Tread :
1382mm
Wheel Base :
1502mm
Rated Working Pressure :
16mpa
Total Motor Power :
11+4kw

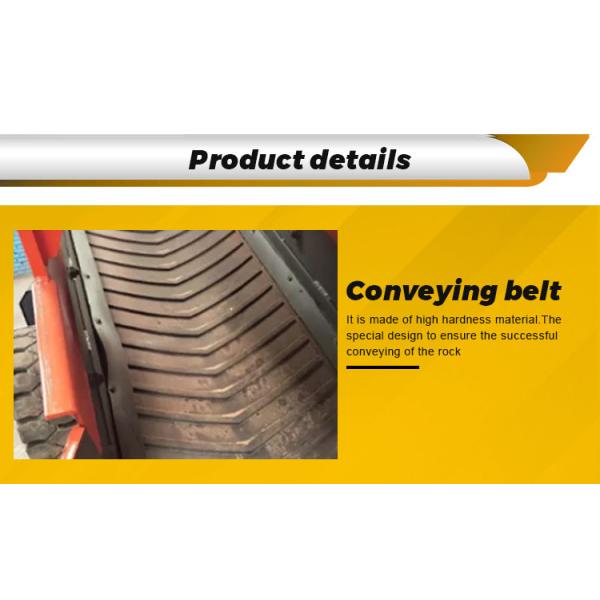

Belt Speed :
0.65m/s
Machine Weight :
3102kg
Description

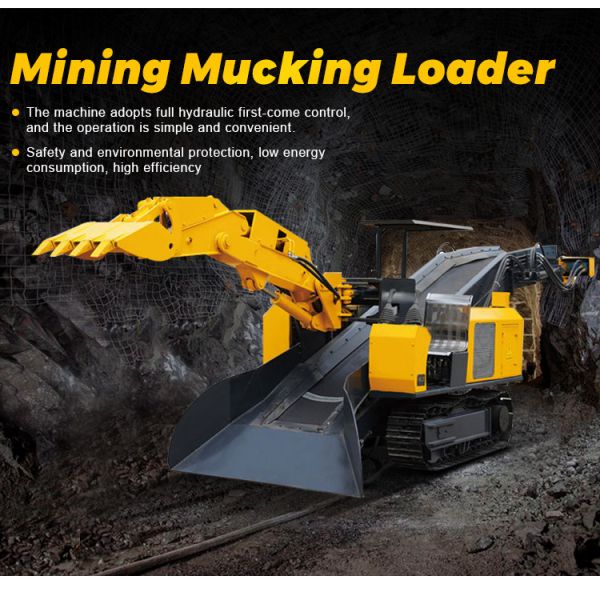

Rock Loader Air Rock Loading Machine Crawler Mucking Mining Tunnel Mucking Loader

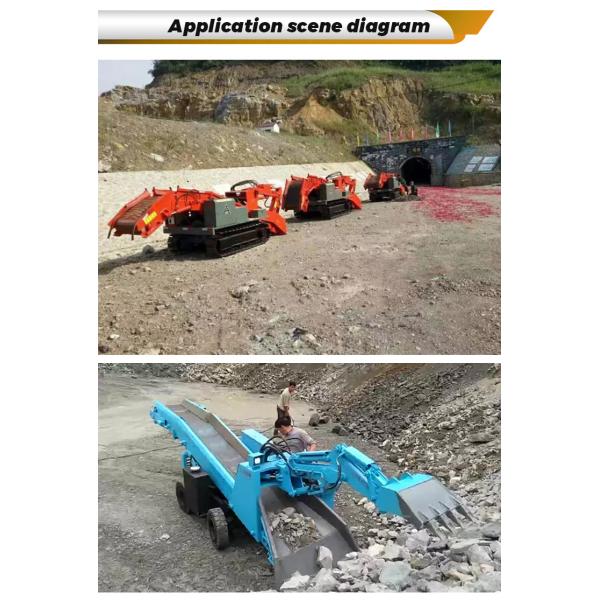

Mine slag raking machine is mainly used for phosphate ore, aluminum ore, iron ore, copper ore, gold ore, silver ore, lead-zinc ore and other mines, hydropower, tunnel projects in narrow-space mining operations.

And transportation, construction and loading. The mining slag raking machine is a combination of a manipulator and a conveyor. The slagging and conveying and loading functions are combined into one. The production device adopts an electric full hydraulic control system. It has the characteristics of safety, environmental protection, low energy consumption, and high efficiency. It is an indispensable advanced mining equipment for mining enterprises and a substitute for labor and other machinery.

Model(wheel type) ZWY-50A ZWY-60A ZWY-80A
Traveling Speed 2km 2km 2km/h
Ground Clearance 200mm 200mm 220mm
Wheel Tread 1380mm 1480mm 1700mm
Wheel Base 1500mm 1500mm 1600mm
Rated Working Pressure 16mpa 16mpa 16Mpa
Big Arm Maximum Turning Angle ±73º ±73º ±73º
Total Motor Power 11+4kw 11+4kw 15+4kw
Maximum Material Dimension 650*500*500mm 600*500*500 650*600*500mm
Adaptive Tunnel Gradient ≤15º ≤15º ≤15º
Belt Speed 0.63m/s 0.63m/s 0.63m/s
Overall Dimensions 4600*1380*1600mm 5200*1500*1600mm 6150*1750*1700mm
Machine Weight 3100kg 3400kg 3400kg
Minimum Turning Radius 4m 4m 4.5m
Digging Width 2000mm 2400mm 2400mm
Digging Height 1700mm 1900mm 2100mm
Digging Depth 700mm 700mm 700mm
Digging Distance 1300mm 1550mm 1800mm
Dumping Height 1400-1700mm 1480-1700mm 1700-1900mm
Dumping Distance 1400mm 1400mm 1900(can be raised)
Grade ability ≤15º ≤15º ≤15º
Adaptive Tunnel Minimum Fracture >1.6*1.8m 1.8*2m 2*2.4m
