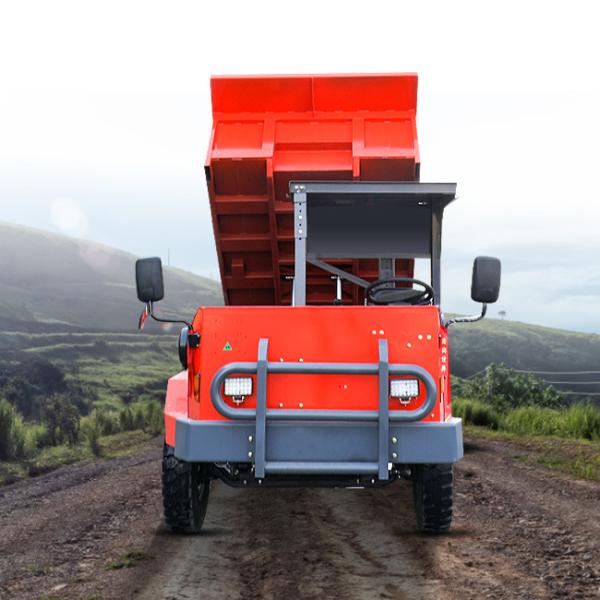

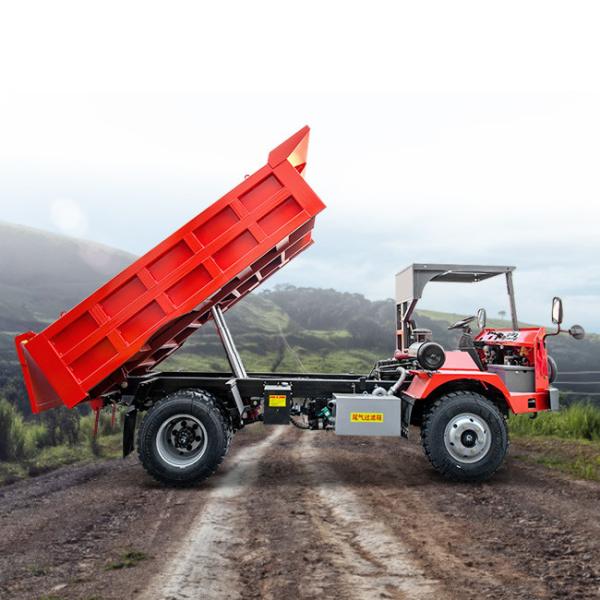

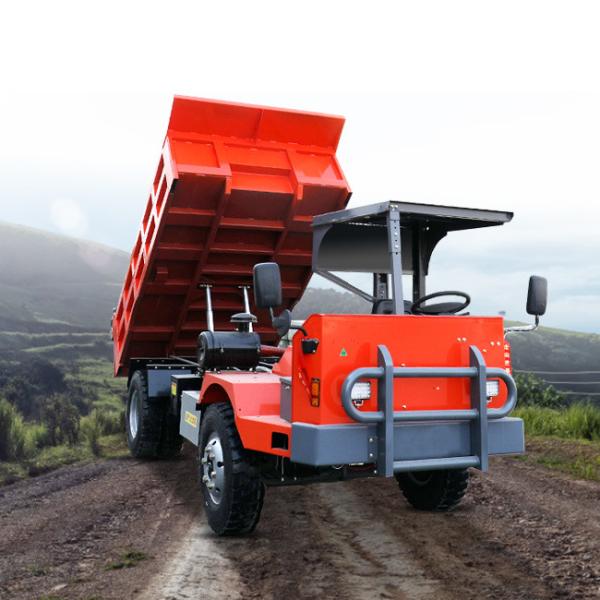

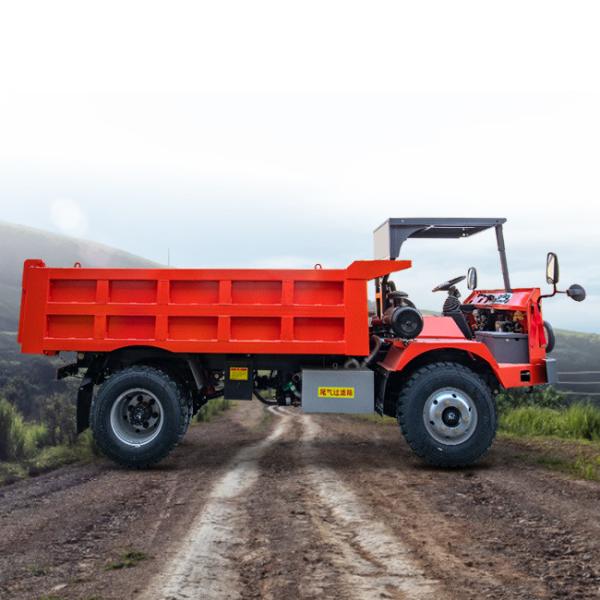

UQ-7 Underground Mining Truck 7 Ton Capacity For Infrastructure
UQ-7 Underground Mining Truck 7 Ton Capacity For Infrastructure
UQ-7 Underground Mining Truck 7 Ton Capacity For Infrastructure
UQ-7 Underground Mining Truck 7 Ton Capacity For Infrastructure
UQ-7 Underground Mining Truck 7 Ton Capacity For Infrastructure
UQ-7 Underground Mining Truck 7 Ton Capacity For Infrastructure
UQ-7 Underground Mining Truck 7 Ton Capacity For Infrastructure
UQ-7 Underground Mining Truck 7 Ton Capacity For Infrastructure
UQ-7 Underground Mining Truck 7 Ton Capacity For Infrastructure
UQ-7 Underground Mining Truck 7 Ton Capacity For Infrastructure
Specifications
Brand Name :
Beijun
Model Number :
UQ-7
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
9 - 20 days
Packaging Details :
Customized packaging
Engine Model :
YUNEI 4102
Engine Power :
70KW/95HP
Transmission Model :
Wanliyang 545
Drive Mode :
4x2
Dimension of Bottom Spring Plate :
Length 70mm, Width 11mm
Loading Capacity :
7 Tons
Type of Bucket :
U type Bucket
Thickness of Bucket Steel Plate :
bottom 8mm side 6mm
Description

Product parameters of 7 Ton Mining Dump Truck

UQ-7 is committed to building high-end logistics transportation leaders. It has outstanding performance in fuel economy, reliability, intelligence, safety and comfort. It is fully qualified for the requirements of modern high speed and large horse power logistics transportation, the users said the comfort and fuel-saving are as same as European and American trucks.

Model UQ-7
Engine Model YUNEI 4102
Engine Power 70KW/95HP
Total Dimension
Transmission Model Wanliyang 545
Transmission Gear 5 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model 1098
Rear Axle Model 1098
Tire Model 750x-6 Line Tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 10 PCS, Rear 10 PCS, Spare 6PCS
Dimension of Bottom Spring Plate Length 70mm, Width 10mm
Size of the Bucket:Length×width×height 3000mm*1800mm*600mm
Type of Bucket U type Bucket
Thickness of Bucket Steel Plate bottom 8mm side 6mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 7 Tons


UQ-7 Underground Mining Truck 7 Ton Capacity For InfrastructureUQ-7 Underground Mining Truck 7 Ton Capacity For InfrastructureUQ-7 Underground Mining Truck 7 Ton Capacity For InfrastructureUQ-7 Underground Mining Truck 7 Ton Capacity For InfrastructureUQ-7 Underground Mining Truck 7 Ton Capacity For Infrastructure
