Specifications
Brand Name :
UNEMETECH
Model Number :
UNM 713540
Certification :
UN38.3, MSDS, CE, CB, IEC62133, PSE, KC, UL1642...
Place of Origin :
Guangdong, China
MOQ :
5000PCS
Price :
1.2-3.0USD/PCS
Payment Terms :
T/T , WorldFirst , Payoneer , PingPong , Paypal , Alipay , Western Union , ...
Supply Ability :
200,000.00 Pieces Per Day
Delivery Time :
7-35 days
Packaging Details :
Inner Tray + Inner Box + Outer Carton
Battery Type :
High Voltage Lithium Polymer Battery
Model :
UNM 713540
Nominal Voltage :
3.85V
Nominal Capacity :
1530mAh (0.2C Charge/0.2C Discharge)
Typical Capacity :
1550mAh (0.2C Charge/0.2C Discharge)
Max Charging Current :
1.0C/4.4V
Max Discharging Current :
2.0C/3.0V
Peak Discharging Current :
3.0C (within 10s)

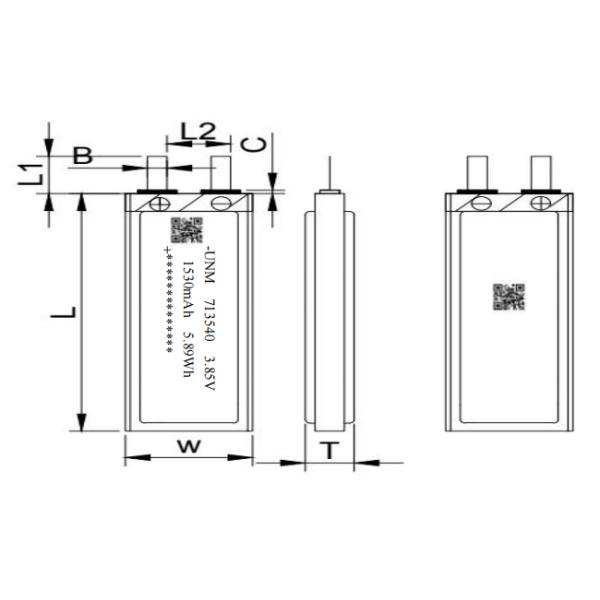

Battery Cell Size :
MAX 7.1(T)x35.0(W)x40.0(L)mm
Warranty :
1 Year
Description

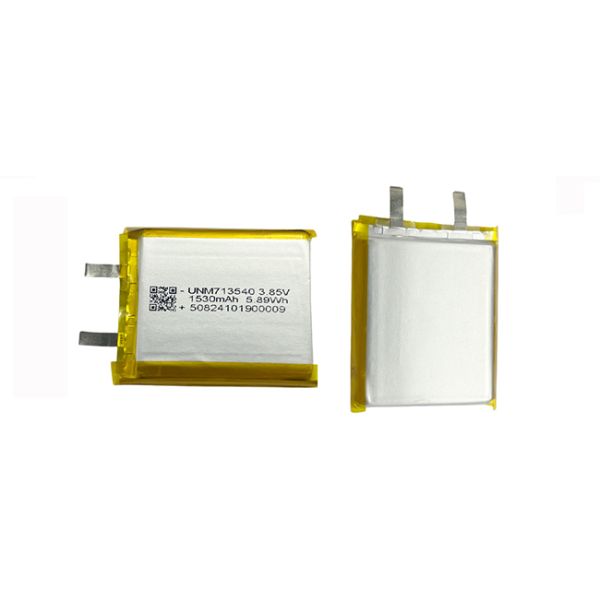

3.85V High Voltage Lithium Polymer Battery 1530mAh 713540 For Medical Devices


3.85V High Voltage Lipo Battery 713540 Description

The 713540 li polymer battery operates at 3.85V with a minimum capacity of 1530mAh and supports peak 3C discharging, making it an excellent choice for medical devices. Designed for deep cycle life, this battery ensures reliable performance and longevity, allowing for accurate readings under various conditions. The 1530mAh capacity provides sufficient power for extended use, minimizing the need for frequent recharging. Its compact size allows for easy integration into medical devices, enhancing both functionality and portability. Overall, the 713540 battery is a robust power solution that meets the demands of modern medical electronic devices.

3.85V High Voltage Lipo Battery 713540 Parameters

Description: 713540 3.85V 1530mAh
Battery Type Li Polymer Battery Material LiCoO2
Model 713540 Nominal Voltage/Capacity 3.85V/1350mAh
Weight Approx 20.0g Color&Shape Silver, Prismatic
Battrey Cell Dimension MAX 7.1(T)x35.0(W)x40.0(L)mm Cell Impedance 60mΩ
Cycle Life

≥ 500 times

(0.2C Charge/0.2C Discharge)

Warranty 1 Year
Charge Info Charge Voltage : 4.4V
Standard Charge Current : 0.2C/4.4V
Max Charge Current: 1.0C/4.4V
Discharge Info Discharge Cut-off Voltage : 3.0V
Standard Discharge Current : 0.2C/3.0V
Max Discharge Current : 1.0C/3.0V
Peak Discharge Current : 3.0C (within 10s)
Operating Temperature Charge: 0℃~+45℃
Discharge: -20℃~+60℃

3.85V High Voltage Lithium Polymer Battery 1530mAh 713540 For Medical Devices

3.85V High Voltage Lithium Polymer Battery 1530mAh 713540 For Medical Devices3.85V High Voltage Lithium Polymer Battery 1530mAh 713540 For Medical Devices


Lipo Battery Application

Lipo Battteries are widely used in below fileds:

1. Consumer categories: digital cameras; digital camcorders; MP3/MP4 players; pdas; electric toothbrushes; electric shavers; voice recorders; electronic dictionaries; e-book readers; game consoles; wireless mice; etc.
2. Electric tools: electric saw, electric drill, etc.
3. Small household appliances: portable vacuum cleaners, electric mops and so on.
4. Electric toys: remote control Toys, model aircraft, model ships and so on.
5. Electric vehicles: electric bicycles, electric cars and so on.
6. Lighting category: emergency lamp, lawn lamp, miner's lamp, solar lamp, LED lamp, etc.
7. Beauty and health care category: electric beauty, hairdresser, etc.
8. Medical devices: portable electronic medical equipment, hearing aids, electric wheelchair, etc.
9. Other classes: instrumentation, GPS, high-temperature power supply system, cold equipment, etc.

3.85V High Voltage Lithium Polymer Battery 1530mAh 713540 For Medical Devices

Precautions for Use

1. Charging: Use a charger designed for polymer lithium batteries. Avoid overcharging.
2. Discharging: Prevent deep discharge by avoiding extremely low voltage levels. Most polymer lithium batteries have built-in protection circuits.
3. Temperature: Operate within the recommended temperature range provided by the manufacturer. Avoid exposing to extreme temperatures.
4. Physical Handling: Handle with care to avoid damage or leakage. Avoid impacts, punctures, or bending.
5. Compatibility: Ensure compatibility with your device in terms of voltage, capacity, and size.
6. Storage: Store in a cool, dry place away from direct sunlight. Avoid storing at full charge or completely discharged.
7. Transportation: Comply with transportation regulations and guidelines.
8. Disposal: Dispose of properly. Recycle at designated facilities or follow local regulations.

After-sales Service

1. After-sales warranty:
- According to the contract, we provide a certain warranty period for the exported lithium polymer batteries.
- During the warranty period, if the product has quality problems under normal use conditions, we will provide replacement or return service according to the after-sales policy.

2. Product quality assurance:
- We guarantee that the exported lithium polymer batteries comply with international quality standards and regulations, and undergo strict quality control and testing to ensure their performance and reliability.
- If you find product quality problems under normal use conditions, please contact us within the contractual warranty period, we will actively deal with it and provide solutions.

3. Problem solving:
- If you encounter any problems or have any complaints during the after-sales service, please contact our customer service team in time.
- We will be happy to provide you with support and actively seek solutions to your problems to ensure your satisfaction and good cooperative relationship.

Our Advantages

◆ Over 10 years of li-polymer battery manufacture & export experience
◆ Professional R&D team supporting
◆ Excellent quality, advanced equipment and competitive prices
◆ Good package, cheap freight cost, faster delivery, best after-sales service
◆ OEM / ODM are welcome, we can customize different size to meet customer's requirements
Long life cycle of charging & discharging

The size of lithium polymer battery can be customized. We have advantage making special Li-Po battery such as extremely thin Li-Po battery , curved battery, high temperature Li-Po battery, low temperature Li-Po battery, fast charge Li-Po battery, high discharge Li-Po battery...we have over 4000 models for you to choose.

***Please contact us to get more detailed information and free samples***

3.85V High Voltage Lithium Polymer Battery 1530mAh 713540 For Medical Devices
