300kg Benchtop X Ray Machine High Accuracy Inspection For Die Casting
300kg Benchtop X Ray Machine High Accuracy Inspection For Die Casting
Specifications
Brand Name :
UNICOMP
Model Number :
CX3000
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1Set
Price :
can negotiate
Payment Terms :
T/T, L/C
Supply Ability :
30 sets per month
Delivery Time :
30 days
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Name :
Benchtop X Ray Machine
X-ray Coverage :
48mm x 54mm
Tube Voltage :
100KV
Resolution :
208Lp/cm
Size :
750(L)x570(W)x890(H)mm
Max.Loading Size :
200mm x 200mm
Description

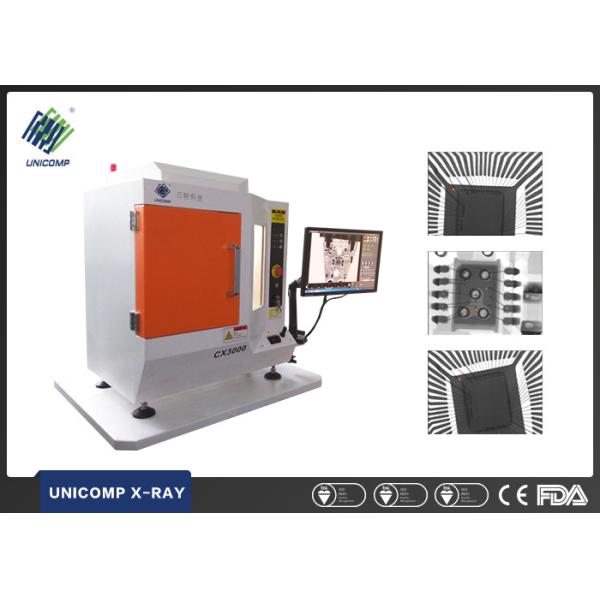

High accuracy inspection Benchtop Electronics PCBA Unicomp X-ray Machine

The X-Ray Inspection System is a full featured high-performance x-ray inspection system with an unbeatable price to performance ratio and includes all of the advanced features you would expect to find on a much more expensive x-ray inspection system.


Item Definition Specs
System Parameters Size 750(L)x570(W)x890(H)mm
Weight 300kg
Power 220AC/50Hz
Power Consumption 0.5kW
X-ray Tube Type Closed
Max.Voltage 100kV
Max.Power 200μA
Spot Size 5μm
Detector Intensifier FPD
X-ray Coverage 48mm x 54mm
Resolution 208Lp/cm
Work Station Max.Loading Size 200mm x 200mm
Max.Inspection Area 200mm x 200mm
Oblique Angle Views 360° rotary fixture (Optional)
X-ray Leakage <1μSv/h



X-ray inspection system has been widely applied to Circuit Board Inspection, Semi-Conductor Inspection and Other Applications.

1. Semiconductor package

2. Electronic connector module

3. Die Casting

4. Cars

5. Battery

6. LED

7. PCB'A

8.Other application(BGA Inspection BGA, Semiconductor, Inspection of over molded electrical connectors, Encapsulated components, Aluminum die castings, Molded plastic components , Ceramics, Aerospace components, Electrical / mechanical components, Pharmaceuticals, Automotive assemblies, Agriculture (Seed inspection)



OUR SERVICE

1.Your inquiry will be replied in 12 hours.

2.Original Manufacture to customers, with competitive price.

3.We provide one year warranty, free training and whole life technology support.

4.We can arrange the shipment by air, DHL,Fedex, UPS, and by Sea,etc for you, and will give you the tracking NO. after shipment.

5.Well-trained and Professional after-sales service team to support you.

6.Manual will package with machine . It will show you how to use machine step by step.

7.Items are only shipped after payment is received.
