0.8kW 5um FDA Electronics X Ray Machine For SMT BGA Soldering
0.8kW 5um FDA Electronics X Ray Machine For SMT BGA Soldering
Specifications
Brand Name :
UNICOMP
Model Number :
AX8200
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1Set
Price :
can negotiate
Payment Terms :
T/T, L/C
Supply Ability :
300 sets per month
Delivery Time :
30 days
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Tube Voltage :
100KV
Industry :
Electronics Industry
Size :
1080(L)x1180(W)x1730(H)mm
X-ray Leakage :
< 1uSv/h
Weight :
1150kg
Power Consumption :
0.8kW
Description

X-Ray Inspection Machine Electronics BGA Standard Multifunction

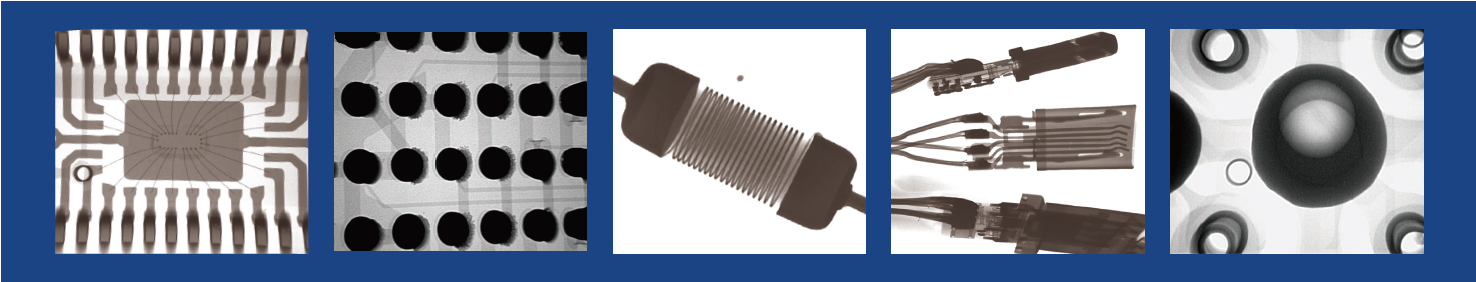

Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, etc.

Applications:
BGA , CSP , LED , Flip Chip , Semiconductor,
Battery Industry , Small Metal Casting,
Electronic Connector Module,
Aerospace Components , Photovoltaic Industry,
Other Special Industries.

System Summary
Footprint1080(W)×1180(D)×1730(H)mm
Machine Weight1050 kg
Power SupplyAC 110~220V, 50/60Hz
Plywood Packing Size146(W)×128(D)×196(H)cm
Packing Weight1160 kg
Power Consumption1.0 kW
X-Ray Tube
Tube TypeSealed
Max. Power8W
Voltage0~90kV (Adjustable)
Focus Spot Size5μm
Imaging System
DetectorFlat Panel Detector (option 4’’ i.i. Detector)
Pixel Size85μm
Effective Detection Area130*130mm
Frame Rates20fps
Pixel Matrix1536*1536
System Magnification600X
Software
Auto-measuringBGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring ToolsSupport Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC ModeCNC Programmable Inspection, Easy Operation and User Friendly
Real-time DisplayReal-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
NavigationLaser Locator for Precise Location
Motion Control System
Movement ControlJoystick, Keypad & Mouse
Max. Loading Area/Weight510*420mm / 10kg
Max. Inspection Area435*385mm
Oblique ViewsMax. ±60°
Manipulator5-axis with X / Y / Z1 / Z2 / T
Industrial PC
Monitor22’’ FHD LCD Display
System OSWindows 10 64bit
Hard disk1TB
RAM8GB
CPU modelIntel i7 Processor
Other Features
Energy SavingX-Ray Auto-off when it's out of work over than 5 minutes
Safety OperationElectromagnetic Interlock and warning Light
Portable DesignMounted with Wheels on Machine Bottom
X-Ray Safety<1μSv/h (Meets All International Standards)
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
