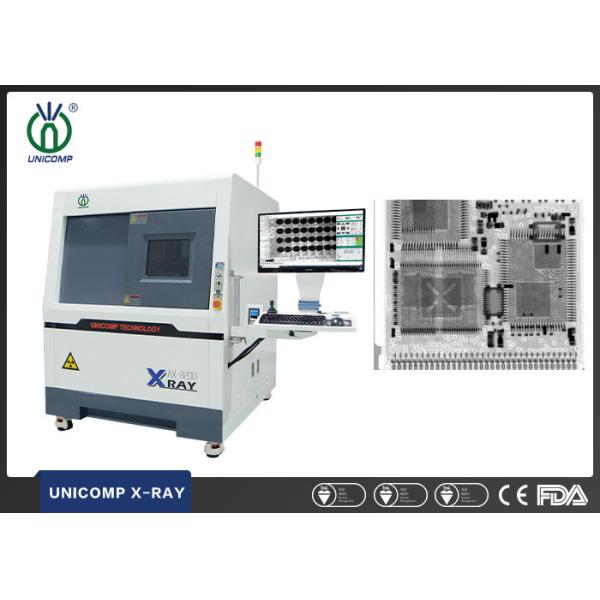

90kV maintanence free closed tube SMT X-Ray machine Unicomp AX8200MAX for BGA LED soldering voids measurement
90kV maintanence free closed tube SMT X-Ray machine Unicomp AX8200MAX for BGA LED soldering voids measurement
Specifications
Brand Name :
Unicomp
Model Number :
AX8200MAX
Place of Origin :
China
MOQ :
1 PCS
Payment Terms :
T/T, L/C
Delivery Time :
30 work days
Certification :
CE, FDA
Price :
can negotiate
Supply Ability :
300 pcs per month
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Tube Voltage :
0~90kV (Adjustable)
Tube Type :
Sealed
Focus Spot Size :
5μm
Detector :
Flat Panel Detector (FPD)
Packing Weight :
1500 Kg
Power Supply :
AC 110~220V, 50/60Hz
Description

90kV maintanence free closed tube SMT X-Ray machine Unicomp AX8200MAX for BGA LED soldering voids measurement

Specification Of SMT X-Ray machine Unicomp AX8200MAX

System Summary
Footprint 1280(W)×1500(D)×1705(H)mm
Machine Weight 1400 kg
Power Supply AC 110~220V, 50/60Hz
Plywood Packing Size 175(W)×155(D)×200(H)cm
Packing Weight 1500 kg
Power Consumption 1.0 kW
X-Ray Tube
Tube Type Sealed
Max. Power 8W
Voltage 0~90kV (Adjustable)
Focus Spot Size 5μm
Imaging System
Detector Flat Panel Detector (FPD)
Pixel Size 85μm
Effective Detection Area 130*130mm
Frame Rates 20fps
Pixel Matrix 1536*1536
System Magnification 600X
Software
Auto-measuring BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation Convenient Target Point Positioning System
Motion Control System
Movement Control Joystick, Keypad, Mouse &Touch Panel
Max. Loading Area/Weight 610*610mm / 10kg
Max. Inspection Area 550*550mm
Oblique Views Max. 60°
Manipulator 6-axis with X / Y / Z1 / Z2 / T1 / T2
Industrial PC
Monitor 24’’ FHD Interactive Touch LCD Display
System OS Windows 10 64bit
Hard disk 1TB
RAM 8GB
CPU model Intel i7 Processor
Other Features
Door Open Electric Sliding
X-Ray Safety <1μSv/h (Meets All International Standards)
Authority Management Fingerprint Access Magnagement System, and Support Password Accessing.
Safety Operation Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor
* Specifications are subject to change without notice, All trademarks are the property of the system maker.

Application Fields of SMT X-Ray machine Unicomp AX8200MAX

BGA , CSP , LED , Flip Chip , Semiconductor, Battery Industry , Small Metal Casting, Electronic Connector Module, Aerospace Components , Photovoltaic Industry, Other Special Industries.

Function & Features of X-ray machie

1. Large Size Inspection Table Laser Locator for Precise Location

2. 24’’ FHD Interactive Touch LCD Display

3. Accurate Control, CNC Programming Automatic Positioning

4. FPD 60° Tilting Inspection

5. Fingerprint Access Management System

6. Real-time Monitoring of Radiation

Inspection Images of SMT X-Ray machine Unicomp AX8200MAX

Footprint of SMT X-Ray machine Unicomp AX8200MAX

Our Services

Help customer analyze product project and provide detection solution.

Freely sample detection test.

Provide professional detection solution.

Skilled jig design services.

Provide shipping/delivery information checking service.

One year guarantee, all life maintain promise.

24 hours feedback speed by email of others.

FAQ:

1. How about the package? Is it safe during the delivery?

All X-ray inspection machine is packed by standard strong wooden carton.It is safe when shipping.

2. Do you provide the Warranty? How about the after sales service?

1 year warranty free for spare parts, Whole life technicial support.

We have professional after sales team, if any question, assistant videos are also provided in after-sale service.

3. If we come to your factory, if you will provide the free training?

Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
