EMS SMT PCB Electronics X Ray Machine BGA QFN LED Soldering Void NDT Inspection Equipment
EMS SMT PCB Electronics X Ray Machine BGA QFN LED Soldering Void NDT Inspection Equipment
EMS SMT PCB Electronics X Ray Machine BGA QFN LED Soldering Void NDT Inspection Equipment
EMS SMT PCB Electronics X Ray Machine BGA QFN LED Soldering Void NDT Inspection Equipment
Specifications
Brand Name :
Unicomp
Model Number :
AX8200MAX
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 PCS
Price :
can negotiate
Payment Terms :
T/T, L/C
Supply Ability :
300 pcs per month
Delivery Time :
30 work days
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Tube Voltage :
0~90kV (Adjustable)
Tube Type :
Sealed
Focus Spot Size :
5μm
Detector :
Flat Panel Detector (FPD)
Packing Weight :
1520 Kg
Power Supply :
AC 110/220V, 50/60Hz
Power Consumption :
2.0 kW
X-Ray Safety :
<1μSv/h (Meets All International Standards)
Description

Unicomp EMS, SMT, PCB, Electronics, Semicon X Ray NDT Inspection Machine for BGA, QFN, LED Soldering Void, Wire bonding

Widely applied for BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, etc.

Application Fields of X Ray Machine AX8200Max

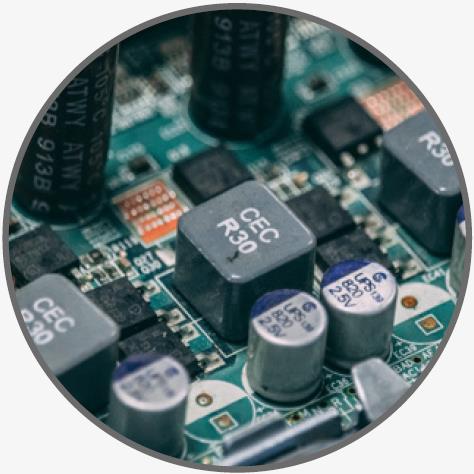

SMT/PCBA

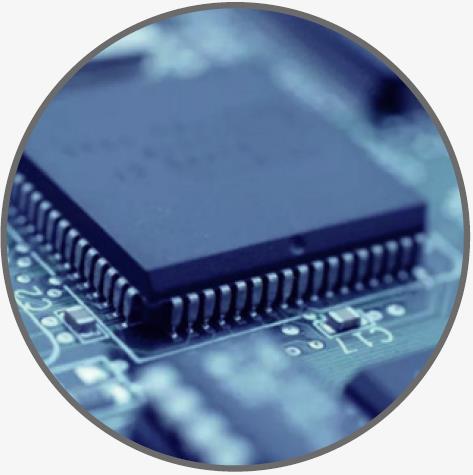

Inspection		 Semiconductor

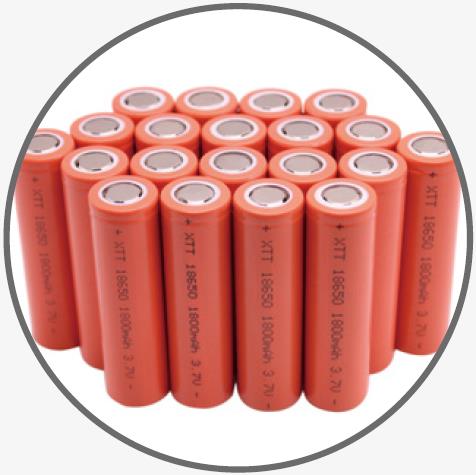

Inspection		 Lithium Batteries

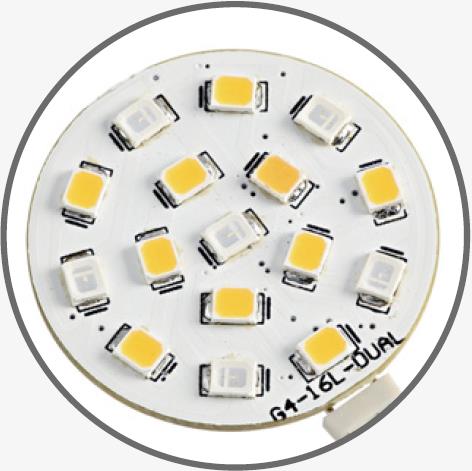

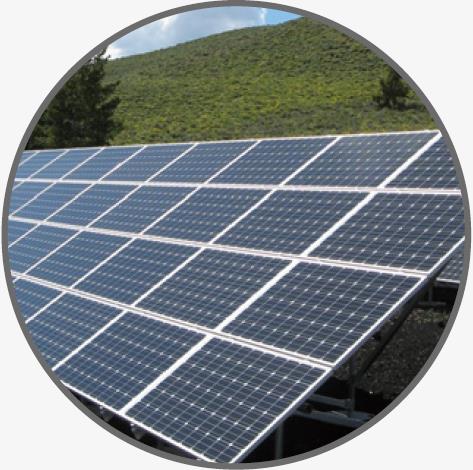

Inspection		 LED Inspection Photovoltaic
Inspection

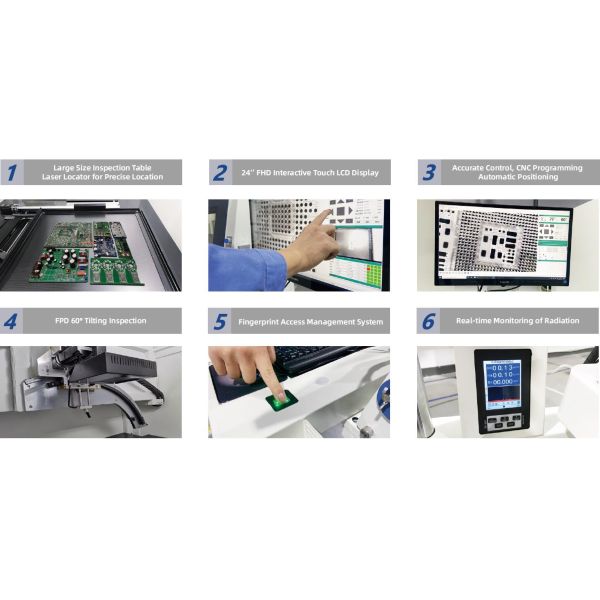

Functions and Features

Technical Parameters and Specifications of X Ray Machine AX8200Max

System Summary
Footprint 1280(W)×1500(D)×1700(H)mm
Machine Weight 1370 kg
Power Supply AC 110/220V, 50/60Hz
Plywood Packing Size 1750(W)×1920(D)×2000(H)mm
Packing Weight 1520 kg
Power Consumption 2.0 kW
X-Ray Tube
Tube Type Sealed
Max. Power 8W
Voltage 0~90kV (Adjustable)
Focus Spot Size 5μm
Imaging System
Detector Flat Panel Detector (FPD)
Pixel Size 85μm
Effective Detection Area 130*130mm
Frame Rates 20fps
Pixel Matrix 1536*1536
System Magnification 600X
Software
Auto-measuring BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation Convenient Target Point Positioning System
Motion Control System
Movement Control Joystick, Keypad, Mouse &Touch Panel
Max. Loading Area/Weight 610*610mm / 10kg
Max. Inspection Area 550*550mm
Oblique Views Max. 60°
Manipulator 6-axis with X / Y / Z1 / Z2 / T1 / T2
Industrial PC
Monitor 24’’ FHD Interactive Touch LCD Display
System OS Windows 10 64bit
Hard disk 1TB
RAM 8GB
CPU model Intel i7 Processor
Other Features
Door Open Electric Sliding
X-Ray Safety <1μSv/h (Meets All International Standards)
Authority Management Fingerprint Access Magnagement System, and Support Password Accessing.
Safety Operation Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor

* Specifications are subject to change without notice, All trademarks are the property of the system maker.

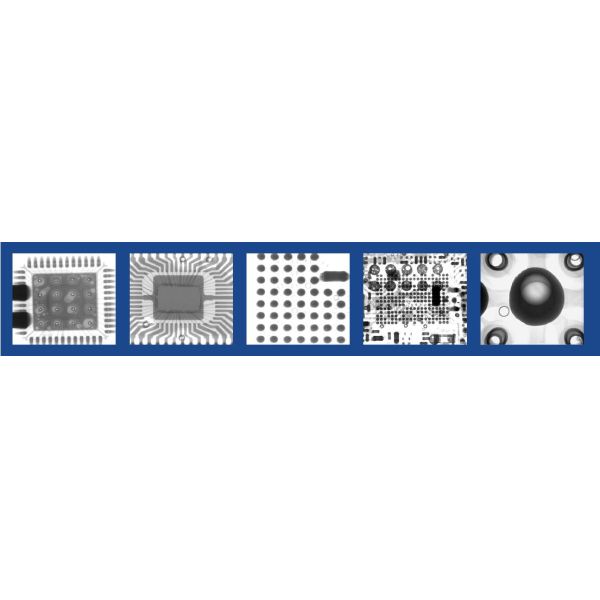

X-Ray Images

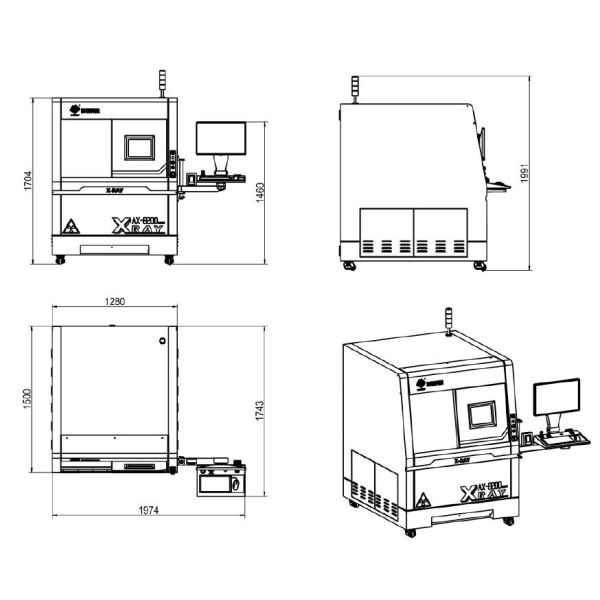

Dimensions and Appearance
