Specifications
Brand Name :
UNICOMP
Model Number :
UNZ-450
Certification :
CE
Place of Origin :
China
MOQ :
1Set
Price :
can negotiate
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Name :
X-ray Inspection Machine
Application :
Aluminum Casting, Iron Casting, Auto Parts, Wheels, Metal Products, Refractory Materials
Tube Voltage :
450KV (160KV, 225KV, 320KV for option)
X-ray Leakage :
< 2.5uSv/h
Weight :
17.5 T
Power Consumption :
10 kW
Description

Casting defects heat sinks, hot tears, cold-flow, drag-marks, missing material and cracks NDT X-Ray Inspection

Application Fields of X Ray Machine UNZ-450

● Engineering components
● Small aluminum castings, iron castings
● Auto parts, metal products

Technical Parameters and Specifications of X Ray Machine UNZ-450

System Parameters
Dimensions 2766mm*2813mm*2598mm(L*W*H)
Equipment weight 17.5T
Power 10 kW
Maximum penetration (FE) 80 mm
Detection range Φ550*200mm
Load weight 30kg
Work environment 5-40° ≤80%HR
Power supply Three-phase five wire system AC380V
X-ray leakage dose rate ≤2.5μSv/h
X-ray Generator
Tube voltage 450KV (160KV, 225KV, 320KV for option)
Power 700W / 1500W
Focal size 0.5mm
Detector (FPD)
Image area 250mm×300mm
Pixel matrix 1792×2176
Pixel pitch 139μm
Frame rate 9fps(1×1) 30 fps(2×2)
Software Function
Image processing brightness and contrast adjustment; stacking frames, window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure;ove, zoom in, zoom out, display image scaling, display the current mouse coordinates and gray values
Image measurement distance, radius, polygon, angle measurement; arrows and text labels; save the image after processing
Motion control the speed adjustment of each moving axis; CNC programming; manual operation;
Additional function
● CNC programmable control, to save the detection time of the bulk of the workpiece
● C type arm five detection mechanism, no dead angle detection
● Servo stepper motor drive, stable operation
● Voltage regulator, isolation, filtering, grounding and other protective functions are complete
● Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis(optional)

* Specifications are subject to change without notice, All trademarks are the property of the system maker.

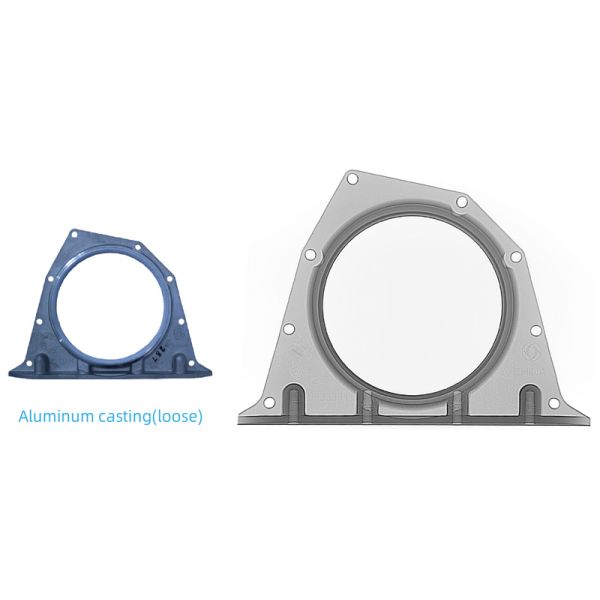

X-Ray Images

Dimensions and Appearance
