Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines
Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines
Specifications
Brand Name :
UNIMETRO
Model Number :
Elegant series
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 per month
Delivery Time :
10 work days
Packaging Details :
Wood case
Price :
Discussible
Resolution :
0.001/0.0001mm
Length standard :
Linear scales
Measuring accuracy :
(3+L/100)um, L is the measuring length, unit:mm
Max. loading :
10KG
Camera :
US TEO Industrial CCD camera
Illumination contour :
High brightness LED illumination
Illumination surface :
Co-axial illumination, LED ring
Description

Optimize Vision Measurement Machine 0.0001 mm Resolution Manual Machine


Features

●High resolution 0.7-4.5 X continuous zooming lens, suitable for the parts measuring of different size.

●Co-axial and constant focusing optical design, users do not need to adjust the focusing after changing the resolution.

●With TEO industrial camera, offer true and clear image.

●Outstanding surface observing effect, suitable for varies of parts measuring.

●Standard 1 um resolution linear scales, 0.5um and 0.1um resolution for option.

●Auto edge detecting function and noise eliminating function included, offering precise measuring.
●Foot switch for option, increasing the measuring efficiency.

●The measuring data is able to output to TXT, WORDS, EXCEL format files, the drawings are able to output to CAD.

●Zero and 1/2 function is available on the front panel, convenient operation.

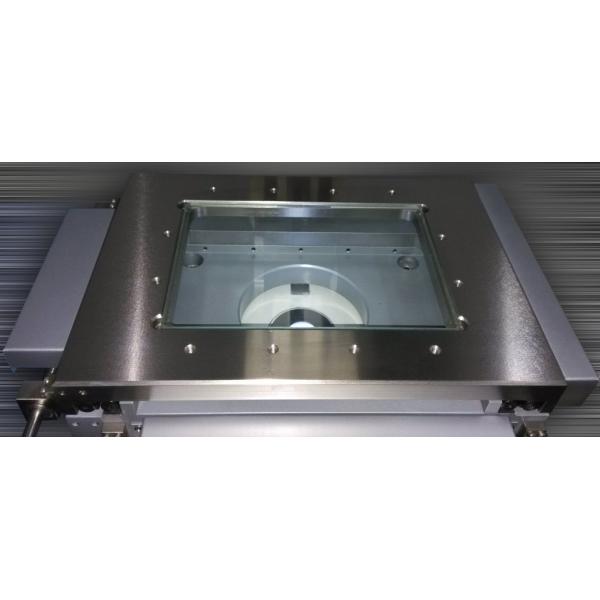

Work stage

Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines

●Rough movement / fine adjusting switchable, increasing the measuring speed.

●The working stage is through the aging process, with the high performance linear guide way, ensures the locating accuracy and repeatablility.

●The surface is using nickel plating surface processing, achieves high rigidity and anti-corrosion.

Parameters

ModelElegant-1010Elegant-2010Elegant-2015Elegant-2515Elegant-3020Elegant-4030
Measuring rangeX100mm200mm200mm250mm300mm400mm
Y100mm100mm150mm150mm200mm300mm
Z150mm150mm150mm150mm150mm150mm
Resolution0.001/0.0001mm
Length standardLinear scales
Measuring accuracy(3+L/100)um, L is the measuring length, unit:mm
Max. loading10KG
CameraUS TEO Industrial CCD cameraa
IlluminationContourHigh brightness LED illumination
IlluminationSurfaceCo-axial illumination, LED ring
Max. working height150mm
Power supply110V - 220V

Company Information

Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines
Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines
Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines
Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines

Our Client&Agent

Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines
Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines
FAQ
Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines Q1: Are you a factory or trading company ?
Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines A1: We are a factory and giving you the quickest reply in 24 hours.
Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines Q2: What's your company mainly in?
Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines Q3: How to Choose the Appropriate Specification?
Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines Q4: Do you accept customized service?
Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines Q5: What is your warranty period?
Optimize Visual Measuring System 0.0001mm Resolution Manual Vision Measuring Machines A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
improved a lot on some breakable parts. You can rest assured of our product quality.
