Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable
Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable
Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable
Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable
Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable
Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable
Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable
Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable
Specifications
Brand Name :
UNIMETRO
Model Number :
Delicate
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
15 working days
Packaging Details :
Wood Case
Price :
Discussible
Camera :
Industrial grade 1/2" color CCD camera
Magnification :
33-195X
Driving System :
Full close-loop CNC control, AC servo motor, 3 axis automatic and programmable, joystick control, keyboard control
Linear scale resolution :
1um / 0.5um / 0.25um / 0.1um for optional
Measuring software :
Rational Vue 3D composite measuring software
Description

3D Composite Vision Measurement Machine Fully-Automatic Programmable

Introduction

● The Delicate series vision measurement machine designed and created by UNIMETRO, is a composite vision measurement machine. It is built based on advanced technology of optics, probing, laser sensor and motion control, which ensures the accuracy, repeatability and motion performance.

● The Delicate series is an outstanding device for accurate inspection, QC, and the production.

● The Delicate series vision measurement machine is a high-quality composite measurement instrument with coordinates measuring and optical vision technology, which is sourced from German structure design.

Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable



Features


Optical 3D Composite Vision Measurement System Gantry Fully Automatic ProgrammableOptical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable

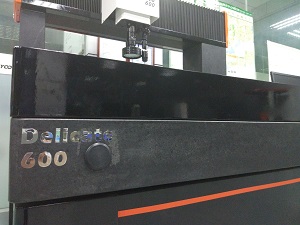

1. 000 grade granite machine base, working table and gantry, to ensure the structure stability of the machine during movement.


2. Close-loop motion control system, coordinated with the high-accuracy hardware , the machine axis positioning can be fast and accurate.


3. Renishaw linear scale embedded,to offer high measuring accuracy and stable performance.

4. Using original Panasonic servo motors to increase the movement speed, ragidity and stability.

Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable

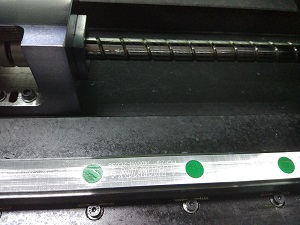

5. High-accuracy linear guideway guarantees the accuracy and stability of the movement.

6. Multiple option for lens or cameras based on customers' requirements, to satisfy different vision measuring requirement.

7. RationalVue 3D composite software available:

Instrument accessories

2D inspection software + 3D inspection software + CAD reversal software + Form analysing software + contour scanning software + SPC statistical software + off-line programming software + tolerance valuation Software.

Optical 3D Composite Vision Measurement System Gantry Fully Automatic Programmable


◆ Open Options

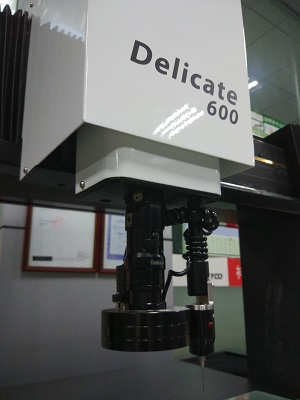

CCD optical lens – Different solution for option based on different measuring objects, in order to gain faster and more stable image based on different measuring requirements.

Touch probe – To achieve 3D measuring

Laser sensors – For height, depth and flatness non-contact measuring

Parameters

Model

Delicate 400 CNC

Delicate 500 CNC

Delicate 600 CNC

Dimension (mm)

1300*1100*1800

1400*1200*1800

1500*1300*1800

Measuring range (mm)

Measuring range (mm)

400

500

600

Y

300

400

500

Z

200

Measuring accuracy (um)

3+L/100

5+L/100

Weight (KG)

1800

2500

3000

Image and Measuring System

Camera

Industrial grade 1/2" color CCD camera

Objective lens

Manual detented zoom lens/Autozoom lens 0.7-4.5X/Navitar lens for optional

Magnification

33-195X

Vision field

8.1-1.3

Working distance

108mm

Measuring resolution

0.001mm

Linear scale resolution

1um / 0.5um / 0.25um / 0.1um for optional

Driving System

Full close-loop CNC control, AC servo motor, 3 axis automatic and programmable, joystick control, keyboard control

Measuring software

Rational Vue 3D composite measuring software

Illumination

Programmable 8 sections ring LED for surface light, 40 sections ring LED for option, LED parallel contour light, co-axial light for option.

Power supply

220V±10%(AC)50Hz, grounding with resistance≦4Ω is required

Working environment

Temperature: 18-24°C, Humidity: 30%-75%, Avoid vibration
