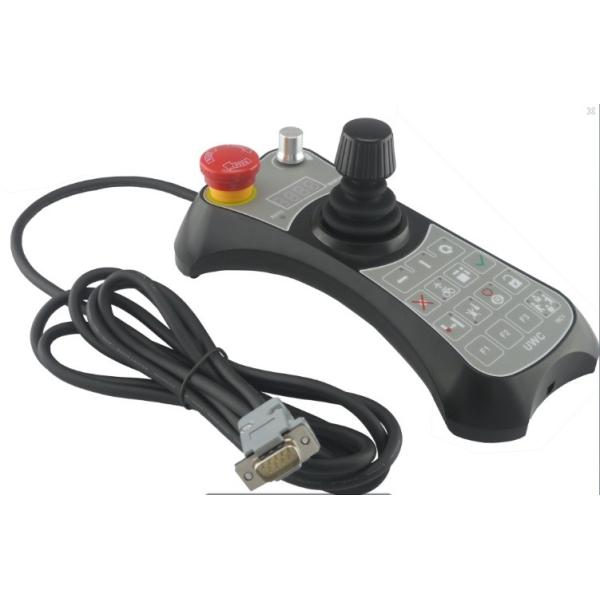

Automatic 3D Coordinate Measuring Machine Axis Movement Controlling Joystick
Automatic 3D Coordinate Measuring Machine Axis Movement Controlling Joystick
Automatic 3D Coordinate Measuring Machine Axis Movement Controlling Joystick
Automatic 3D Coordinate Measuring Machine Axis Movement Controlling Joystick
Specifications
Brand Name :
UWC
Model Number :
HC-1
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
50 per month
Delivery Time :
5 work days
Packaging Details :
Paper case
Price :
Discussible
Working voltage :
12VDC
Working current :
100mA
Port rate :
115200bps
Cable length :
3m
Dimension :
220*104*99mm
Press button :
15
Indicators :
16
Description

Automatic 3D Coordinate Measuring Machine Axis Movement Controlling Joystick

Introduction

1. Designed based on the vision measurement machine and coordinates measurement machine application.
2. Using the non-contact Hall joystick, long life cycle, small range of no-signal area.
3. Using rubber buffering press buttons, reliable and stable.
4. Including 4 magnet and 4 rubber pad at the bottom.
5. All the buttons with switching function is with LED indicator.
6. The emergency stop is with independent wiring, easy for the system wiring.
7. Including 4 “8" type Nixie tube display, the display content is up to the host computer.
8. Using RS232 communication interface, driver is not required and there is no limitation of the operation system.
9. DLL (Dynamic Link Library) is offered, able to be used on VB, VC, C#, labview or BCB etc.

Specification

Item

Value

Unit
Working voltage

12

DCV
Working current

100

mA
Port rate

115200

bps
Cable length

3

M
Dimension

220*104*99

mm
Press button

15

pc
Indicators

16

pc
Nixie tube

4

pc
Joystick life cycle

>3 million

Times
Press button life cycle

>2 million

Times
