One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
Specifications
Brand Name :
UNIMETRO
Model Number :
AVANT 100
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Price :
Discussible
Payment Terms :
T/T
Supply Ability :
10 per month
Delivery Time :
10 work days
Packaging Details :
Wooden Case
Product Name :
Large FOV Video Measurement System
Camera :
2000W HD color digital camera
Light receiving lens :
Single / double telecentric lens
FOV :
83*63mm
Repeatability :
3um
Accuracy :
3um
Resolution :
0.1um
Dimension :
240*415*770mm
Description

Factory Price Large FOV Video Measurement System Fast Measuring

Descrition

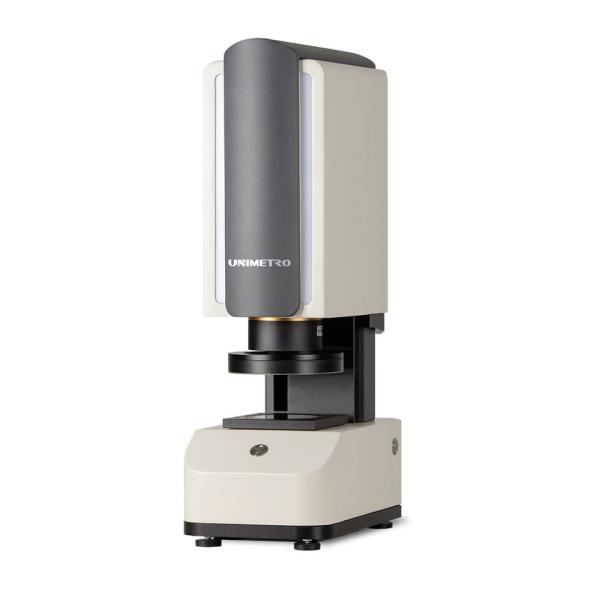

AVANT 100 Large FOV Video Measurement System
A100 Large FOV Video Measurement System is a new image measurement technology of UNIMETRO. It is different from the traditional 2D Video Measurement System in that it no longer needs the grating ruler displacement sensor as the accuracy standard, nor does it need to enlarge the product image through the lens with large focal length to ensure the measurement accuracy.
The structure of the fuselage is simple. It does not need the grating ruler of displacement sensor. It only needs the telecentric zoom lens with large viewing angle and large depth of field, high pixel CCD camera and powerful background software.
Through the double telecentric optical lens with large viewing angle and large depth of field, using high-speed digital processing function, combined with high-precision image analysis algorithm, it can complete the evaluation of dimensional tolerance at the same time with only one key. It is widely used in machinery, electronics, mold, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, terminals, mobile phones, household appliances, printed circuit boards, medical equipment, watches, knives and other fields

One Touch Fast High Resolution Industrial Camera Visual Inspection Machine

Features

◆ Solve the problem of traditional measuring instruments:
Traditional size measuring instruments, such as projector, tool microscope, image measuring instrument,contour measuring instrument, vernier caliper, etc., may face the problems of high operation difficulty, complex focusing process, time consuming of moving coordinate table, human error, long batch measurement time, and complicated data statistics management.
Fast and efficient:
● Products can be placed on the workbench at will, without additional fixture to fix and position.
● Rapid measurement, up to 512 parts can be measured at the same time.
● Make batch measurement more efficient, and batch measurement can be carried out quickly and accurately
in CNC mode.
Accurate and consistent:
● With one click, anyone can easily obtain accurate and consistent measurement results.
● Software auto focus, no deviation caused by focus adjustment.
● Automatic identification of the measurement position, each time can obtain a unified and stable
measurement results.
Easy and simple:
● Anyone can get started quickly, saving the time of manual training and improving work efficiency.
● Simple operation interface, the operator can quickly find the corresponding function and measure.
● Virtual lines and virtual points can be created to meet more measurement requirements.
1.Import template: support DXF format.
2.Placement of workpiece: no need to position, arbitrary placement.
3.One click measurement: press the button or hit the space bar.
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
Large FOV Video Measurement System Application
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine

Company Information
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine

Our Client&Agent

One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine
FAQ
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine Q1: Are you a factory or trading company ?
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine A1: We are a factory and giving you the quickest reply in 24 hours.
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine Q2: What's your company mainly in?
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine Q3: How to Choose the Appropriate Specification?
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine Q4: Do you accept customized service?
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine Q5: What is your warranty period?
One Touch Fast High Resolution Industrial Camera Visual Inspection Machine A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
improved a lot on some breakable parts. You can rest assured of our product quality.
