Unique Piling New Condition RockTec RT80 Drilling Buckets With Torque 80
Unique Piling New Condition RockTec RT80 Drilling Buckets With Torque 80
Unique Piling New Condition RockTec RT80 Drilling Buckets With Torque 80
Unique Piling New Condition RockTec RT80 Drilling Buckets With Torque 80
Specifications
Brand Name :
RockTec
Model Number :
RT80
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100 Unit/Units per Year
Delivery Time :
In Stock or 50-60 Days Around
Packaging Details :
Standard for RockTec Official Manufacturer RT80 mobile rotary drilling rig.
Brand :
RockTec
Max.drilling Depth :
24m
Max.drilling Diameter :
1200mm
Engine Model :
Weichai WP4.1
Moving Type :
Crawler
Weight :
26000kg
Applicable Industries :
Construction works
Warranty :
1 Year
After-sales service provided :
Video technical support, Online support
Condition :
New,100%new
Dimension(L*W*H) :
11130x2600x3000
Engine Speed(kw/rpm) :
103/2000
Type :
Rotary Drilling Rig
Description

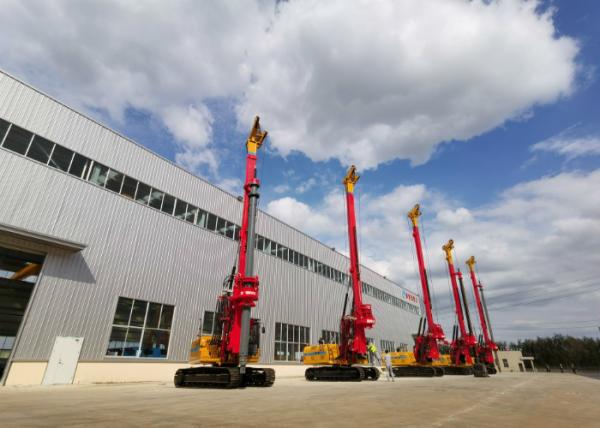

RockTec RT80 Rotary Drilling Rig

1, It adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing toprovide extraordinary stability and transport convenience.
2, It adopts the Cummins electric control turbo-supercharged engine to provide strong power.
3, With the hydraulic pressure system adopted threshold power control and negative flow control, the system acquired high efficiency and higher energy conservation.
4, Using single rope winding, effectively solve the steel wire rope wear problem; improve the life of the wire rope; and drill deep detection device is setted in main winding, single rope ro make deep inspection more accurate.
5, The optional centralized lubrication system, maintenance more convenient.
6, Several drilling rod configurations with different specification are available for efficient construction on different layers.
7, The detachable unit head drive key can provide easy maintenance and replacement.

Unique Piling New Condition RockTec RT80 Drilling Buckets With Torque 80

Unique Piling New Condition RockTec RT80 Drilling Buckets With Torque 80Unique Piling New Condition RockTec RT80 Drilling Buckets With Torque 80

Model RT80 Rotary Drilling Rig

Power System

 Engine Type Weichai WP4.1
Engine Speed (kw/rpm)

103/2000

Hydraulic System

 Main Pump Kawasaki
Main Valve Italy
Rotary Valve Assembly Korea SUNJIN
Walking assembly PMP/Italy
Main winch Motor German Rexroth/Shanghai Electric
Vice winch Assembly Korea KYG
Power Head Reducer Fuller
Power Head Motor Model Shanghai Electric
Central Rotary Joint MCN6-18HT

Other configuration

 With kelly bar ( √) yes ( ) no
With Air Conditioner ( √) yes ( ) no
Main winch wire rope 20mm
Vice winch wire rope 16mm
Kelly bar type 299-4×7m
Other
Max.Drilling Dia. 1200mm
Max.Drilling Depth 24m

RockTec Intelligent Technology(YangZhou) Co.,Ltd.

RockTec Intelligent Technology(YangZhou) Co.,Ltd is Invested and holded 50% of subsidiaries by

Changsha Unique Machinery Co,Ltd. It is one high-tech enterprise integrating design, production and

sales of construction machinery and its supporting equipment into a whole. Main products of the

company include: RT80,RT120,RT150,RT180 model rotary drilling rigs, the rotary head used for the

rotary drilling rig, the continuous wall power head, the rotary head of the torque rise device, the positive

and reverse circulation drilling rig of the automatic connecting rod, the kelly bar, the swivel, upper and

lower frames, customized engineering machinery supporting products; and the product overhaul and parts

replacement and other services can be provided according to customer’s requirements and our technologies.

RockTec brand drilling rigs have been working for many well-known engineering projects in China and

abroad. The rotary heads match for Sany, XCMG, ZOOMLION,SUNWARD, YUTONG, CHTC JOVE,

SOILMEC, IMT etc domestic and foreign brand rigs.

Unique Piling New Condition RockTec RT80 Drilling Buckets With Torque 80

FAQ

1.Are you original manufacture?

Yes, we RockTec are an official leading manufacture in construction machinery in China and we have the whole series products you need.

2.What kind terms of payment can be accepted?

A: Normally we can work on T/T term or L/C term.

3.Which incoterms 2010 terms can we work?

A: Normally we can work on FOB, CFR, CIF.

4.What about the delivery time?

A: 7-30 days after receiving the deposit.

5.What about the warranty time?

A: 12 months after shipment or 2000 working hours.

6.What about the minimum order quantity?

A: the MOQ is 1 pcs.
