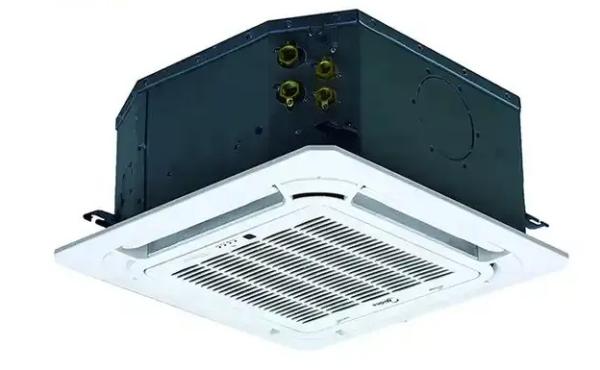

360 Degree Compact Four Way FCU Fan Coil Unit Cassette Chilled Water Heating System 300 To 500CFM
360 Degree Compact Four Way FCU Fan Coil Unit Cassette Chilled Water Heating System 300 To 500CFM
360 Degree Compact Four Way FCU Fan Coil Unit Cassette Chilled Water Heating System 300 To 500CFM
360 Degree Compact Four Way FCU Fan Coil Unit Cassette Chilled Water Heating System 300 To 500CFM
Specifications
Air Flow :
300-500 CFM
Number Of Fan Speeds :
3
Fluid :
Chilled Water/hot Water
Aluminum Fins :
Hydrophilic Aluminum Fins
Coil Type :
Copper Tube And Aluminum Fin
Control Method :
Remote Control
Operating Voltage :
220V/1ph
Place of Origin :
China
Brand Name :
Hongtai HVAC
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Standard
Delivery Time :
Negotiable
Payment Terms :
TT
Supply Ability :
Negotiable
Description

360°Air Supply Panel Compact Four Way Cassette Chilled Water Fan Coil Unit 300 to 500 CFM

Product Description:

Our FCU comes equipped with a ZG3/4’ water connection, allowing for easy installation and maintenance. The unit also boasts three fan speeds, providing flexibility and control in adjusting the air flow to suit your specific needs.

Our Chilled Water Fan Coil Unit is suitable for both 2-pipe and 4-pipe systems, making it highly versatile and adaptable to different setups. It can be used with both hot and chilled water, providing both heating and cooling solutions, depending on your requirements.

One of the standout features of our FCU is its coil type - copper tube and aluminum fin. This combination ensures efficient heat transfer, ensuring that your space is heated or cooled quickly and effectively. The use of high-quality materials also ensures durability and longevity, making it a cost-effective solution in the long run.

For added convenience, our FCU also comes with an optional return air plenum, which can be easily installed for improved air circulation and better air quality. This ensures that your space is always comfortable and healthy, as it helps to filter out dust, allergens, and other harmful particles.

In conclusion, our Chilled Water Fan Coil Unit is a top-performing product that is suitable for both residential and commercial spaces. Its versatile design, efficient technology, and user-friendly features make it an excellent choice for those looking for a high-quality heating and cooling solution. Invest in our FCU today and enjoy a comfortable and efficient environment all year round!

Features:

1. 360 ° Airflow

360° air outlets of the Compact Four-way Cassette provide strong airflow circulation to cool or heat every corner of a room and evenly control temperature.
2. High-lift Drain Pump
A drain pump with a 500mm pump head is fitted as standard, simplifying installation of the drain piping.
3. Fresh Air Intake
A reserved outside air intake port allows outdoor air to be induced directly into the unit, negating the need for a separate ventilation system.
4. Auto restart
In the event of a sudden power failure during operation, unit restarts automatically and the unit will operate based on the previous setting (operating mode, temperature setting and fan speed).
5. Compact design
The height of models 300 to 500 is just 261mm, making the Compact Four-way Cassette ideal for standard ceilings.

Technical Parameters:

Aluminum Fins Hydrophilic Aluminum Fins
Number Of Fan Speeds 3
Coil Type Copper Tube And Aluminum Fin
Water Connection ZG3/4’
Air Flow 300-500 CFM
Operating Voltage 220V/1ph
Control Method Remote Control
Fluid Chilled Water/hot Water
