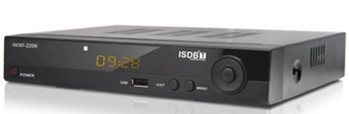

DVB-S2 TV Receiver Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.2
DVB-S2 TV Receiver Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.2
Specifications
Place of Origin :
china
Certification :
CE ROHS
Model Number :
ISDB-T U2205
Description

Features 　 　 　 　 　 　
1. Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant Audio Decoding 　
2. Compatible with 576i/576p/720p/1080i video formats Standard: ISO/IEC 13818-3 　
3. Auto and manually scan all available TV and radio channels Decoding: MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC, MP3
4. Aspect ratio 16:9 and 4:3, 1000 channels memory, parental control Output mode: R/L, Coaxial, HDMI 　
5.HDMI, YPbPr, RCA, coaxial output Sampling frequency: 32, 44.1, 48KHz 　
6. Teletext/ Bit Map subtitle, compliant with ETS1 　 　
7. Supported 7-Day EPG function, VBI Teletext Display: LED display 　
8. Support 6MHz software setting Processor and Memory 　
9. Auto/Manual Program search, Multi-language supported CPU: Mstar MSD7816 　
10. USB 2.0 for PVR, Software upgrade, Multimeida Playback Frequency: 216 MHz 　
11. Demodulation: QPSK / 16QAM / 64QAM/QPSK or DQPSK;OFDM Reception Channel:: 7CH-68CH SDRAM:512MB 　
12. Digital reception covers VHF & HUF band Flash Memory: 4MB 　
　 　 　
Powerful Multimedia Features AV Output 　
Photo: JPEG,BMP,PNG Video de-emphasis: CCIR REC.405-1, 1080i/1080p
Audio: WMA,MP3,AAC (.wma,.mp3,m4a) Video bandwidth: 5.5 MHz 　
Video: MPEG1,MPEG2,MPEG4,H264,Motion JPEG (.avi,.mpg,.dat,.vob,.div,.mov,.mkv,.mjpeg,.ts,.trp) Video output impedance:75 Ω 　
NTFS,FAT32,FAT16 Video output level: 1.0Vp-p 　
Jpeg/Audio combo playback Audio output: Coaxial, L/R, HDMI 　
Audio output frequency:20Hz ~ 20KHz 　
ISDB-T Tuner(Toshiba) Audio output impedance:Low 　
Input frequency:13-62 Ch(470mHz~806mHz) Audio output level: A 1.0Vrms ± 2dB into 10K 　
Input level:-90 ～ -5dBm 　 　
Bandwidth:6 MHz Hardware Interface 　
Input impedance:50 Ω Indicators: Power, signal lock 　
　 IR Receiver: 38KHz 　
Channel Decoding AV output: YUV, HDMI, Composite Video 　
Wave form: COFDM RF Input: EC-type IEC169-2 Female 　
Demodulation: QPSK,16QAM,64QAM, QPSK or DQPSK Loop Through Out: IEC-type IEC169-24 Male 　
FEC: 1/ 2, 2/3, 3/4, 5/6. 7/8 Automatic USB: USB1.1.1- USB2.0 　
Mode: 2K, 4K, 8K Power input Spec.: 90—260V AC 8W max 　
Guard: 1/4, 1/8, 1/16, 1/32 * CE/RoHS/EUP 2010 compliance 　
　 　 　
Demultiplexer 　 　
Standard: ISO/IEC13818-1, MPEG-4HE AAC 　 　
Input Max. bit stream rate: 23.420Mbps 　 　
　 　 　
Video Decoding 　 　
Standard: ISO/IEC 13818-2, MPEG-2 MP@ML, H.264 　 　
Aspect ratio: 4:3, 16:9 　 　
Video format: PAL / NTSC/ AUTO 　 　
Video resolution: 1080p/1080i/720p/576p/576i(PAL),1080i/720p/480p/480i(NTSC) 　 　
　
　 　 　 　 　
Audio Decoding 　
Standard: ISO/IEC 13818-3 　
Decoding: MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC, MP3
Output mode: R/L, Coaxial, HDMI 　
Sampling frequency: 32, 44.1, 48KHz 　
　 　
Display: LED display 　
Processor and Memory 　
CPU: Mstar MSD7816 　
Frequency: 216 MHz 　
SDRAM:512MB 　
Flash Memory: 4MB 　
　 　
AV Output 　
Video de-emphasis: CCIR REC.405-1, 1080i/1080p
Video bandwidth: 5.5 MHz 　
Video output impedance:75 Ω 　
Video output level: 1.0Vp-p 　
Audio output: Coaxial, L/R, HDMI 　
Audio output frequency:20Hz ~ 20KHz 　
Audio output impedance:Low 　
Audio output level: A 1.0Vrms ± 2dB into 10K 　
　 　
Hardware Interface 　
Indicators: Power, signal lock 　
IR Receiver: 38KHz 　
AV output: YUV, HDMI, Composite Video 　
RF Input: EC-type IEC169-2 Female 　
Loop Through Out: IEC-type IEC169-24 Male 　
USB: USB1.1.1- USB2.0 　
Power input Spec.: 90—260V AC 8W max 　
* CE/RoHS/EUP 2010 compliance 　
　 　
　 　 　 　 　 　
Packing(220x38×160mm): 　 　 　 　 　 　 　
Export carton details 　 　
Packaging 1
Gift Box
　
Qty per export carton 6 Pieces 　
Gift box meas.: 220x170x38 MM 　
Meas. per export carton 605*295*393 MM 　
G.W: 11.5 Kgs 　
N.W: 10.5 Kgs 　
Qty. per 20' container 6,000 Pieces 　
Qty. per 40' container
12,000
Pieces
　
Qty. per 40' HQ container 13,400 Pieces 　
Accessories Remote Control, User Manual,RCA cable
User manual English(support other languages as requested)
　
　 　 　 　
