Environmental Salt Spray Test Chamber with Digital Display / Time Controller
Environmental Salt Spray Test Chamber with Digital Display / Time Controller
Specifications
Brand Name :
Pride
Model Number :
ST108L
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
10-15 work days
Packaging Details :
wooden case
Testing Temperature :
NSS ACSS 35℃±1℃/ CASS 50℃±1℃
Air Temperature :
NSS ACSS47℃±1℃/CASS 63℃±1℃
Accuracy of Temperature :
±1℃
PH Value :
NSS ACSS:6.5~7.2 / CASS:3.0~3.2
Supply Power :
AC220V/50Hz AC110V/60Hz 1Φ20A
Saline Box Capacity :
15L
Description

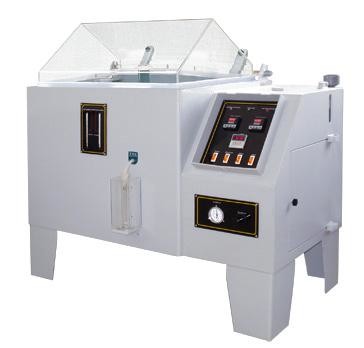

Environmental Salt Spray Test Chamber with Digital Display / Time Controller

● Digital Display Time Controller 9.9S-9990HR ANLY AH5R.
● Refilling water automatically when water level is insufficient.
● The whole part of the device is made of Excellent PVC sheet and the inside of the device is reinforced by using a special lining material. Hence, it is sturdily made and will not transform forever.
● The test chamber is heated from five directions in order to ensure the temperature difference in the chamber must be kept within±1 Celsius degree.
● Spray nozzle: The nozzle is specially made to enable it to suck up the salt Water and then spray it out in the shape of mist with considerable high speed. When it falls on the surface of the item being tested , the difference of fallen mist must be controlled within±0.3ml per 80 square centimeter H.
● HUNTER PRINCIPLE is used to make the saturated air hot and moist and to keep the humidity in the test chamber required for test.
● Temperature is the pre-requisite condition that will have direct impact on corrosion rate . We use PID temperature control unit to limit the temperature difference within the range of ±1Celsius degree.

International standards: IS09227,ISO7253,ASTMB117,ASTMB368,JIS-D0201

Specifications:

Mode ST108L ST270L ST480L ST800L ST1440L
Inside Dimensions(mm) 600x450x400 900x600x500 1200x850x500 1600x1000x550 2000x1200x600
Outside Dimensions(mm) 1130x630x1070 1460x910x1280 2200x1200x1450 2600x1450x1550 3000x1650x1600
Chamber Volume 108L 270L 480L 800L 1440L
Saline Box Capacity 15L 25L 40L 40L 40L
Testing Temperature NSS ACSS 35℃±1℃/ CASS 50℃±1℃
Air Temperature NSS ACSS47℃±1℃/CASS 63℃±1℃
Accuracy of Temperature ±1℃
PH Value NSS ACSS:6.5~7.2 / CASS:3.0~3.2
Supply Power AC220V/50Hz AC110V/60Hz 1Φ20A AC 220V/50HZ AC110V/60HZ 1Φ30A

Standard Delivery:

Power cable 1PC PVC V-shape bracket 1SET Operation manual 1 COPY
Wet inductive cotton 5 PCS Φ10mm glass rod 1SET 3M soft exhaust pipe 1PC
5M soft inlet and outlet water pipe 1PC 9.5L Salt water mixer 1 PC
