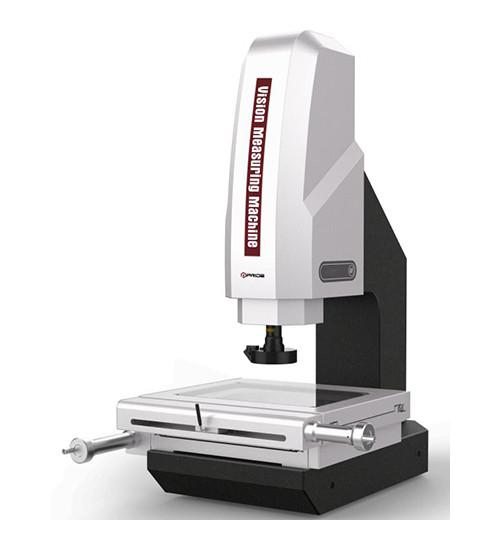

High Accuracy Semiauto Video Measuring Machine  Vision Systems Measuring Machine
High Accuracy Semiauto Video Measuring Machine  Vision Systems Measuring Machine
Specifications
Brand Name :
Pride
Model Number :
VMM-200SE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union, MoneyGram,Paypal ,Payoneer
Delivery Time :
15-20 days
Packaging Details :
Wooden Casses
X/Y/Z-axis Travel :
0.0005mm
Accuracy :
≤(3+L/200)um
Hysterisis Error :
2um
CCD Camera :
High Resolution 700TV Color CCD Camera
Base and Pillar :
High Accuracy Jinan Qing Granite Plate
Measuring Software :
iMeasuring 2.2
Operation System :
Support XP,WIN7,WIN8.1,WIN 10, 32/64 operating system
Description

High Accuracy Semiauto Video Measuring MachineVision Systems Measuring Machine

Features

  • High precision Jinan Qing Granite Plate base and pillar, to ensure high stability and accuracy;
  • High precision toothless rod and fast moving locking device, to ensure hysterisis error is within 2um;
  • High accuracy A grade optical linear scale with precision working stage, to ensure the accuracy is within 3+L/200um;
  • High definitive detented zoom lens and high resolution color digital camera, to ensure clear image without distortion;
  • With programmable surface 4-ring 8-division LED Cold Illumination and contour LED parallel illumination and internal intelligent light adjustment, it can automatic control the brightness in the 4-ring 8-division;
  • Z-axis equipped with high accuracy linear guide and servo motor control system, realize auto focus measurement, and eliminate the human focus error, enhance measurement accuracy and stability;
  • Powerful function iMeasuring2.2 Measuring Software, highly enhance the quality control;
  • Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.

Technical Specification:

Model No. VMM-200SE VMM-250SE VMM-300SE VMM-400SE VMM-500SE
Metal Table 408x308mm 408x308mm 458x358mm 608x470mm 708x470mm
Glass Table 306x198mm 306x198mm 356x248mm 456x348mm 556x348mm
X/Y-axis Travel 200x100mm 250x150mm 300x200mm 400x300mm 500x400mm
Z-axis Travel High-precision linear guide and servo motor control system , working travel 200mm
X/Y/Z-axis Travel 0.0005mm
X/Y-axis Accuracy ≤3+L/200(um)
Hysterisis Error 2um
Base and Pillar High Accuracy Jinan Qing Granite Plate
Illumination System(Software Adjustment)

Surface: Stepless Adjustable 4-ring 8-division LED Cold Illumination,

every division can be adjust independently
Contour: LED Parallel Illumination
LED Laser Navigation Lights
CCD Camera High Resolution 700TV Color CCD Camera
Zoom lens 6.5X High Resolution Detented Zoom Lens
Magnification:0.7X~4.5X；Video Magnification:26X~172X
Working Environment Temperature:20℃±2℃, change range < 2℃/hr
Humidity:30% ~80%RH
Vibration<0.002g,<15Hz
Measuring Software iMeasuring 2.2
Operation System Support XP,WIN7,WIN8.1,WIN 10, 32/64 operating system
Language English, Simplified Chinese, Traditional Chinese, other language versions can be added
Dimension(W*D*H) 790x617x1000mm 790x617x1000mm 838x667x1000mm 1002x817x1043mm 1002x867x1043mm
Net Weight 175Kg 175Kg 185Kg 350Kg 380Kg

Standard Delivery:

Product Name Model No. Product Name Model No.
2.5D Measuring Software PIM2.2 Video Capture Card P527-130
Contour LED Parallel Illumination P425-100 DELL PC System P581-960
Surface 3R/8D LED Illumination P425-130 AV Video Cable P581-940
Laser Positioning System P581-330 RS232 Data Cable P581-930
6.5X Detented Zoom Lens P421-100 Optical Calibration Block P581-800
HD700TVL Color Camera P484-130 Operation Manual /

Optional Accessories:

Product Name Model No. Product Name Model No.
Electronic Zoom Lens P421-140 Rotary Tables RT 2 P581-520
12.5X Detented Zoom Lens P421-100 Rotary Tables RT 3 P581-530
Coaxial Detented Zoom Lens P421-120 Working Cupboard ST 05 P581-650
0.5X Auxiliary Objective P423-050 Swivel Center Support P581-850
2X Auxiliary Objective P423-200 Foot Switch P581-350
