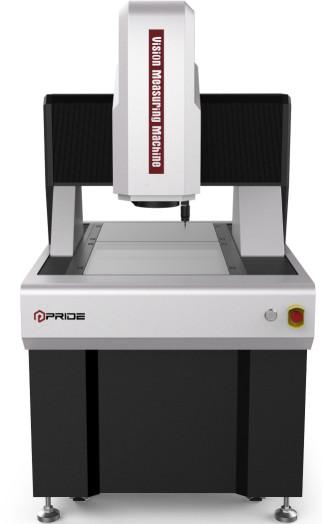

Programmable 5-ring 8-division LED surface illumination Fully Auto Video Measuring Machine

Introduction:

3D full auto vision is equipped to realize 3D Measurement. Four-axis is motorized control and measurement, it is very easy to operate and can meet with widely application for precision industry measurement.

Characteristics:

• Moving gantry structure, measurement workpiece is fixed;
• Four-axis CNC fully auto close loop control, auto measurement;
• “00” grade “JINANQING”Granite Plate base and pillar, stable and reliable;
• Imported open type linear scale, resolution is 0.1um, high accuracy, great stability;
• Imported P grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position;
• Imported high definition color industry camera, ensure clear observation and stable measurement requirement;
• 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;
• Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
• Equipped with imported touch probe, realize 3D measurement;
• With proprietary fully auto measuring software iMeasuring 4.2, powerful function, simple operation;
• Optional laser probe, it can also be customized according to customer request;
• Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.

Technical Specification:

* L is measuring length,unit is mm, the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

**Magnification is approximate value, it is related to the dimension of monitor and resolution.

Customers can choose 0.5X or 2X optional objective, and realize image magnification: 10X~64.5X or 40X~258X.
