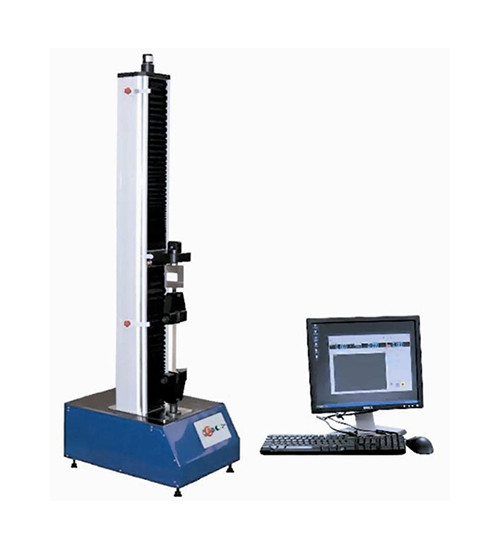

Computer Controlled Universal Testing Machine

Applications:

Universal Testing Machines are designed and manufactured according to

ASTM, ISO, DIN etc standards. It is suitable for wide range of material for

tension,compression, bending, shearing and low cycle test. With special

grips, it can also dotorsion and Brinell hardness tester. It is for metal,

rubber, plastic, spring, textile, and components testing. It is widely used

in the corresponding industries, research and development, test institutes

and training centers etc.

Standards:

Load meets or exceeds the following standards: ASTM E4, ISO75000-1, EN 10002-2,

BS1610, DIN 51221.

Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513,

EN 3846 and EN 1002-4.

Technical specifications may be changed according to customer's requests

Technical specification:

1. Maximum Test load 200kN

2. Measuring range 0-200kN

3. indicating value accuracy of measured load better than ±1% of indicating value

4. Measuring load can be shifted or not

Shift: 0-200kN ,0-100kN,0-40kN,0-20kN

Not shift

5. Load resolution

shift 300000 yards

Non-shift 300000 yards(only one resolutions in full scale, non-shifts between inside and outside, no conflicts exsiting for conversion of travel)

6. Test speed 0.01-250mm/min

7. speed accuracy 0.1mm/min

8. deformation accuracy better than ±1% of indicating value

9. displacement accuracy better than ±1% of indicating value

10. effective width of test 550mm

11. Maximum distance between grips 500mm

12. Maximum distance between platens 1180mm

13. overload protection with multiple protection of overload, travel position limit

15. dimension of load frame 1030mm×800mm×2400mm

16. Power supply AC 3 phases 4 wires 380V

17. Power 4000W

18. weight 1600kg

Standard confirguration:

1. Load frame 1 set

2. Tensile fixture 1 set (Flat grip 0-7,7-14mm all 1 pair; round grip φ4-9, φ9-14 all 1 pair)

3. Compression fixture 1 set

4. 3 point bending fixture 1 set

5. high precision ball lead screw 2 pcs

6. Hight precision column type load cell 1 pc

7. Servo system (Servo motor and servo driver) Japan Panasonic

8. Extensometer 1 pc(Gauge length 50mm,deformation 25mm)

9. Hydraulic clamping oil source system 1 set

10. Reducer Taiwan Luosheng

11. Other components(Standard pieces, connection device, gearing device ) 1 set

12. Measuring & control system 1 set

13. Control system 1 set

14. Manual, automatic control hardware 1 set

15. Auto control software package 1 set

16. Lenovo computer 1 set (Model M4600,17〞CRT),Confriguration:

PDC E21800/1G DDRII/SATA2 160G(7200 R)/SATA DVD/Sound card/Integrated

KiloMega network card /Integrated high performance video card /Keyboard/USB

Photoelectrical mouse/XP HOME /front built 2 USB2.0/Sky application 08A(for XP)

/180W power supply/guarantee for 3 years

17. HP Deskjed A4 Jet printer 1 set

18. connected cable 1 set

19. Data process software package 1 set (running in Windows 98, windows 2000 or

windows XP)

20. Computer desk 1pc
