Specifications
Brand Name :
Pride
Model Number :
METCUT 270
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
10-15 work days
Packaging Details :
strong wooden cases
Cut-off size Max diameter :
300 mm (~12 inch)
Wheel feed :
Yes
Table feed :
Yes
Operation :
Manual
Cooling Unit :
16 gallons (60 liters)
Motor power :
5.5 hp (4 kW)
Description

Manual Abrasive Cutter
Abrasive Cutting Machine Automatic Metallographic Abrasive Cutter Machine Precision Abrasive Cutoff

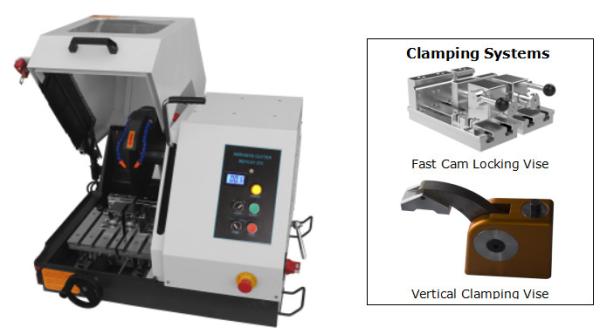

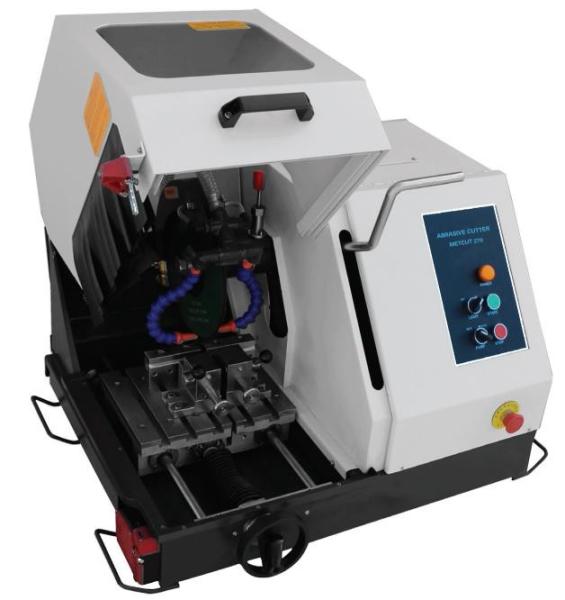

METCUT 270 table feed/chop cut manual abrasive sectioning machine for 300 mm (~12-inch) cut-off wheels, 5.5 HP (4 KW) compact motor, cutting capacity up to 4-inch (112 mm) solid stock, twin T-slotted clamping table, fabricated powder coated protective hood with impact resistant plastic window, 16 gallon (60 liter) recirculating cooling unit with connection hoses and ready for operation. Dimensions (WxDxH) 36" x 34" x 26" (32" with hood open), 90 cm x 86 cm x 65 cm (82 cm with hood open), 352 lbs (160 kg) without tank, 385 lbs (175 kg) with tank. Table dimensions (WxD) 12" x 9" (30 cm x 23 cm), travel distance 10-inches (25 cm). Clamping devices are sold separately. Standard voltage 208Y - 3-phase (optional 380V or 480V 3-phase), 50-60 Hz.

Manual Abrasive Cutter Abrasive Cutting Machine Automatic Metallographic Abrasive Cutter Machine Precision Abrasive C

Specification

Cut-off size

Max diameter 300 mm (~12 inch)

Cutting capacity

Max diameter 4" (100 mm)

Wheel feed

Yes

Table feed

Yes

Table Dimensions

12" x 9" (300 mm x 230 mm)

Operation

Manual

Cooling Unit

16 gallons (60 liters)

Motor power

5.5 hp (4 kW)

Motor speed

50 Hz 2880 rpm
60 Hz 3460 rpm

Dimensions (WxDxH)

35.4 x 34 x 62-inch (900x860x650 mm)

Weight

350 lbs (160 kg)

Electrical Specification

Standard 208Y 3-phase (380V or 480V 3-phase optional), 50/60 Hz
