METCUT 290 manual wheel and table feed abrasive cutting machine Abrasive Cutter Metallographic Equipment sample preparat
METCUT 290 manual wheel and table feed abrasive cutting machine Abrasive Cutter Metallographic Equipment sample preparat
METCUT 290 manual wheel and table feed abrasive cutting machine Abrasive Cutter Metallographic Equipment sample preparat
METCUT 290 manual wheel and table feed abrasive cutting machine Abrasive Cutter Metallographic Equipment sample preparat
Specifications
Brand Name :
Pride
Model Number :
METCUT 290
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
10-15 work days
Packaging Details :
strong wooden case
Cut-off size :
Max diameter 16" (400 mm)
Operation :
Manual
Motor power :
7.5 hp (5.3 KW), 2800 rpm
Cooling Unit :
16 gallons (60 liters)
Wheel feed :
Manual
Weight :
700 lbs (300 kg)
Description

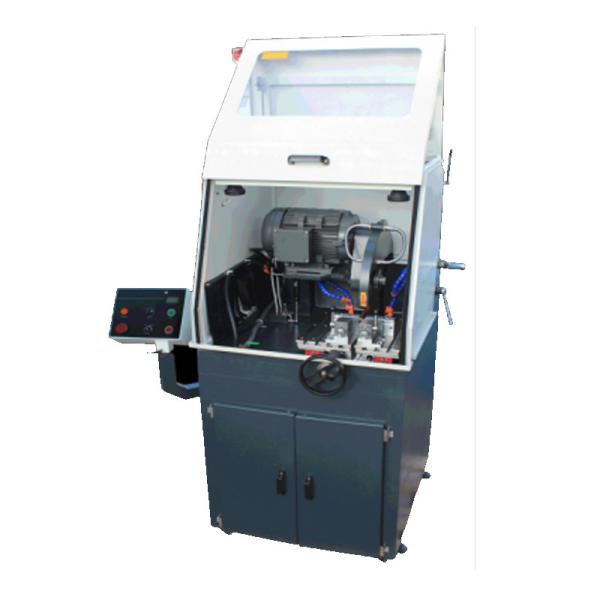

METCUT 290 manual wheel and table feed abrasive cutting machine Abrasive Cutter Metallographic Equipment sample preparation Max.Cutting diameter Ø400mm 5.3KW​

METCUT 290 manual wheel and table feed abrasive cutting machine for 14 (350 mm) or 16-inch (400 mm) abrasive blades. Features 7.5 HP (5.5 KW) 3492 rpm 60 Hz motor, electronic brake system, cutting capacity up to 4.7-inch (120 mm) solid stock, twin T-slotted stainless steel clamping table, bottom chamber constructed of a rugged alloy base casting, fabricated powder coated protective hood with impact resistant plastic window, 16 gallon (60 liter) recirculating cooling unit with connection hoses and integrated base cabinet and ready for operation. Dimensions (WxDxH) 50" x 39" x 63" (83" with hood open), 127 cm x 100 cm x 160 cm (210 cm with hood open), 700 lbs (300 kg). Table dimensions (WxD) 14.6" x 14.2" (37 cm x 36 cm) Clamping devices sold separately. Standard voltage 208Y - 3-phase (optional 380V or 480V 3-phase), 50-60 Hz.

Specification

Cut-off size Max diameter 16" (400 mm)
Cutting capacity Max diameter 6" (150 mm)
Wheel feed Manual
Table feed Yes
T-slotted Table Dimensions 14.5" x 14.2" (370 mm x 360 mm)
Operation Manual
Cooling Unit 16 gallons (60 liters)
Motor power 7.5 hp (5.3 KW), 2800 rpm
Motor speed 208-380V: 2910 rpm 60 Hz
440-480V: 3490 rpm (optional 1600 rpm) 60 Hz)
Electrical Specification Standard 480 3-phase (208Y or 380V 3-phase optional), 50/60 Hz
Dimensions (WxDxH) 50" x 39" x 63" (83" with hood open)
127 cm x 100 cm x 160 cm (210 cm with hood open)
Weight 700 lbs (300 kg)
