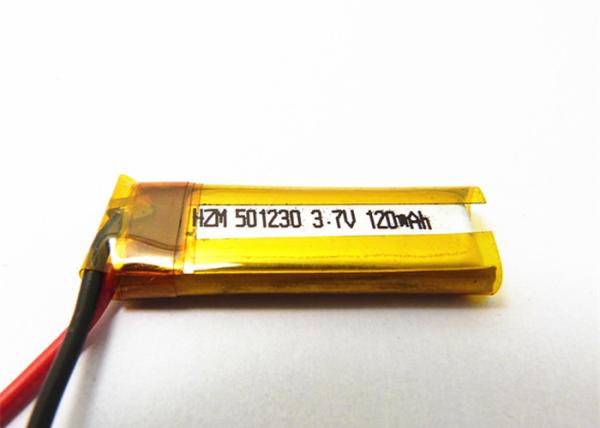

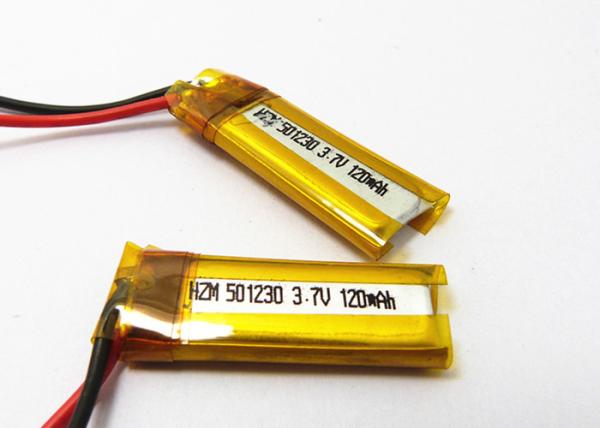

Small 3.7v 501230 120mah Lithium Polymer Battery For Blue Tooth Earphone
Small 3.7v 501230 120mah Lithium Polymer Battery For Blue Tooth Earphone
Small 3.7v 501230 120mah Lithium Polymer Battery For Blue Tooth Earphone
Small 3.7v 501230 120mah Lithium Polymer Battery For Blue Tooth Earphone
Specifications
Brand Name :
HZM
Model Number :
501230
Certification :
MSDS UN38.3 UL
Place of Origin :
China
MOQ :
100 pieces
Price :
$0.29/piece
Payment Terms :
T/T, Western Union,PayPal,Credit card
Supply Ability :
100000 pieces/ week
Delivery Time :
2 work days
Packaging Details :
100 pieces/ box
Name :
501230 120mah Lithium ion Polymer Battery
Weight :
3.2g
Cycle life :
>500 Times
Dimension :
5*12*30mm
OEM&ODM :
YES
Description

Small 3.7v 501230 120mah Lithium ion Polymer Battery For Blue Tooth Earphone

Parameter Table:

Item Rating Note
1 Capacity Typical 120mAh

Discharge:0.2CmA

cut off Voltage:3.0V for cell
Minimum 120mAh
2 Nominal Voltage Average 3.7V

Discharge:0.2CmA

cut off Voltage:3.0V for cell
3 AC Impedance Resistance ≤300mΩ
4 Discharge Cut-off Voltage 3.00V
5 Charge Current 24 mA Standard Charge
6 Charge Voltage 4.2V
7 Max. Charge Voltage 4.23V
8 Storage humidity < 75%RH Hygrometer
9 Max. Charge Current 120mA 1.0CmA
10 Max. Discharge Current 120mA 1.0 CmA
11 Weight Approx 3.20g

12 Operating

Temperature

 Charge 0~+45°C
Discharge -20~+60°C

13 Storage

Temperature

 less than 1 month -20~+45°C

Recommended storage

temperature: 20°C,at the

shipment state
less than 3 months -20~+35°C

Trading detail:

1) Packing:Industrial packing (can be as customer's requirements)

2) MOQ: 1000pcs (Small trial order accepted)

3) Delivery time: Usually 3~15 days after payment

4) Payment term: T/T, Western Union,Paypal

Cells production process:

First from raw materials--drying--Balling--Mixing--Coating--Electrode drying--calendaring-cutting--punching--stacking—tab welding--short circuit checking-pre-package--electrolyte injection--pre-formation--degassing-gas bag cutting--folding--code printing--formation--aging--finished products.

Q. Can you explain in detail how you match cells for a battery pack before you assembling the pack?

A: We will do the following things before assembling the pack:

a. Select capacity, same capacities cells for one pack

b. Measure the voltage, same voltage cells for one pack(difference is under 0.02v per cell)

c. Measure the inner resistance,same IR cells for one pack (difference is under 1m Ohm)

All above steps are very strict to make sure the pack performance is perfect.
