Large Diamond Saw Blades Dimensional Stable Cost Effective High Performance
Large Diamond Saw Blades Dimensional Stable Cost Effective High Performance
Large Diamond Saw Blades Dimensional Stable Cost Effective High Performance
Large Diamond Saw Blades Dimensional Stable Cost Effective High Performance
Large Diamond Saw Blades Dimensional Stable Cost Effective High Performance
Large Diamond Saw Blades Dimensional Stable Cost Effective High Performance
Large Diamond Saw Blades Dimensional Stable Cost Effective High Performance
Large Diamond Saw Blades Dimensional Stable Cost Effective High Performance
Specifications
Brand Name :
HERO
Place of Origin :
Chengdu,China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T
Supply Ability :
2000pcs each month
Delivery Time :
12 work days
Packaging Details :
In paperbox then in carton
Machine :
Panel sizing Machine
Cutting material :
MDF,Chipboard,Artificial stone,HPL
Steel body :
Germany 75 CR1 material
Grinding machine :
Germany Vollmer Machine
Brazing Machine :
Germany Gerling Machine
KERF :
TCG
Coating :
Chrome
Silent lines :
5 lines
Description

Woodworking tools PCD panel sizing saw blade for melamine board panel cutting

Large Diamond Saw Blades Dimensional Stable Cost Effective High Performance

1: Cost-effective polycrystalline diamond,with average 8mm length,can resharp 5 times than normal one.

2: Germany imported 72cr1 steel plate,with chrome coating to improve the fineness and recude the glue sticking

3: 5 silent lines which include the Japanese high temperature sealant fill in the slot

Large Diamond Saw Blades Dimensional Stable Cost Effective High Performance

1: The Diamond saw blade has the superstrong stability and durability

2: Length of PCD raw material 8 mm contain the tenacity and wearing strength,with super high Impact resistance,perfect cutting performance in Solid wood,Multilayer board,MDF

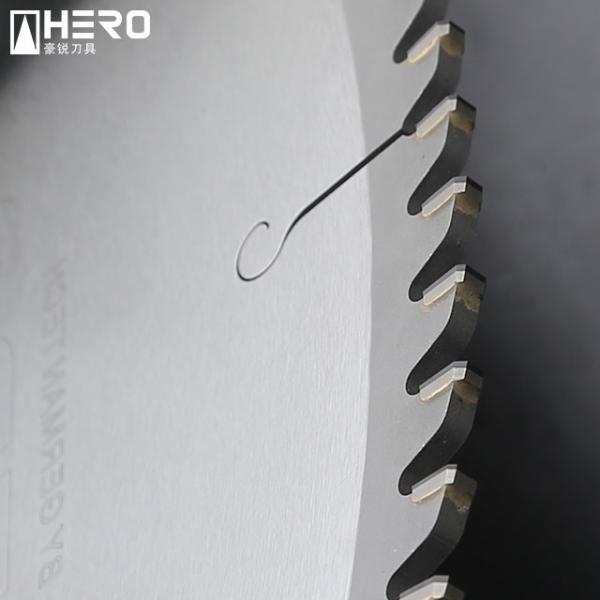

3: Silent line with sealant fill will stable the steel body, eliminate the resonance.

4: Crn coating is rust-proof after long use time,reduce the glue in the wood sticking on the surface of saw blade.

Large Diamond Saw Blades Dimensional Stable Cost Effective High Performance

Processing Material:hard laminated board,anti multiple plate,artificial stone

Machine:Panel sizing saw,like:GIBEN,SCM SCHELLING MAYER,HOMAG etc

Large Diamond Saw Blades Dimensional Stable Cost Effective High Performance

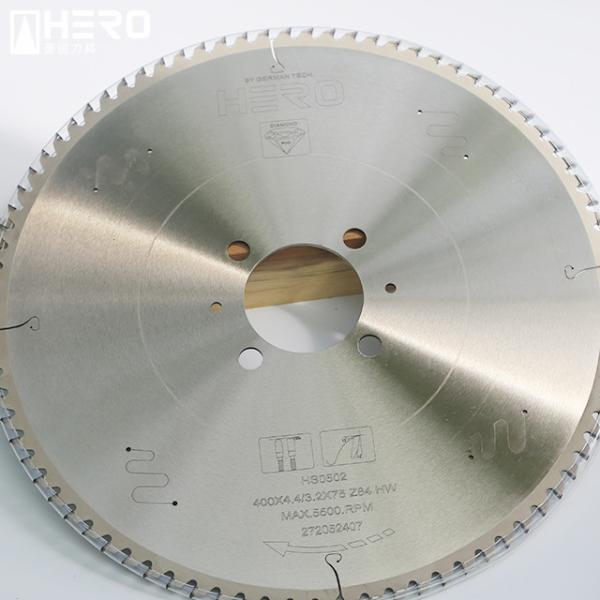

Diameter(mm) Kerf(mm) bore(mm) Teeth number(Z) Teeth shape
350 4.4 30 72 TCG
350 4.4 30 84 TCG
380 4.4 60 72 TCG
380 4.4 60 84 TCG
380 4.4 60 96 TCG
400 4.4 60 72 TCG
400 4.4 60 84 TCG
400 4.4 75 84 TCG
400 4.4 60 96 TCG

Above sizes are regular stock one,customized sizes accepable

Large Diamond Saw Blades Dimensional Stable Cost Effective High Performance

Large Diamond Saw Blades Dimensional Stable Cost Effective High Performance

Large Diamond Saw Blades Dimensional Stable Cost Effective High Performance
