0.5~500mm 5T Computer Container Carton Compression Pressure Testing Equipment 1/250000 Resolution
0.5~500mm 5T Computer Container Carton Compression Pressure Testing Equipment 1/250000 Resolution
Specifications
Brand Name :
Kejian Kinsgeo
Model Number :
KJ-8210
Certification :
ISO,CE and etc
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
100 Sets per Month
Delivery Time :
5-10 working days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Usage Strength :
Compression Testing Machine
Aplication :
Carton Compression
Warranty :
12 Months
Power :
1φ,220V±10% 50Hz
Weight :
550kg
Test speed :
0.01~500mm/min, keyboard inputing
Sliding piece mass :
Sliding piece mass
Resolution :
1/100,000
Description

0.5~500mm 5T Computer Container Carton Compression Pressure Testing Equipment 1/250000 Resolution

Uses:

Mainly used in the various types of secondary normal size corrugated carton compressive strength test or other material made of compressive strength of packaging container FCL compressive strength test and test, such as food and beverage instant noodles packing, cosmetic packaging, beer packing, cereals and oil and so on the packaging. The instrument control accuracy is high, the development of advanced technology, for the present domestic the most cost-effective one universal.

Standards:

TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4

Characteristics:

1. Adopting windows platform, all the parameter settings can be processed in the dialog box, and it

operates easily.

2. radiator pressure tester use a single-screen operation, do not need to switch the screen.

3. With three languges in simplified Chinese, traditional Chinese and English, the software interface

can be switched easily.

4. Choosing translational, overlapping mode at the same time to make sure a number of curve date

comparison.

5. With a variety of measurement units, measure in imperial&metric are switchable.

6. With automatic magnification function, in order to achieve the most appropriate size of the graphics.

7. With an advanced design of machine structure which have strong rigidness and small volume but light

weight.

Test Principles:

Test samples in test enginery two parallel between linking piece, and then even to put pressure on record load and linking piece displacement, until the test sample fracture, or load or linking piece a says to the expected value so far.

Specifications:

Capacity 500kg, 1000kg, 2000kg, 5000kg or customize
Resolution 1/100,000
Correctness of force Better than ±1%
Correctness of distortion reading Better than ±1%
Effectual range of testing force 1~100%F.S
Unit kgf,gf ,N,kN,lbf
Test space 1000×1000mm (can customize)
Space between platen 1000mm (can customize)
Drive System servo system,precision ball screw, DC variable speed drive system
Test speed 0.01~500mm/min, keyboard inputing
Return speed 500mm/min
Power 1φ,220V±10% 50Hz
Stop mode

Set limits of security, urgent stop key, programable force and elongation setting, specimen damage sensing

Safety Device:

Stroke protection, Force and Elongation protection, Emergency stop device, Sensing device when specimen is destroyed.

Software Functions:

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7. With many units of measurement, the metric system and british system can switch;

8. Have automatic calibration function;

9. Have user-defined test method function

10. Have test data arithmetic analysis function

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;

12. Can test tensile, compression, peel, fatigue and so on.

RFQ:

Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent after sale service:

1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.

3.Good Packaging:

Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

Pictures:

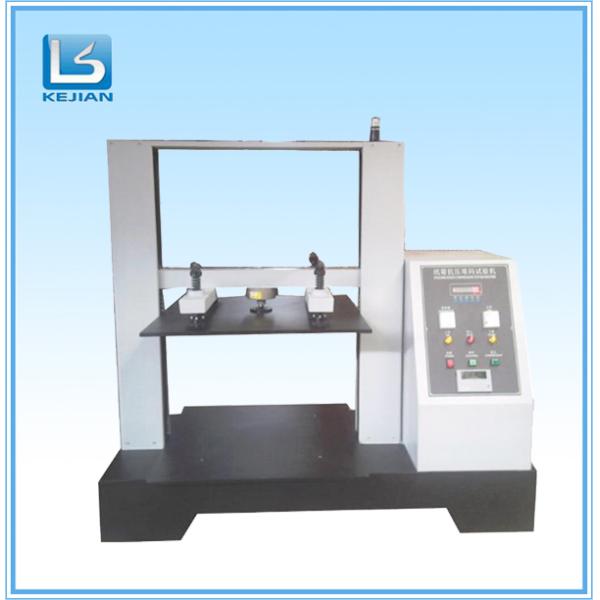

0.5~500mm 5T Computer Container Carton Compression Pressure Testing Equipment 1/250000 Resolution
