220V 50/60HZ 30A Universal Testing Machines For High / Low Temperature Humidity with Korea TEMI880
220V 50/60HZ 30A Universal Testing Machines For High / Low Temperature Humidity with Korea TEMI880
220V 50/60HZ 30A Universal Testing Machines For High / Low Temperature Humidity with Korea TEMI880
220V 50/60HZ 30A Universal Testing Machines For High / Low Temperature Humidity with Korea TEMI880
Specifications
Brand Name :
KEJIAN
Model Number :
KJ-1067
Certification :
ISO,CE and etc.
Place of Origin :
Dongguan,China
MOQ :
1 Unit
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
200 sets per month
Delivery Time :
In stock,3-7 working days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Load Resolution :
1/25000
Accuracy :
≤0.5%
Test speed :
0.001~500mm/min
Power system :
Panasonic AC servo motor + drive
Software Features :
The units select g, kg, N, KN, LB
Model :
High and low temperature
Humidity range :
20%RH~98%RH
Inner dimension :
40*40*70cm
Power :
1∮,AC220V/50HZ
Temperature&humidity control :
Korea TEMI880
Description

220V 50/60HZ 30A Universal Testing Machines For High / Low Temperature Humidity with Korea TEMI880

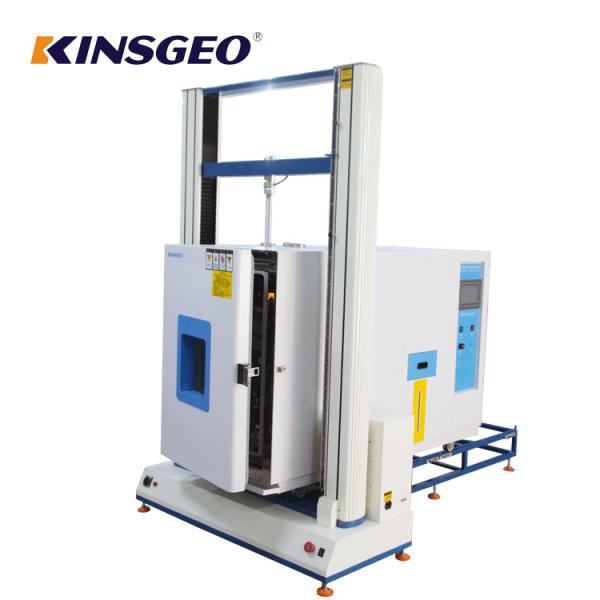

Equipment summary——High-Low Temperature/Humidity tensile Tester

  • Electronic Power and Tensile Testing Machine Usage low Temperature test machine is a new material testing machine that combined with the electronic technology and mechanical transmission.
  • It has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement.
  • This machine is simple to operate, especially suitable for controlling quality in production line This series of machine is mainly applied to test the non-metallic and metallic materials which the load is 20T.

220V 50/60HZ 30A Universal Testing Machines For High / Low Temperature Humidity with Korea TEMI880 220V 50/60HZ 30A Universal Testing Machines For High / Low Temperature Humidity with Korea TEMI880

Technical Parameters——High-Low Temperature/Humidity tensile Tester

Capacity:

10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN,20KN( can select

double capacities reparation)
Temp. Range: -40℃~150℃ (can require to make a higher temperature)
Display: Computer display mode
Force Resolution: 1/250,000
Force Accuracy: ≤±0.5%
Stroke Resolution: 0.005mm
Control Mode: All computerized operation mode
Temp. Control: PID automatic calculation, stable error
Circulation System: Fan force circulation system
Heating System: SUS304 stainless steel heat radiation type of heater
Protection Device: Leakage and overload protector
Test Stroke: 150~200mm
Chamber Dimension: 30×30×60cm(L×W×H)
Test Speed:

0.5~500mm/min, set by computer, with up & down fast adjustment button

of grips
Force Unit Switch: Kgf, N, Ibf, g, ton, Mpa
Stop Mode:

Overload stop, emergency stop button, specimen damage automatic stop,

upper & lower limit set automatic stop, automatic reset function
Machine Drive: Servo motor drive, synchronous wheel and precision ball screw drive
Power: 2KW
Machine Weight: Approx 220kg
Power Supply: 220V 50/60HZ 30A

220V 50/60HZ 30A Universal Testing Machines For High / Low Temperature Humidity with Korea TEMI880

Character:

1. The machine structure using high-grade paint built-in high-precision, low resistance, no gap double ball screw and guide column, improve the load efficiency and structural rigidity.

2. The control system using Panasonic AC servo motor to ensure high efficiency rotary system, smooth transmission, low noise, high speed control accuracy.

3. The computer system using a commercial computer as the main control machine, with the company's special test software, to complete all the test parameters set, working state control, data acquisition and processing analysis, the results show and print output.

4. High and low temperature test chamber with double insulated glass door, user-friendly observation of the test situation, and the use of all stainless steel frame and liner, not only beautiful, and strong corrosion resistance.

5. The instrument structure is reasonable, can be separated or combined test, can be split into constant temperature and humidity testing machine and stripping test machine use;

Main Parameters:

Technical parameters of tensile testing machine
Capacity 5,10,50,100,200,500,1000,2000,5000kg
Load Resolution 1/25000
Accuracy ≤0.5%
Test speed 0.001~500mm/min
Power system Panasonic AC servo motor + drive
Software Features The units select g, kg, N, KN, LB
Technical parameters of high and low temperature control system
Model High and low temperature
Temperature control range customized according to customer requirements
Humidity range 20%RH~98%RH
Control stability ±2.5%RH,±1℃
Distribution ±3%RH,±1℃
Temperature&humidity control Korea TEMI880
Inner dimension 40*40*70cm
Power 1∮,AC220V/50HZ
