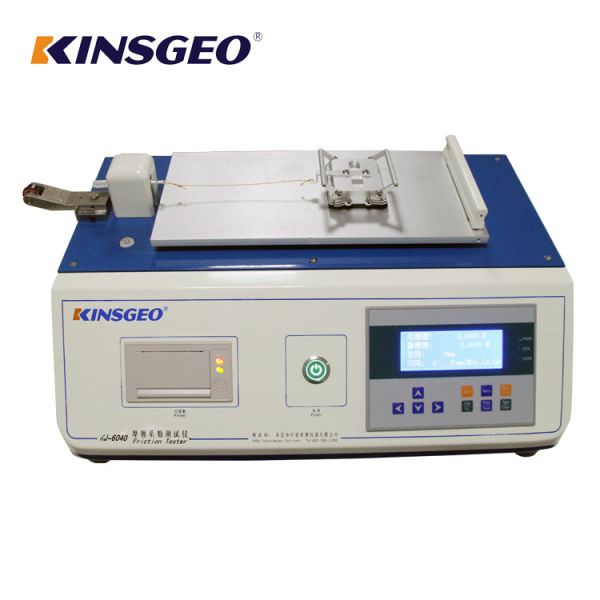

AC220V, 3A Coefficient of Friction Tester for Flexible Package Industry

Specifications:

1. Sample thickness: ≤0.2mm

2. Sliding piece size: 63×63mm)

3. Sliding piece mass: 200×2g

4. Slider-speed:100 ± 10mm/min, 125 ± 10mm/min, 150 ± 10mm/min third gear for section

5. Working-table board size: 200×470mm)

6. Digital display: Display static friction and dynamic friction at the same time automatically.

7. Measuring precision: ±2%

8. Velocity of sliding-piece movement: 100×10mm/min

9. Force measurement range: 0-5N

10. Power supply: 200V, 50Hz

Note:The computer can be an optional part.

rotary coefficient of friction tester can measure the coefficient of static friction and dynamic friction when materials are sliding. It is applicable for the packaging trade, film plants, testing institutions and so on.

Related standard: ASTM D4918 ASTM D1894

Characteristics:

1, rotary coefficient of friction tester adopts the advanced design technique labeled by piecewise linear with real-time display and real-time analysis.

2, rotary coefficient of friction tester Calibration methods: intelligent calibration, reducing the error

3, Display: LCD showing working status and test results

4, rotary coefficient of friction tester adopts one chip microcomputer system with high speed, high precision, and high integration to intelligently control each functional module.

5, The core parts and the components are provided with imported or homemade superior products to guarantee precise, stable and long-term use.

6, rotary coefficient of friction tester has the communication function of the RS232 computer, and supporting control software to account, analyze and deal with the test results

7, The specialized appearance design can easily mix with the office and test environment.
