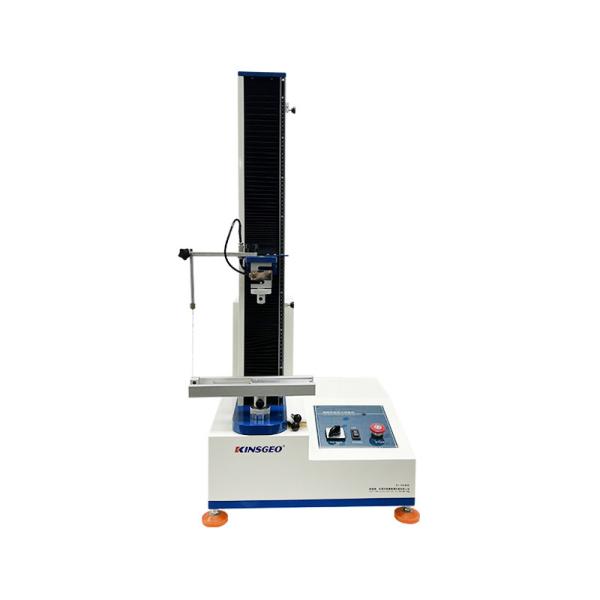

Tape Peeling Strength Testing Machine Desktop 0.5% High Precision
Tape Peeling Strength Testing Machine Desktop 0.5% High Precision
Tape Peeling Strength Testing Machine Desktop 0.5% High Precision
Tape Peeling Strength Testing Machine Desktop 0.5% High Precision
Tape Peeling Strength Testing Machine Desktop 0.5% High Precision
Tape Peeling Strength Testing Machine Desktop 0.5% High Precision
Tape Peeling Strength Testing Machine Desktop 0.5% High Precision
Tape Peeling Strength Testing Machine Desktop 0.5% High Precision
Specifications
Brand Name :
KINSGEO
Model Number :
KJ-1065A
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD/2300/SET
Payment Terms :
T/T
Supply Ability :
30Sets/month
Delivery Time :
15 work days
Power :
380/ 220V AC±10% 50/60Hz
Usage :
Universal Testing Machine
Product name :
Peeling strength testing machine
Warranty :
12 Months
Application :
Adhesive tape tester
Power supply :
AC220V 50HZ
Controller :
Siemens PLC (Germany) or TEMI2500
Standard :
ASTM-B117 B268
Material :
#SUS 304 Stainless steel
Description
 180/90 degree adhesive tape peeling strength testing machine

Feature

It can be used to test the material with 0.5g/25mm minimum testing accuracy, which improves the quality level of products in the electronic materials industry.

Usage

This machine is equipped with different fixtures to test 90 degree peel strength, 180 degree peel strength and release strength of tape and adhesive brand products. It can show the adhesion performance of tape products. And it can also test the tensile strength of base material. In addition, the instrument can do pressure and tensile testing through software.

Capacity
2KG
Maximum Load
2kg/5kg
Effective range of force measurement
0.02/100～100%
Accuracy class
0.5 class
Effective testing width
100mm
Effective tensile space
1,000mm
Testing speed
50～5,000mm/min
Speed accuracy
±0.5%
Accuracy of displacement measurement
±0.5%

Standard
ASTM D3330, FINAT, GB/T2792, PSTC and etc.

Tape Peeling Strength Testing Machine Desktop 0.5% High PrecisionTape Peeling Strength Testing Machine Desktop 0.5% High Precision
