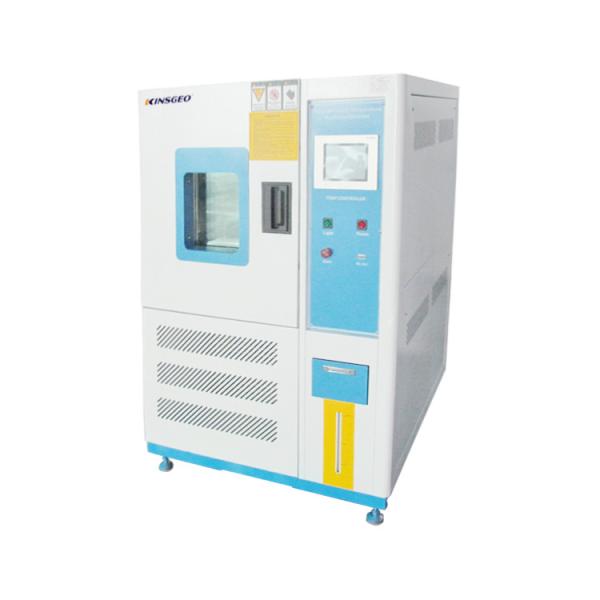

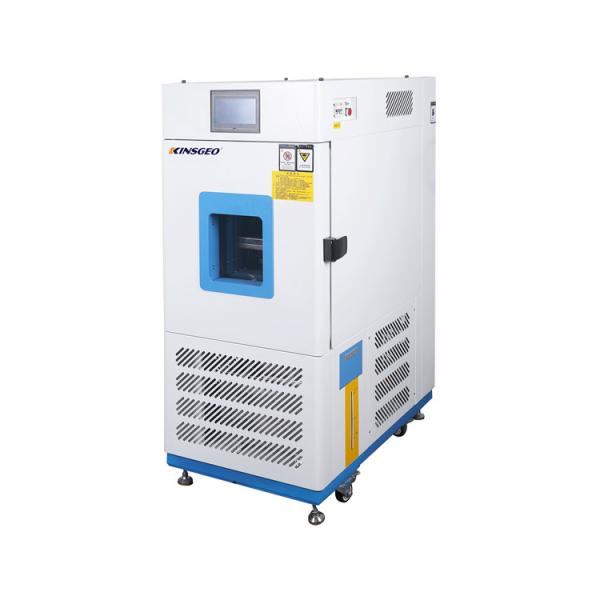

High Accuracy Temperature Humidity Test Chamber R23 \ R404A Refrigerating Fluid
High Accuracy Temperature Humidity Test Chamber R23 \ R404A Refrigerating Fluid
High Accuracy Temperature Humidity Test Chamber R23 \ R404A Refrigerating Fluid
High Accuracy Temperature Humidity Test Chamber R23 \ R404A Refrigerating Fluid
High Accuracy Temperature Humidity Test Chamber R23 \ R404A Refrigerating Fluid
High Accuracy Temperature Humidity Test Chamber R23 \ R404A Refrigerating Fluid
Specifications
Brand Name :
Kejian Kinsgeo
Model Number :
KJ-2091
Certification :
ISO,CE and etc
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
100 Sets per Month
Delivery Time :
Standard size in stock,3-7 working days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Usage :
Process Testing Machine
System :
English Optional
Operation :
LCD or PC
OEM Orde :
Acceptable
Environment Requirement :
5～30℃，stable floor, draughty,no heat source radiation
Nozzle Qty :
1681-2601 pcs
Temperatur range :
-20～150℃ \ -30～150℃ \ -40～150℃ \ -50～150℃ \-60～150℃ \ -70～150℃
Heating Time :
Max fastest 20℃/min（no-load）
Appearance :
cold-roll steel sheets, Corner circular arc
refrigerating fluid :
R23\R404A
Key words :
Temperature Humidity Chamber Price
Description

Good Quality Contant Temperature And Humidity Chamber Price

Uses

This chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.

Character

1.Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.

2.control temperature&humidity well-distributed, precisely and steady.

3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.

Design Standard

GB11158 High Temperature Test Chamber Technical Condition
GB10589-89 Low Temperature Test Chamber Technical Condition
GB10592-89 High-low Temperature Test Chamber Technical Condition
GB/T10586-89 Damp Heat Test Chamber Technical Condition
GB/T2423.1-2001 Low Temperature Test Chamber Test Methods
GB/T2423.2-2001 High Temperature Test Chamber Test Methods
GB/T2423.3-93 Damp Heat Test Chamber Test Methods
GB/T2423.4-93 Alternating Damp-Heat Test Methods
GB/T2423.22-2001 Temperature Changing Test Methods
IEC60068-2-1.1990 Low Temperature Test Chamber Test Methods　
IEC60068-2-2.1974 High Temperature Test Chamber Test Methods
GJB150.3 High Temperature Test Methods
GJB150.4 Low Temperature Test Methods
GJB150.9 Damp Heat Test Methods

Specifications:

Model KJ-2091B KJ-2091C KJ-2091D KJ-2091E
Internal size cm 40×50×40 50×50×60 70×70×85 100×80×100
External size cm 93×81×131 103×91×141 123×121×166 153×131×181
Tempetature range, accurancy -10,-20,-40,-60,-70～+150degree; ±0.1～± 0.3
Humidity range, accurancy 20％RH~98％RH； ±0.5％RH～±2.5％RH
Temp&humidity control Korea TEMI880
Circulatory System the circulatory system of wind speed
Heating System SUS#304, stainless steel heater
Humidifying System Surface evaporation, a transparent structure.
Cooling system Fan cooling mode, high efficiency of all sealed compressor
Water Supplying System Automatic control and transparent structure, automatic recovery of filtered water reuse.
Dehumidifying System Freezing latent heat dehumidification mode.
Internal&external material SUS#304
Standard Allocations shelves 2 groups, interior lights, anti-sweat&defogging device.
Power AC220V/50, AC380/50Hz
Safety Devices Leakage current, overload, compressor overload, over temperature, ultra-wet, dry, humidification temperature protection.

High Accuracy Temperature Humidity Test Chamber R23 \ R404A Refrigerating Fluid
