Specifications
Brand Name :
Kejian Kinsgeo
Model Number :
KJ-5023
Certification :
ISO,CE and etc
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
100 Sets per Month
Delivery Time :
in stock,5-10 working days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Professional Plywood Strong wooden case
Product name :
Alcohol Wear Tester
Standards :
EN ISO 12945-2/12947-1,ASTM 4966/4970,BS EN 388/530,,ISO 20344
aplication :
Textile
Heads :
6
Weight :
150kg
Operation :
Manual+Automatic
Data output :
printer
others :
can be customized
Warranty :
12 Months
Description

KEJIAN Alcohol Wear Tester Fabric Testing Machine Yarn Testing Instruments

Applicable Range


Used for testing the performance of the wearing resistance,abrasion, appearance change (pilling degree/class) of the textiles and membrane materials.


Relevant Standards


GB/T21196(national standard technical committees) GB/T4802.2 GB/T13775 FZ/T20020
ISO12945-2 ISO12947 ASTM D4966 ASTM D4970 ASTM D3886 JIS L1096 IWS Tm196/ TM112 M & S


Technical parameters


1. Number of working position: 8 digital(or 9 digital)
2. Counting range:0～999999 times
3. The Max.travel:Horizontal orientation 60.5±0.5mm Longitudinal orientation 24±0.5mm
4. Pressing substance weight:
a. clamp:200±1g
b. weight for garment samples:395±2g
c. weight for furniture adornment samples:594±2g
d. stainless-steel disc:260±1g
5. Effective friction diameter of friction block:
Model A: 200g(1.96N) Friction head(9KPa) ￠ 28.8 －0.084mm
Model B: 155g(1.52N) Friction head(12KPa) ￠ 90 －0.10mm
6. Relative moving speed of clamp and grinding table:20-70r/min(tunable)
7. Pressing hammer of sample loading weight:2385±10g
8. External dimension:885×600×410mm
9. Power source:AC220V 50Hz 500W
10. Weight:150kg

Standard accessories:
Item QUA
Test lift bar 50g±1 2
Alcohol steel velvet friction head (optional) 2
Weight 500g±0.5 2
Weight 250g±0.5 2
Weight 100g±0.5 4
Weight 50g±0.5 2
The eraser 2
Open wrench 1
Screwdriver 1
Brush 1

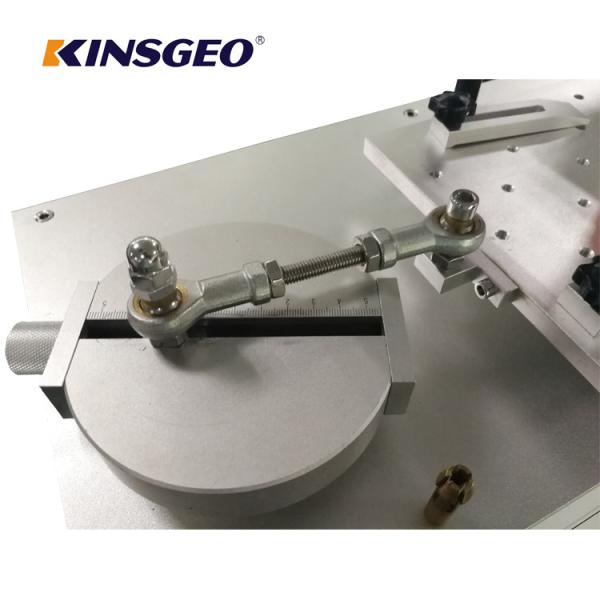

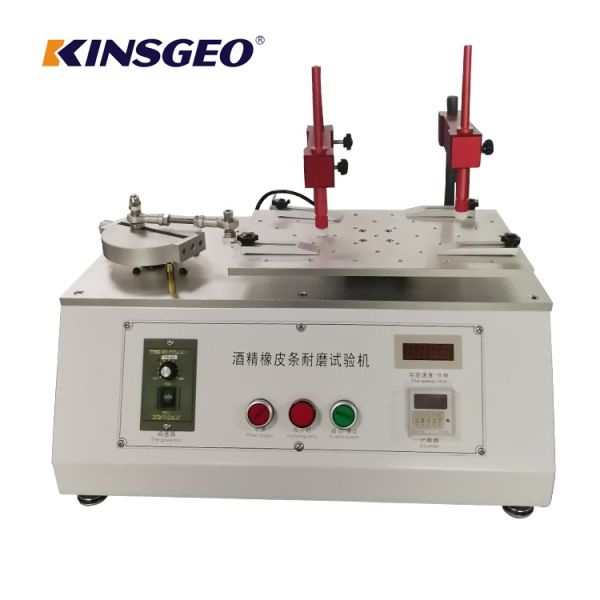

Pictures:

KEJIAN Alcohol Wear Tester, 12KPa Fabric Yarn Testing InstrumentsKEJIAN Alcohol Wear Tester, 12KPa Fabric Yarn Testing Instruments

KEJIAN Instrument Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:
1.Device installation

2.Equipment Operation Test Technology training

3. Equipment Calibration

4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades

Free information:

1.Product Instruction;

2.Product operation instruction/video;

3.Experiment Test (test application, test report)

Device Problem Handling:

1. Social media 24 hours online communication;

2. Mail Seamless Docking;

3. Video Conferencing;

4. Artificial free door-to-door service.
