UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
Specifications
Model Number :
UBPM-01
Place of Origin :
Beijing, China
Brand Name :
UNIVO
Packaging Details :
Brown cardboard boxes are packaged with bubble bags inside to wrap the product.
Supply Ability :
1000 Piece/Pieces per Month
Price :
$5.30 - $7.40/sets
MOQ :
5
Series :
UBPM-01
Features :
Gauge pressure/positive pressure/negative pressure
Mounting Type :
-
Description :
Suitable for non corrosive gases, pressure sensor module
Manufacturing Date Code :
2024
Type :
pressure sensor module, Pressure Sensor
Usage :
Pressure measurement
Theory :
-
Output :
LDO V
Range :
-100kPa ~ 0~1kPa ~1500kPa
Current consumption :
5uA (one measurement)
Power Supply :
2.5V~5.5V
Description
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module

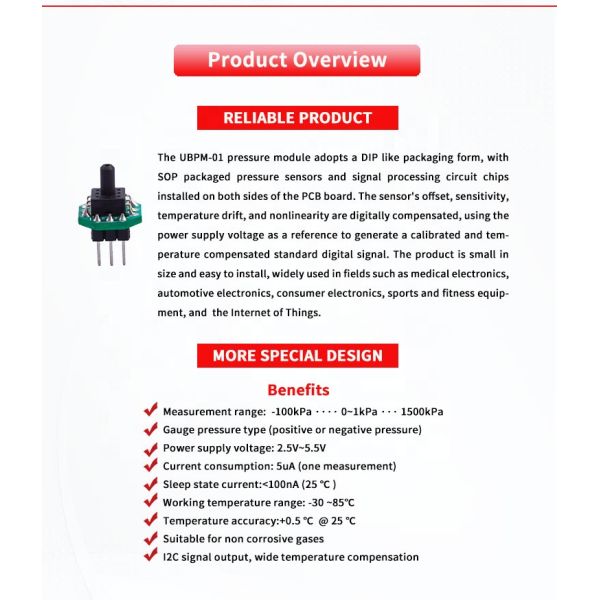

Products Description
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
Electronic blood pressure monitors, ventilators, oxygen
concentrators, monitors and other medical fields;
Atomizer, spray, negative pressure sensor and other consumer
electronics fields;
In the field of sports and fitness equipment such as massagers,
massage chairs, and air cushion beds;
In the fields of water heaters, oxygen water machines, beer
machines, coffee machines, air pumps, vacuum pumps, pressure
instruments, etc;
Product Paramenters
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
Project
Numerical value
Unit
Power supply
5±0.25
V DC
Reference temperature
25
°C
Accuracy*
2
%Span
Response time
2.5ms@OSR_P=1024X
Ms
SDA/SCL pull-up resistor
4.7
Kohm
ESD HBM
4000
V
Overload pressure
2
Rated
Compensation temperature
0~60
°C
Measure medium temperature
-10~85
°C
Storage temperature
-40~150
°C
Accuracy refers to the comprehensive error, which is composed of the linearity, repeatability, hysteresis, and thermal drift
errors of pressure. The pressure range and precision vary. Please consult customer service for more details.
parameter
Minimum
value
Typical
value
Maximum
value
Unit
Remarks
Power supply voltage
2.5
5.5
V
working temperature
-40
150
°C
Standby current
100
nA
LDO output
1.62
1.8
1.98
V
'regulator_sel'= 0
3.24
3.6
3.96
V
PSRR
60
dB
'regulator_sel'= 1
resolving power
24
Bits
Output data resolution
24
Bits
LSB=(1/2^23)*VEXT
('raw_data_on'=1)
Input common mode signal suppression ratio
80
110
Built in temperature sensor accuracy
±0.5
°C
@25°C
±1
°C
-40 to 85°C
Output data resolution
16
Bit
LSB =(1/256)°C
Clock pulse frequency
400
khz
I2C communication
Electrical connections
1
2
3
4
5
6
SCL
NC
GND
VDD
SDA
NC
Attention:
1. Ensure anti-static protection during the welding process
2. Overload voltage (6.5Vdc) or current (5mA) is highly likely to burn out the circuit chip. 3. Please add a 0.1uf capacitor
between VDD and GND
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module

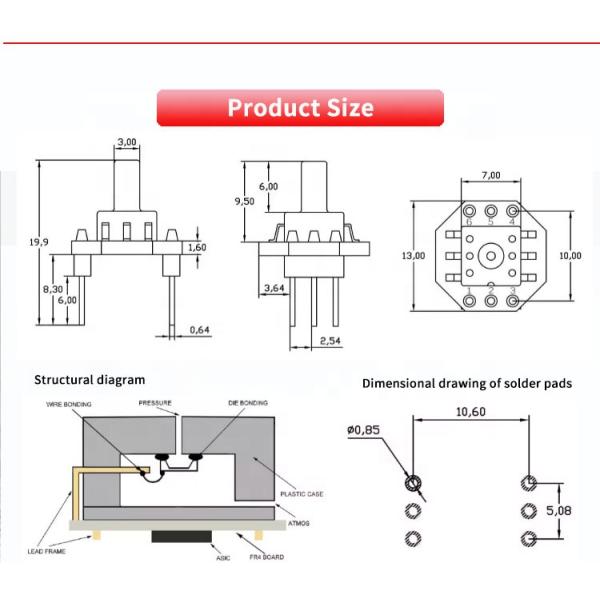

Details Images
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
Company Profile
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module

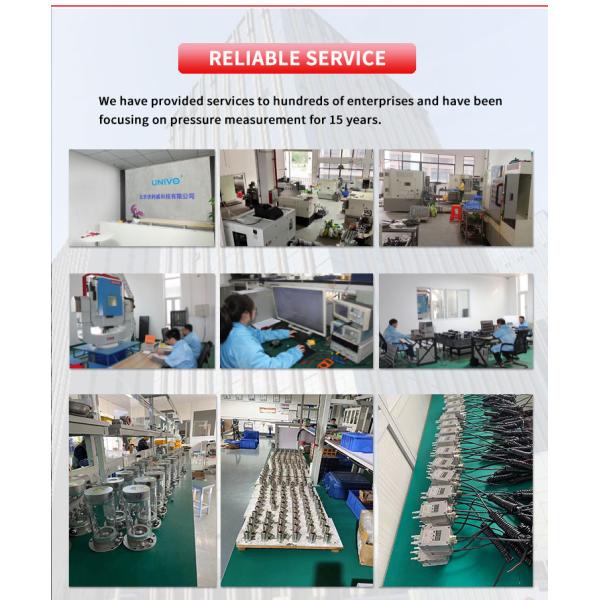

Why Choose Us
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
Product packaging
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module
FAQ
UBPM-01 Positive And Negative Pressure Digital IIC Gases Pressure Sensor Module

Q1. What are your packaging conditions? Answer: Usually, brown cardboard boxes are packaged with bubble bags inside to wrap the product. Q2. How long is your quotation valid? Answer: Our quotation is valid for 30 days. Q3. How is your delivery time? Answer: General standard type: 7-15 working days after confirming the order based on the quantity; Non standard types require communication and confirmation with us. Q4. What is your minimum order quantity? Answer: According to different product types, the cost varies and the minimum order quantity also varies. Please contact us for confirmation. Q5. How do you ensure good product quality? Answer: We have a complete quality control system; All of our products undergo a comprehensive inspection by the quality department before being shipped to customers. Q6. Can you produce based on samples? Answer: Yes, we can produce according to your samples or technical drawings. Q7. Can you accept OEM brands? Answer: Yes, we can accept OEM brands. Q8. How long is the warranty period for your product? Answer: Lifetime maintenance, 24 months of non human damage (calculated from the time of receipt), with free replacement if there are quality issues (damage caused by human factors, overload use, etc. are not within the warranty scope); Only material fees will be charged beyond the warranty period. Accessories and gifts are not covered by the warranty. Q9. How to deliver? Answer: For your convenience, we can send goods through DHL, TNT, UPS, SF, EMS, etc. for prepaid shipping, or use your own courier account to collect shipping fees. Q10. Can I take the sample? Answer: You can contact us to help you get the samples as soon as possible. Purchase guide To recommend you the most suitable sensor, please tell us below information. 1. Working temperature: -40~+125 °C ? 2. Test range? 3. Output: 4-20mA , RS485 or others? 4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5? 5. Electrical connection: DIN43650, Packard, Direct lead? 6. Order quantity: ?
