Tear Resistance HDPE High Strength Cross Laminated Film For Waterproof Membranes
Tear Resistance HDPE High Strength Cross Laminated Film For Waterproof Membranes
Tear Resistance HDPE High Strength Cross Laminated Film For Waterproof Membranes
Tear Resistance HDPE High Strength Cross Laminated Film For Waterproof Membranes
Tear Resistance HDPE High Strength Cross Laminated Film For Waterproof Membranes
Tear Resistance HDPE High Strength Cross Laminated Film For Waterproof Membranes
Tear Resistance HDPE High Strength Cross Laminated Film For Waterproof Membranes
Tear Resistance HDPE High Strength Cross Laminated Film For Waterproof Membranes
Specifications
Brand Name :
Upass
Model Number :
SDM-60F
Certification :
ISO, MSDS
Place of Origin :
China
MOQ :
10000SQM
Price :
0.34
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100Tons/M
Delivery Time :
7-10 working days
Packaging Details :
Bubble or Film Wrap
Product Name :
Tear Resistance HDPE High Strength Cross Laminated Film
Material :
HDPE
Performance :
Cross Laminated, Anti-slip
Type :
High Strength Tear Resistance
Thickness :
0.12-0.265mm
Width :
100-1200mm
Color :
Green, Black, Grey, White, Red, Grey/Black, ect
Application :
Waterproofing Membranes, tapes, labels, packaging ect.
Description
Tear Resistance HDPE High Strength Cross Laminated Film
Tear Resistance HDPE High Strength Cross Laminated Film Product Details:

Cross Laminated Film is a high-strength multi-layer composite film, It is made of HDPE as the base material, multi-layer co-extrusion blow molding into embryos, and then by multiple pull Stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution of 45°, and finally through cross-compositing.

Tear Resistance HDPE High Strength Cross Laminated Film Applications:

It is widely used in anti-child tear packaging (MediCRREO); explosive packaging; chemical packaging; Blister Guard packaging; export merchandise packaging bags; building waterproof materials, postal tag, car airbag label, aviation tag Bulletproof clothing, self-adhesive tapes and underlayment etc.

Tear Resistance HDPE High Strength Cross Laminated Film Advantages:

1. Excellent dimensional stability.
2. Two-way tear resistance.
3. Performance against UV radiation.
4. High strength and high elongation performance.
5. Unique puncture resistance, self-healing and continuous tear resistance and excellent nail water tightness.

Tear Resistance HDPE High Strength Cross Laminated Film Parameters:
. Item Performance
SDM-30 SDM-60
1 Tensile Property Tensile Strength/Mpa ≥ 30 50
MaxF/(N/50mm) ≥ 200 300
Elongation as MaxF/% ≥ 200
Elongation at break/% ≥ 250
2 Sample number of no broken tested by free-falling dart method ≥ 8
3 Tear Strength(Nail Shank)/N ≥ 60
4 Angle Tear Strength/N ≥ 25
5 Thermal Stability 120 ℃,10min, No bulb, No deformation
6 Cryogenic Flexibility ℃

-35℃,

No fissure, No delamination
7 Thermal Ageing Appearance No bulb, No deformation
Subsequent MaxF/% ≥ 80
Elongation at MaxF/% ≥ 200
Elongation at break/% ≥ 200
8 Artificial Weathering Appearance No bulb, No deformation
Subsequent MaxF/% ≥ 70
Elongation at MaxF/% ≥ 180
Elongation at break/% ≥ 180

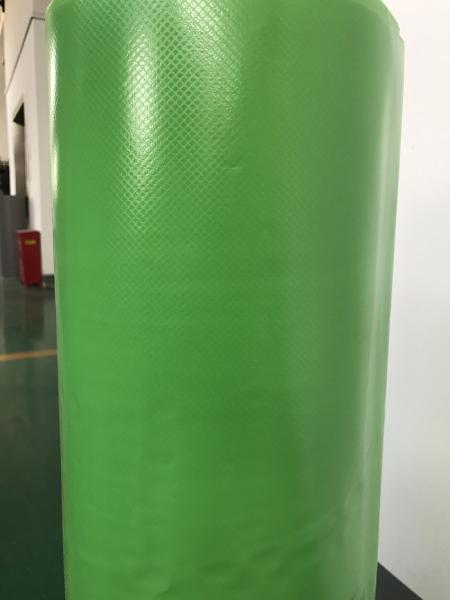

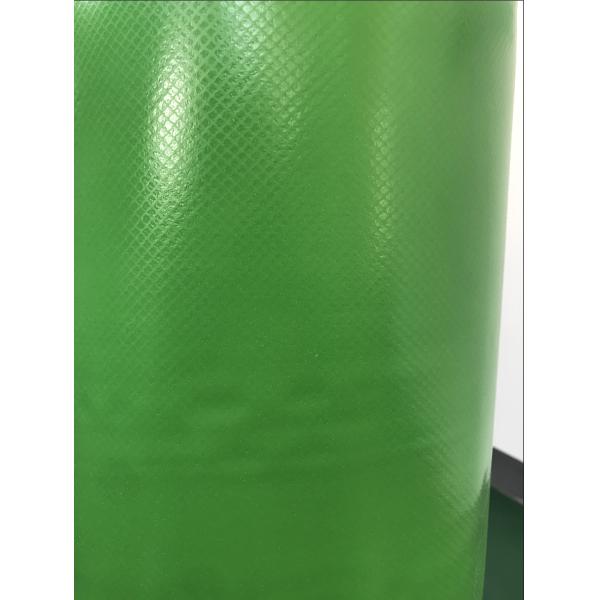

Tear Resistance HDPE High Strength Cross Laminated Film Details Show:
Tear Resistance HDPE High Strength Cross Laminated Film For Waterproof Membranes
