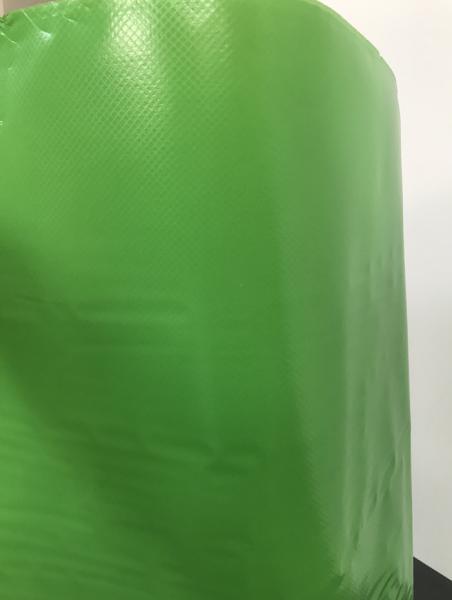

High Strength Anti Slip Cross Laminated Film For Waterproof Membranes
High Strength Anti Slip Cross Laminated Film For Waterproof Membranes
High Strength Anti Slip Cross Laminated Film For Waterproof Membranes
High Strength Anti Slip Cross Laminated Film For Waterproof Membranes
High Strength Anti Slip Cross Laminated Film For Waterproof Membranes
High Strength Anti Slip Cross Laminated Film For Waterproof Membranes
Specifications
Brand Name :
Upass
Model Number :
High Strength Film
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
200,000㎡~300,000㎡
Delivery Time :
15days
Packaging Details :
Bubble Wrap & Wooden Pallet
Product Name :
High Strength Anti-slip Cross Laminated Film
Material :
HDPE
Production Process :
Cross Laminated
Performance :
Thermal Dimensional Stability
Thickness :
0.09-0.26
Width :
100-1150mm
Property :
Anti-slip
Application :
Underlayment, Waterproofing membrane
Printing :
Can be customizable
Sample :
Available
Description

High Strength Anti-slip Cross Laminated Film

High Strength Anti-slip Cross Laminated Film​ Description:

Our proprietary manufacturing process is composed of 4 steps:

1. HDPE Film Blowing;

2. Spiral Cutting;

3. Cross Lamination;

4. Anti-slip printing.

Cross laminated film is puncture and weather resistant, has thermal dimensional stability and cold temperature resistance. The most property is Anti-slip, mainly application for self-adhesive membranes, tapes and underlayment for pitched-roof.


High Strength Anti-slip Cross Laminated Film Parameter:

NO. Item Performance
SDM-30 SDM-60
1 Tensile Property Tensile Strength/Mpa ≥ 30 50
MaxF/(N/50mm) ≥ 200 300
Elongation as MaxF/% ≥ 200
Elongation at break/% ≥ 250
2 Sample number of no broken tested by free-falling dart method ≥ 8
3 Tear Strength(Nail Shank)/N ≥ 60
4 Angle Tear Strength/N ≥ 25
5 Thermal Stability 120 ℃,10min, No bulb, No deformation
6 Cryogenic Flexibility ℃

-35℃,

No fissure, No delamination
7 Thermal Ageing Appearance No bulb, No deformation
Subsequent MaxF/% ≥ 80
Elongation at MaxF/% ≥ 200
Elongation at break/% ≥ 200
8 Artificial Weathering Appearance No bulb, No deformation
Subsequent MaxF/% ≥ 70
Elongation at MaxF/% ≥ 180
Elongation at break/% ≥ 180


High Strength Anti-slip Cross Laminated Film Application:

► Surface/base material for CONSTRUCTION WATERPROOFING
► Surface/base material for SELF-ADHESIVE TAPES
► Surface/base material for UNDERLAYMENT

FAQ:

Q1: Are you trading company or manufacturer ?

A1: We are manufacturer.

Q2: Do you provide samples ? is it free or extra ?

A2: Yes, we could offer A4 sample for free charge but if you need in roll,

we can offer 100-200m/roll for free, but shipping cost need you to paid.

Q3: How long is your delivery time?

A3: Depends on your quantity. Generally it is 15-20 days for 20GP container.

Q4: What's your payment?

A4: By L/C, by T/T (30% deposit before production, 70% balance before loading).

Q5: What's the usage of this film?

A5: It is special for the surface material when you producing waterproofing membranes, tapes and underlayment.

Q6: What's the thickness you can do?

A6: We can do as thin as 100 microns, but usually do 110-130 microns.

Q7: What's your production capacity?

A7: We have total 10 sets of machines, the production is about 1000 tons per month.
