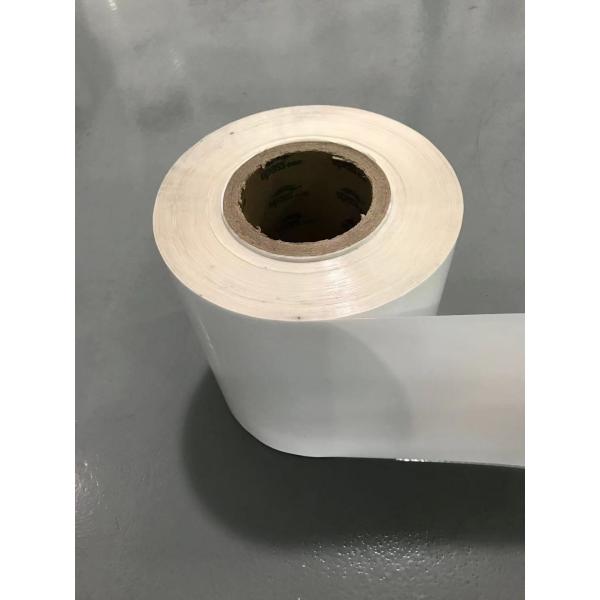

Laminated Waterproofing Membranes Anti Corrosion Film
Laminated Waterproofing Membranes Anti Corrosion Film
Laminated Waterproofing Membranes Anti Corrosion Film
Laminated Waterproofing Membranes Anti Corrosion Film
Laminated Waterproofing Membranes Anti Corrosion Film
Laminated Waterproofing Membranes Anti Corrosion Film
Laminated Waterproofing Membranes Anti Corrosion Film
Laminated Waterproofing Membranes Anti Corrosion Film
Specifications
Brand Name :
Upass
Model Number :
Laminated Film
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
200,000㎡~300,000㎡
Delivery Time :
15days
Packaging Details :
Bubble Wrap & Wooden Pallet
Product Name :
Waterproofing Membranes Application Anti Corrosion Film
Material :
Fluorine film+ PET film
Production Process :
Laminated
Performance :
weather resistance
Thickness :
0.07-0.15mm
Width :
100-1050mm
Color :
White
Application :
Tapes, Waterproofing membranes
Printing :
Can be customizable
Sample :
Available
Description

Waterproofing Membranes Application Anti Corrosion Film

Description:

What's Anti Corrosion Film?

It is a laminated film which compound PET with Flourine Film.

The PET Film is inner side, can be high temperature resistance, which production temperature

resistance up to 180 degrees, also, it make the laminated film reinforcement, tear resistance

and high enlongation.

The Flourine Film is outer side, it is a weather resistance film, UV resistance, can be external

exposure for 25 years. It is white color, can be reflect 85% sunlight.

It is ideal material for self-adhesive waterproofing membranes and butyl tapes.

Parameter:

Detection Item Detection Method Detection Value Remark
Thickness UF509 GB/T6672-2001 0.128mm /
Width GB/T6673-2001 / According to customer needs
Max force UF509 GB/T 328.9-2007 MD:324N Rectangular spline, spline width 25mm, stretching rate: 100mm / min, fixture gauge distance: 100mm
TD:348N
Elongation at Break UF509 MD:406%
TD:260%
Tensile Strength UF509 GB/T 529-2008 MD:47N Stretching speed:250mm/min
TD:43N
Surface Tension GB/T14216 ≧42dyn/cm Dyne Pen Test
Dimensional change rate UF509 GB/T 35467-2017 MD:0.96% 90℃&24h
TD:0.77%
Water vapor transmission rate GB/T 21529 ≦70 g/m2.24h (20um) 38℃+100%RH
Electrolytic sensor method
Flammability grade UL94 VTM-0 White weathering film
Aging test PCT96 / Yellowing index △b≤2.0, Temperature 121 ℃, humidity 100%, air pressure 2atm, time 48h
UV300KWh IEC61215 The temperature of the sample is 60 ± 5 ℃, and the total exposure is 120KWh • m2, of which UVB accounts for 3% -10%.
DH2000h IEC61215 Temperature 85 ℃, humidity 85% R.H., 2000h
TC400 IEC61215 Temperature －40 ℃ ～ 85 ℃, 6h / cycle, 400cycle

Laminated Waterproofing Membranes Anti Corrosion Film


Advantages:

1. Excellent properties of anti-aging, weather resistance
2. UV resistance
3. Weather resistance
4. Chemical corrosion resistance
5. Resistance to high temperature,heat,humidity and extreme cold
6. Reflectivity of over 85%
7. High strength, tear resistance

Application:

Weather Resistance Tape Application:

Laminated Waterproofing Membranes Anti Corrosion Film

Weather Resistance Waterproof Membranes Application:

Laminated Waterproofing Membranes Anti Corrosion Film
