3.8mm Black Zig Zag Sofa Springs Upholstery Chair Settee Sofa DIY , Serpentine Upholstery Springs

About Zigzag Spring

High tensile strength wire spring, perfectly tempered. Higher gauge springs have thinner wire. Can be cut with bolt cutters. Ready to use. Maximum resiliency is obtained when a convex spring arc height is between 2 and 2 1/4 inches. This is the 'rise'of the spring over the frame mounting point. If you wish to add height to an exisiting spring, use a hinge link at the back of the frame. Spring ends should be cut so that both end face the same direction. When measuring to cut, if the desired length means the ends would face opposite, go to the next longer, not shorter, bend. Sinuous springs, also known as sagless or zig-zag, are the most common low profile springs. Although the shape may lead you to think otherwise, they do depend on compression for the spring effect. A solid and sturdy frame is required to bear the stresses, from the front to back rail and top to bottom rail pull of these springs (occasionally reinforcing is required). Steel. Used in seating applications.

Advantage Of Product

1. it's made of high carbon stell wire,has good elasticity and keep shape for more than 8 years.

2. Can be made with different wire diameter to fit for the different usage demands.

3. Passed the fatigue test,can reach exceed 20,000 times not out of shape.

4. Antirust treatment,surface of the spring was processed with the enviromental paint.

5. Mostly be used in sofa seat and back.

Product Details

About Delivery

1. Shipped by LCL / FCL.

2. If trade in FOB / CIF term,goods will be shipped from Guangzhou / Shenzhen port.
3. If trade in EXW,goods will be loaded in factory or if you need us send the goods to appointed loading place,it's also ok,but maybe will have extra fee.

About Packing

Normally,our standard packing is 4kgs/roll,10roll/bag,packed with knitted bag.We can make different weights per roll as your request,but we don't suggest total per bag exceeds 40kgs.We also can pack the goods will plywood carton,but there will be extra packing fee.

Trade Term & Payment Term

Trade Term: EX-WORK,FOB Guangzhou / Shenzhen,CIF,CNF
Payment Term: T/T & Western Union is acceptable
1. FOB & CIF term - 30% deposit paid after the order confirmed,70% balance paid against the copy of documents.
2. EXW term - 30% deposit paid after the order confirmed,70% balance paid before delivery.
3. If total amount is lower than USD1000,we will charge total amount after the order confirmed.

OEM Service

We only need the drawing of zigzag spring,if samples can be offered for checking will be the best,then the price will be offered to you accordingly.

About MOQ

Generally speaking,for the customised size,we ask for the MOQ of each size is 4000PCS,for our standard size,we ask for the MOQ of each size is 2500PCS.If you have your own printing design on the packing bag,there will be MOQ of bag requested,but it can be negotiated.

You Can Get From Us

1.High quality Guarantee. We have strict quality control system from raw material, production and after production. When the goods are ready, we also have 15% spot check. Distinguished customer inspection are also warmly welcomed.

2.Competitive price.We are a hardware factory,rather than than trading company,what's more, we have specilized in hardware and fasteners for ten years, we have excellent technics team and hi-tech machine, which will help us decrease the cost of .Producing machining partsfor so many years , we also have a good reputation and relationship with material supplier.

3.Technician support. Drawing updated,such as: find the best way to antirust or how to make parts assembly better, etc.

4.Friendship and Long-term cooperation. The purpose of our company is to offer good products with competitive price to attractive more potential customers and establish long term business at mutual benefit.

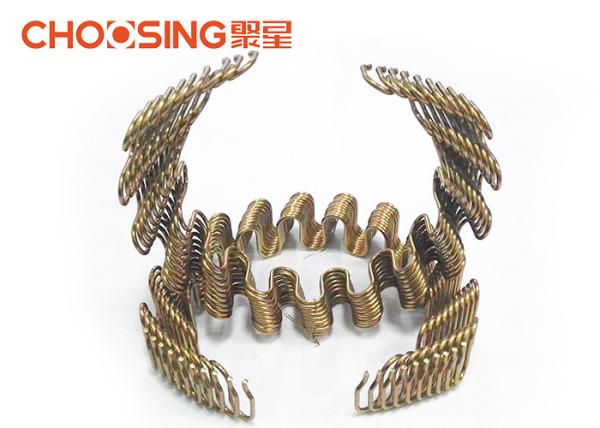

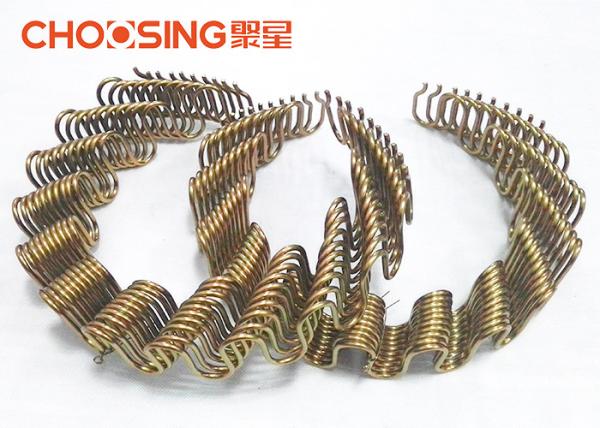

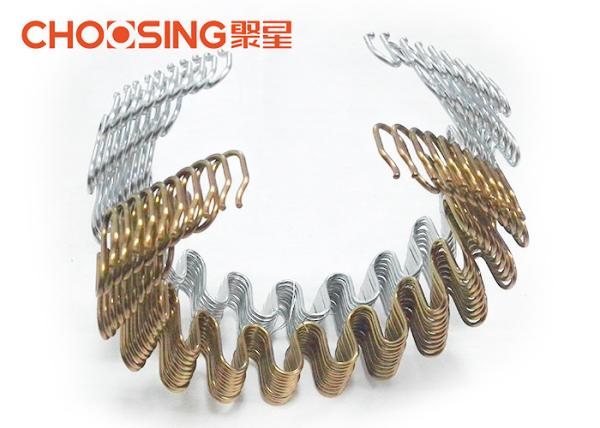

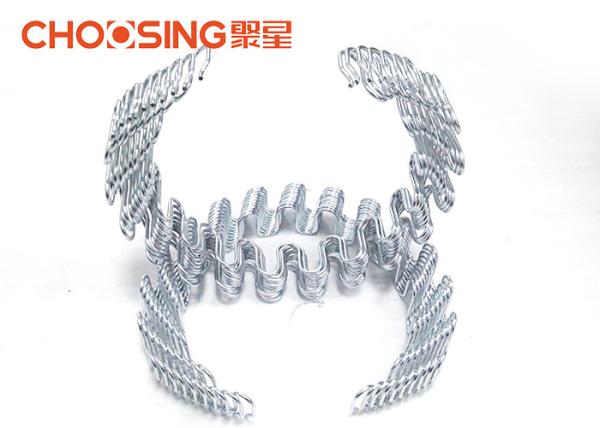

Product Photo
