120kva Online Ups Power Unit High Frequency Ups For Data Center
120kva Online Ups Power Unit High Frequency Ups For Data Center
Specifications
Brand Name :
CPSY
Model Number :
HP33120H
Certification :
ISO9001, CE,ROHS,TLC,OHSAS18001,ISO14001
Place of Origin :
China
MOQ :
20pcs
Price :
USD 9200-9384.62 /pc
Payment Terms :
100%TT, Western Union,Paypal
Supply Ability :
10000pcs/ month
Delivery Time :
20-25days
Packaging Details :
Wooden box
Type :
Long-run model
Battery type :
Value regulated lead acid (VRLA) battery
Wide input voltage range :
210-475VAC
LED indicators :
UPS status,Load level,Battey level,and Fault conditions
Dimensions :
515x250x608MM
neight :
306kgs
Optional SNMP :
Power management from SNMP manager and web browser
Phase :
3 phase in and 3 phase out
Description

80kva 100kva 120kva online ups power unit high frequency ups for datacentre

Technical data:

Model HP3310H HP3315H HP3320H HP3330H HP3340H HP3360H HP3380H
Capacity 10KVA/8KW 15KVA/12KW 20KVA/16KW 30KVA/24KW 40KVA/32KW 60KVA/48KW 80KVA/64KW
Phase 3 Phase in and 3 phase out
Input
Voltage Range 210-475 VAC
Frequency Range 40Hz~70Hz, 56/60Hz(AutoSensing)
THDI ＜3%
Power Factor ＞0.99
Double mains input Support
Battery
Battery Type Valve regulated lead acid(VRLA) battery
DC voltage ±192VDC(defult),±168,±180(adjustable)
Output
Output voltage 380V/400V/415VAC (1±1%) VAC
Frequency 50/60 Hz
Power Factor 0.8
Overload Capability 125%10min
150%1min
Machine efficiency 93% 93% 93% 93% 93% 94% 94%
ECO Mode 98%
Others
Speed adjustable fan Support
LCD indicators UPS Status and instructions in both English and Chinese
input/output voltage,current,frequency,battery voltage,charging current value,discharging current value,fault display,fault,warning
LED UPS running condition
Warning device Indicator flash and Buzzer sound
Communication ports RS-232,AS400,RS485,Service,EPO,EXT.BATTERY TEMPPROBE,Intelligentslot
Environment
Temperature 0-40℃
Humidity 10-95%
Physical
Net.Weight 78KGS 80KGS 82KGS 110KGS 114KGS 282KGS 306KGS
Gross Weight 118KGS 120KGS 122KGS 160KGS 164KGS 365KGS 380KGS
Size(mm) 420X663.5X956 470X710X1150 600X800X1850

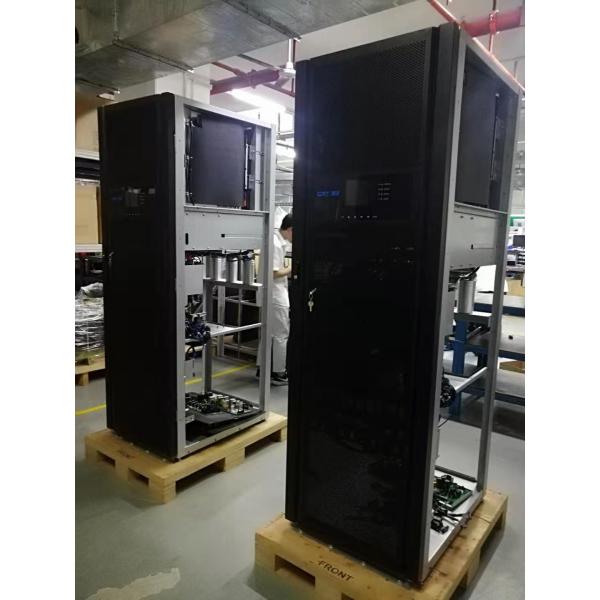

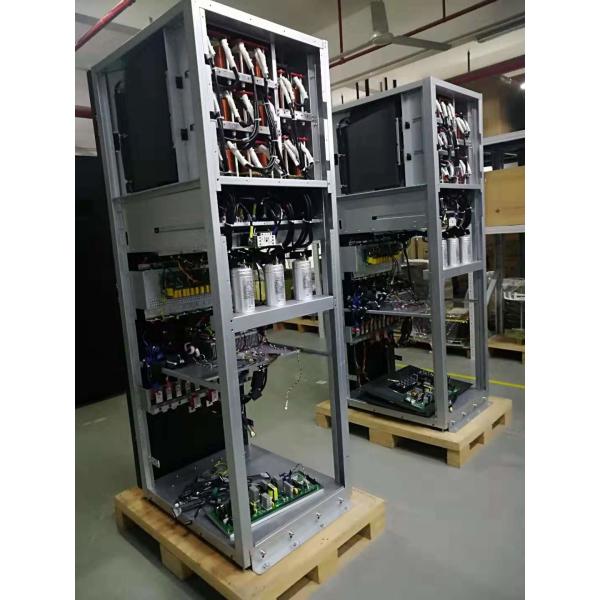

Production:

120kva Online Ups Power Unit High Frequency Ups For Data Center120kva Online Ups Power Unit High Frequency Ups For Data Center

Our service:

The service we can supply:

1.10 years factory, engineers with 15years experience average

2. Supply OEM/ODM service----the logo,color,plugs and sockets,LED/LCD display,USB port,RJ45/11 port, etc.

3.Samples/Small order for testing welcomed.

4.Any customized design is welcomed.

5.1-3 years warranty, provide technical training

6.Provide 365days,7*24hrs hot-line service to user to advisory for the problems of the shangyu service, products, technical, business and fault repair, service Hot-line is 400-0505-800

After-sales service:

Customers Provide proper instructions to the technical support department through proper procedures to explain the cause and condition of any damage to the product.The detail procedure of warranty as belowing:

1.Send Photo or video of damage products with Serial number label to shangyu,will reply you in 12 hours.

2.The technical engineers will send the Detection table to you for feedback in 24hours.

3.Fault handling and suggestion table will be send to you in 48hours after technical department get the Detection table.

4. We will send you the spare parts by free if the problems caused by us during warranty period.If it is the men-made problems,we also send the spare parts,but you should pay.

5.Other problems can be solved according to the Fault handling and suggestion table.If any misunderstand,call us immediately.
