80kva 100kva 120kva Double Conversion UPS / High Frequency Ups For Data Center
80kva 100kva 120kva Double Conversion UPS / High Frequency Ups For Data Center
Specifications
Brand Name :
CPSY
Model Number :
HP3380H
Certification :
ISO9001, CE,ROHS,TLC,OHSAS18001,ISO14001
Place of Origin :
China
MOQ :
20pcs
Price :
USD 520.45-571.68 /pc
Payment Terms :
100%TT, Western Union,Paypal
Supply Ability :
10000pcs/ month
Delivery Time :
20-25days
Packaging Details :
Wooden box
Type :
Long-run model
Battery type :
Value regulated lead acid (VRLA) battery
Capacity :
80KVA / 64KW
Wide input voltage range :
210-475VAC
Output voltage :
380/400x415 VAC(1±%)
Frequency :
40Hz ~ 70 Hz
LED indicators :
UPS status,Load level,Battey level,and Fault conditions
Dimensions :
600*800*1850MM
Power factor :
0.8
Smart RS-232 :
SUPPORTS WINDOWS2 2000/2003/XP/Vista/208,Windows2 7, Linux,Unix,and MAC
Optional SNMP :
Power management from SNMP manager and web browser
Battery number :
16-20 pcs(adjustable)
Features 1 :
True double-conversion
Features 2 :
Optional N+Xparallel redundancy
Phase :
3 phase in and 3 phase out
Net Weight :
306kg
Gross weight :
380kg
OEM & ODM :
Both welcome
MOQ :
1set is ok
Description

80kva 100kva 120kva online ups power unit high frequency ups for datacentre

Technical data:

Model HP3310H HP3315H HP3320H HP3330H HP3340H HP3360H HP3380H
Capacity 10KVA/8KW 15KVA/12KW 20KVA/16KW 30KVA/24KW 40KVA/32KW 60KVA/48KW 80KVA/64KW
Phase 3 Phase in and 3 phase out
Input
Voltage Range 210-475 VAC
Frequency Range 40Hz~70Hz, 56/60Hz(AutoSensing)
THDI ＜3%
Power Factor ＞0.99
Double mains input Support
Battery
Battery Type Valve regulated lead acid(VRLA) battery
DC voltage ±192VDC(defult),±168,±180(adjustable)
Output
Output voltage 380V/400V/415VAC (1±1%) VAC
Frequency 50/60 Hz
Power Factor 0.8
Overload Capability 125%10min
150%1min
Machine efficiency 93% 93% 93% 93% 93% 94% 94%
ECO Mode 98%
Others
Speed adjustable fan Support
LCD indicators UPS Status and instructions in both English and Chinese
input/output voltage,current,frequency,battery voltage,charging current value,discharging current value,fault display,fault,warning
LED UPS running condition
Warning device Indicator flash and Buzzer sound
Communication ports RS-232,AS400,RS485,Service,EPO,EXT.BATTERY TEMPPROBE,Intelligentslot
Environment
Temperature 0-40℃
Humidity 10-95%
Physical
Net.Weight 78KGS 80KGS 82KGS 110KGS 114KGS 282KGS 306KGS
Gross Weight 118KGS 120KGS 122KGS 160KGS 164KGS 365KGS 380KGS
Size(mm) 420X663.5X956 470X710X1150 600X800X1850

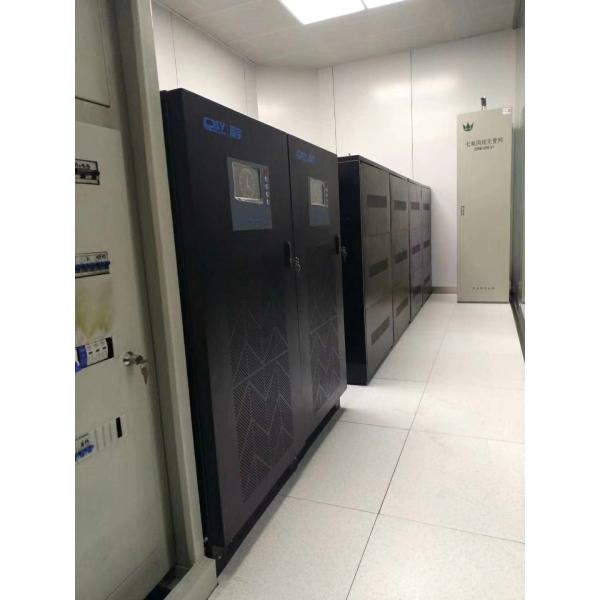

Image:

80kva 100kva 120kva Double Conversion UPS / High Frequency Ups For Data Center

Our service:

The service we can supply:

1. 10 years factory, engineers with 15years experience average

2. Supply OEM/ODM service----the logo,color,plugs and sockets,LED/LCD display,USB port,RJ45/11 port, etc.

3. Samples/Small order for testing welcomed.

4. Any customized design is welcomed.

5. 1-3 years warranty, provide technical training

6. Provide 365days,7*24hrs hot-line service to user to advisory for the problems of the shangyu service, products, technical, business and fault repair, service Hot-line is 400-0505-800
