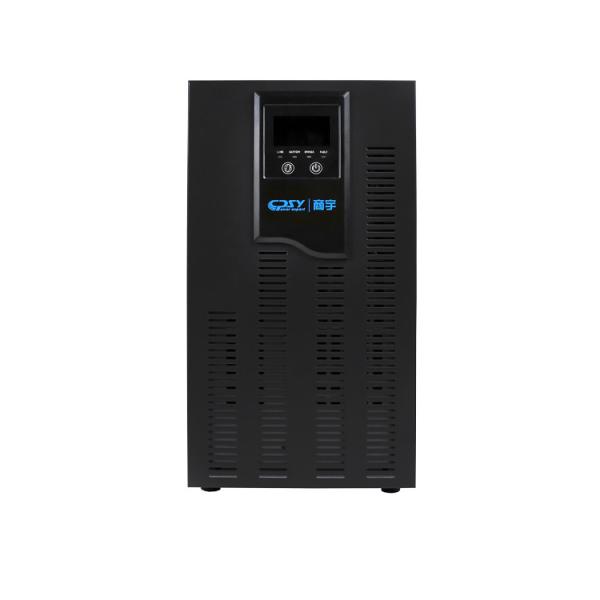

6kva 1 Phase Power Supply In And Out Tower High Frequency Ups For Small Station
6kva 1 Phase Power Supply In And Out Tower High Frequency Ups For Small Station
6kva 1 Phase Power Supply In And Out Tower High Frequency Ups For Small Station
6kva 1 Phase Power Supply In And Out Tower High Frequency Ups For Small Station
Specifications
Brand Name :
CPSY
Model Number :
HP1106H
Certification :
CE
Place of Origin :
Guangdong
MOQ :
1pc
Price :
usd/pcs
Payment Terms :
T/T
Supply Ability :
5000pcs
Delivery Time :
15days

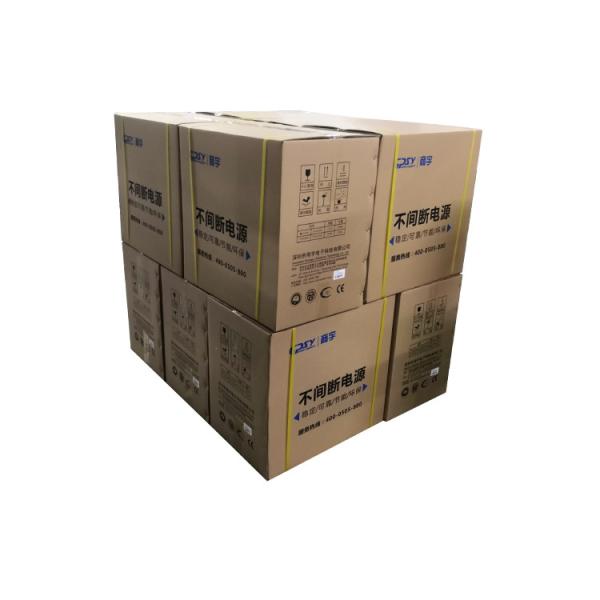

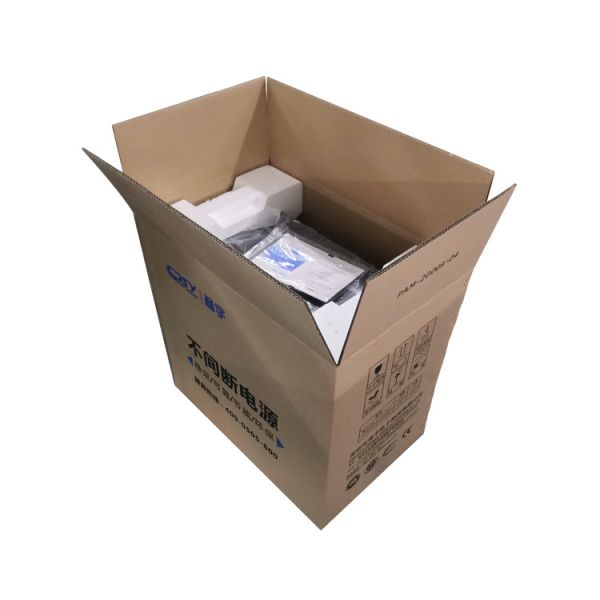

Packaging Details :
carton
Output voltage :
200/208/220/230/240VAC
Phase :
Single Phase
Wave form :
Pure Sine Wave
Warranty :
2 years
Battery :
External Connect
Transfer time :
Zero Conversion
Description

High frequency online ups for data center and IT infrastructure

Model HP1106H HP1110H
Capacity 6KVA/4.8KW 10KVA/8KW
Norminal voltage 220VAC Single phase grounding
Norminal frequency 50Hz
Input
Voltage Range 120-275VAC
Frequency Range 50Hz:(46-54Hz)
Power Factor 0.99
Output 0
Voltage Precision 220VAC×(1±1%)
Frequency Precision 50Hz×(1±1%)
Power factor 0.8
Harmonic Distortion Linear load<3% Non-linear<6%

Overload Capability (AC 25°C) 105%-125% Transfer to bypass after 1 min; 125%-135% Transfer to bypass after 30sc; >135% Transfer to bypass after 0.1sc;
Transfer time 0 ms(AC mode↔Battery) ;<4 ms(AC mode↔ Bypass)
Battery
DC Voltage 192VDC
Charging current 6A
Backup Time(Full Load) Depends on external battery capacity
Panel Display
LED indicators inverter, bypass, battery
,electricity
,load
,AC
Communication port Smart RS232, SNMP (Optional) , AS400(Optional),CMC(Optional)
Working Environment
Temperature 0°C-40°C
Relative Humidity 20%-90%(non-condensing)
Storage Temperature -25°C~55°C
Elevation <1000m
Noise Level <55dB
Physical Characteristic
Weight(KG) 17.2 19.3
Dimensions: ( W x D x H ) 240×500×460

Images:

6kva 1 Phase Power Supply In And Out Tower High Frequency Ups For Small Station6kva 1 Phase Power Supply In And Out Tower High Frequency Ups For Small Station6kva 1 Phase Power Supply In And Out Tower High Frequency Ups For Small Station
