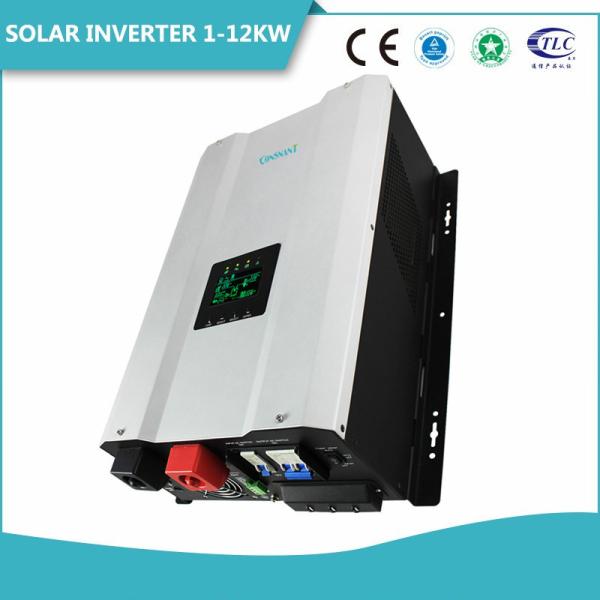

1 - 8KW Low Self - Consumption Solar Power Inverter With RS232 Communication
1 - 8KW Low Self - Consumption Solar Power Inverter With RS232 Communication
1 - 8KW Low Self - Consumption Solar Power Inverter With RS232 Communication
1 - 8KW Low Self - Consumption Solar Power Inverter With RS232 Communication
Specifications
Brand Name :
CONSNANT
Model Number :
CNS1000
Certification :
ICE, ISO
Place of Origin :
Shenzhen, China
MOQ :
20 pieces
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 pieces per month
Delivery Time :
5-8 days for sample order, 15-21 days for large quantity
Packaging Details :
Export Standard Package
Rated Power (W) :
1000-8000W
PV Recommend Power :
1500W-6000W
Communication :
RS232/RJ45(Optional)
Overload Cap. :
105-120% 30s; 120~150% 10s; >150% 5s; Short Circuit 10ms
Output Wave :
Pure Sine Wave
Charge Type :
MPPT
Description

1 - 8KW Low Self - Consumption Solar Power Inverter With RS232 Communication

Product description:


CNS series single-phase off-grid inverter consist of 3 functional modules: solar controller, pure sine wave inverter and isolated transformer. The controller adapts MPPT technology and intelligent battery management design which is very efficient and smart; integrated pure sine wave inverter and low frequency isolated transformer makes it with excellent overload performance, suitable for a variety of electrical appliances. It supports mains/generator input, take advantages of old diesel generators, saving initial investment and operation maintenance cost.

Application:


CNS series is mainly applied in remote animal husbandry, fishery area and big family to solve people's electricity problems.

Advantages:

  • Integrated design with MPPT controller, inverter and UPS function
  • Low self-consumption, energy conservation
  • Pure sine wave output
  • Adopt the isolated transformer, safe and stable
  • Mains/diesel generator input interface(optional)
  • Excellent overload capacity
  • Intelligent battery management functions
  • Comprehensive protections
  • LCD display+LED status indicator
  • RS232 Communication(optional)

FAQ:

1)Q: How can i trust your company?
A: We have foreign clients from more than 20 countries making OEM,ODM order from us, we have cooperation with GS, China Tower, the world-class companies. Our company have employees with experience for more than ten years. Products pass CE,IEC,ISO9001, ISO14001 certificates.


2) Q: Your products?
A: Shenzhen Consnant Technology Co., Ltd. is factory for UPS power and solar power system solution. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, ICE, ISO9001, ISO14001 etc.


3) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated well, they help us export . For small package orders, suggest to use by Express.


4) Q: Your address ?
A: Locates in Shenzhen City Guangdong Province, China,welcome to visit us


Technical Specifications:

Model NO. Inverter CNSB1000 CNSB-2000 CNSB-3000 CNSB-4000 CNSB-5000 CNSB-6000 CNSB-8000
Rated Power (W) 1000W 2000W 3000W 4000W 5000W 6000W 8000W
Peak Power (W) 3000W 6000W 9000W 12000W 15000W 18000W 24000W
System Volt. 12V/24V 24V/48V 24V/48V 48V 48V 48V 48V/96V
Inverter Output Volt. 110V / 120V/220V/230V/240VAC±5% 220V/230V/240VAC±5%
Output Frequency 50/60Hz±1%
Efficiency >85%
Overload Capacity 105-120% 30min; 120-130% 5min; 140-150% 1min; >150% <20S; Short Circuit 10ms
Output Wave Pure Sine Wave
Solar Charge Controller
Charge Type MPPT
PV Recommend Power 900/1800W 1800/3600W 1800/3600W 4800W 4800W 4800W 4800W/6000V
PV Input Volt. Range 18~90V(12V)/35~90V(24V)/65-150V(48V) 150V(48V)/150-250V(96V)
Input Rate Volt. 40V/102V/180V(24V/48V/96V)
Max. Output Current 60A 60A/30A 60A/30A 80A 80A 80A 80A/50A
Floating Charging Volt. 13.4V/26.8V 26.8V/53.5V 26.8V/53.5V 53.5 53.5 53.5 53.5/107
Equalization Charging Volt. 14.4/28.8 28.8V/57.6V 28.8V/57.6V 57.6 57.6 57.6 57.6/115.2
AC Battery Charger
AC Input Volt. 85-135V(110V)/90-145V(120V)/165-265V(220V)/172-278V(230V)/180-290V(240V)
Input Frequency 50/60HZ ± 3%
AC Charge Current 12V Max:20A; 24V Max: 10A 24V Max : 20A; 48V Max: 10A 24V Max : 30A; 48V Max: 15A Max : 20A; Max : 20A; Max : 30A; 48V Max : 40A; 96V Max : 20A
AC By-pass
Transfer Time <8ms
AC Input Wave Form AC or Generator (Sine Wave)
General
Display LED + LCD
Display Content PV Status; Battery Capacity; AC Input & Output Volt.; Load; Running Status
Cooling Method Fan Cooling
Communication RS232/RJ45(Optional)
Noise Emission [dB (A)] <60 (1m)
Operating Temp.Range -20~+50°C
Storage Temp.Range -15~+70°C
Operation Humidity 0~90%RH Non-condensing
Dimension (mm) 567*400*228 585*425*265 875*576*540
Weight (KG) 15 25 30 35 48 65 78
