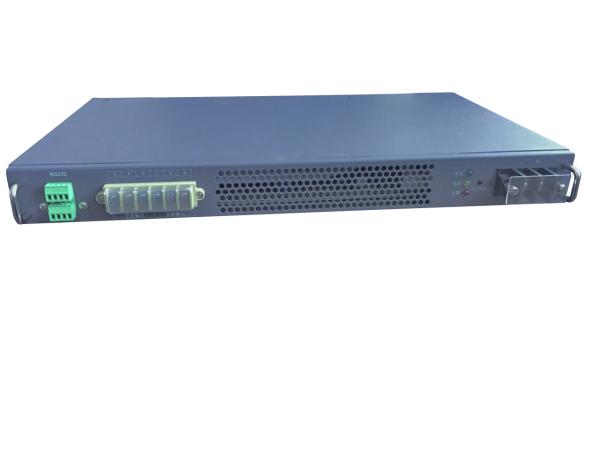

Single Phase Rack Mount Power Supply 500 - 300VA / 400 - 2400W 306 * 482.6 * 44mm
Single Phase Rack Mount Power Supply 500 - 300VA / 400 - 2400W 306 * 482.6 * 44mm
Specifications
Brand Name :
CONSNANT
Model Number :
CNH110RT
Certification :
ICE, ISO
Place of Origin :
Shenzhen, China
MOQ :
50
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 pieces per month
Delivery Time :
7 days for sample, 15-30 days against order quantity
Packaging Details :
Export Standard Package
Transfer time :
≤10 ms
Waveform :
Pure Sine Wave
Over load :
105%~150%:UPS shuts down after 10 minutes at battery mode >150% UPS shuts down after 10 seconds at battery mode
Efficiency :
≥90%
Harmonic distortion :
≤3% THD(linear load)
Phase :
Single phase with ground
Description

500 - 3000VA Rack Mount Power Supply Pure Sine Wave THD ≤ 3% (Linear Load)

Features:

Phase: Single phase with ground
Transfer time: ≤10 ms
Waveform: Pure sine wave
Over load:105%~150%:UPS shuts down after 10 minutes at battery mode
>150%: UPS shuts down after 10 seconds at battery mode
Efficiency: ≥90%
THD: ≤3% THD(linear load)

Specification:

Model CNH110RT
Capacity 500-300VA/400-2400W
Input voltage 220VAC
Input voltage range 176-255VAC
DC input 48VDC
DC voltage regulation 40-58VDC
Output voltage 220VAC
Output voltage regulation ±3%(Bat. mode)
Output frequency range 50Hz±1%
Dimension (D*W*H) 306*482.6*44
Net weight(kg) 405
Humidity 0-90% RH@ 1~40 ℃ (non-condensing)
Noise level Less than 60dB

Single Phase Rack Mount Power Supply 500 - 300VA / 400 - 2400W 306 * 482.6 * 44mm
