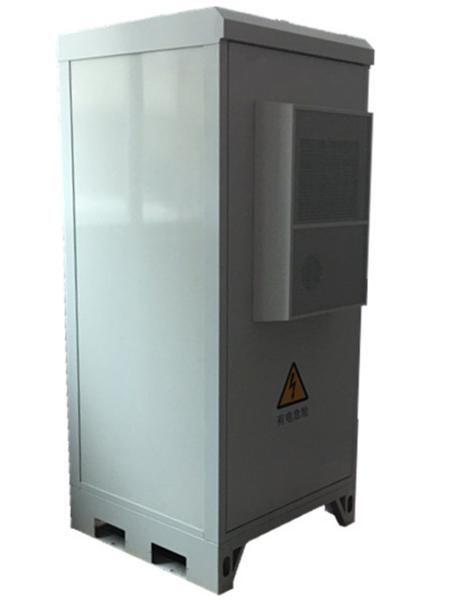

Galvanized Steel Sheet Outdoor Telecom Cabinet , Waterproof Outdoor Electrical Enclosure
Galvanized Steel Sheet Outdoor Telecom Cabinet , Waterproof Outdoor Electrical Enclosure
Specifications
Brand Name :
CONSNANT
Model Number :
CNWC
Certification :
ISO
Place of Origin :
Shenzhen, China
MOQ :
10
Price :
Ngotiable
Payment Terms :
30% T/T in advance, L/C, Western Union
Supply Ability :
1000 piece per month
Delivery Time :
7 days for sample, 7-30 days for mass production
Packaging Details :
Export Standard Package
Door lock :
Three point security locks,European standard
Protection :
IP55 level
Temperature control :
PC300
Safety Standard :
IEC/EN/UL 60950
EMC Standard :
EM 300 386-2
Illumination :
-48V LED light
Description

Galvanized Steel Sheet IP55 Outdoor Cabinet of Telecom Equipment and Battery

Quick Details:

nternal dimension(W*D*H) 800mm*800mm*1800mm
External dimension(W*D*H) 905mm*1080mm*2105mm
Floor area(W*D) 905mm*905mm
Base height 200mm

1. Brief Introduction:

CONSNANT Outdoor Integrated Cabinet product includes two series, one is functional cabinet that covers power cabinet, electronics cabinet and battery cabinet; the other is 1U holding cabinet(outdoor macro site, RRU),2U holding cabinet, 3U holding cabinet

2. Product features:

  • Small volume, easy to to find the site.

Single cabinet covers an area of less than 1 square meter. The site is easy to obtain, so the cabinet can be applied to the top of the hill, roof, street and other scenes;；

  • Subdivision temperature control, energy conservation and emission reduction

Fine sub-class temperature control save energy maximumly; cabinet with insulated sandwich panels weaken the impact of solar radiation on the cabinet temperature

  • Modular design, fast provision

Modular design support bulk shipment and site installation, and easy to expand

  • Strong structure, good rust-proof capacity

Aluminum profile frame structure, outside panel adopts color steel panel with excellent performance of antiseptic, passing the salt spray test for 960H.

  • Flexible housing and strong adaptability

Support the installation of main equipment, transmission equipment, power supply, battery and other equipment from different manufacturers and different installation methods.

Specification:

Item Specification
Weight 105KG( not including electronics and battery)
User space 40U
Flame material Galvanized steel sheet
Wall material Color steel sandwich panel: color steel+polystyrene(polyurethane PU optional)
Wall thick 45mm
Door lock Three point security locks,European standard ,
IP IP55
Cable laying arrangement. 8*Φ50mm
Delivery form Fully equiped
Operating temperature -40℃～+70℃
Cabinet relative humidity 5%～100%
Air Circulation & Heat exhaust arrangement
Temperature control PC300
TCO2 power dissipation 230W @L35/L35
TCO2 refrigerating capacity 400W @L35/L35
Heater power consumption(optional) 500W
Battery information
Specification 650AH 2V/150AH 12V AGM battery
Capacity 650AH/600AH
Group 1/*4 groups
Others
Illumination -48V LED light

Remarks: Fully Customized! Supply what you really need!
