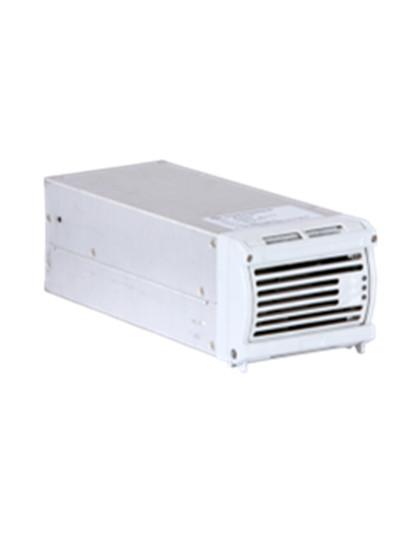

Rectifier Modular 2 U Telecom Power Supply 48V 10A 2 U 106 * 83.8 * 218mm
Rectifier Modular 2 U Telecom Power Supply 48V 10A 2 U 106 * 83.8 * 218mm
Specifications
Brand Name :
CONSNANT
Model Number :
SR2U4850
Certification :
ICE, ISO
Place of Origin :
Shenzhen, China
MOQ :
50
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 pieces per month
Delivery Time :
15-30 days against the order quantity
Packaging Details :
Export Standard Package
Rated AC Input voltage :
230V
Voltage range :
85V-350VAC / 90V-380VDC
Frequency range :
45~65Hz
Max. Current :
18.6A
Power factor :
0.99
Efficiency :
92%
Description

Rectifier Modular 2 U Telecom Power Supply 48V 10A 2 U 106 * 83.8 * 218mm

AC Input:

Rated voltage: 230V

Voltage range: 85V-350VAC / 90V-380VDC

Frequency range: 45~65Hz

Max. Current: 10A(30A), 7.5A(20A), 5.6A(15A), 3.7A(10A)

Power factor: 0.99

Efficiency:92%

DC Output:

Standard voltage: 48V

Voltage range: 43V~59V

Current ratings: 30A,20A,15A, 10A

Source effect: ≦±0.1%

Load effect: ≦±0.5%

Stabilized voltage precision: ≦±0.6%

Soft-startup time: 6S

Mechanical characteristic:

Dimensions(W*H*D): 106*83.8(2 U)*218mm

Weight: 2.2KG

Rectifier Modular 2 U Telecom Power Supply 48V 10A 2 U 106 * 83.8 * 218mm
