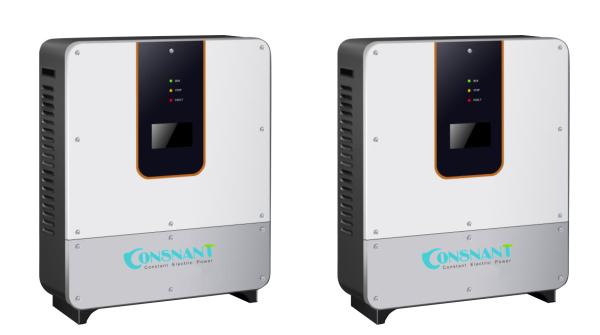

10KW 12.5kva Lithium Ion Ups Hybrid Inverter For Villa
10KW 12.5kva Lithium Ion Ups Hybrid Inverter For Villa
Specifications
Brand Name :
CONSNANT
Model Number :
CNS SPT 7500TL
Certification :
CE, ISO
Place of Origin :
Shenzhen, China
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, L/C,
Supply Ability :
10000 pieces per year
Delivery Time :
5-7days for sample, 7-15 days for mass production.
Packaging Details :
Export Stadard Package
Rated Power :
7.5-10KW
Output :
Dry contact output
Nature of Source Flow :
Active Inverter
Display :
Touchscreen LCD
Output frequency :
50/60HZ
Protection degree :
IP65
Application :
Solar power system Home
Voltage rated :
400V
Battery voltage range :
280-700V
No. of MPPT :
2
Weight :
50kg
Description

5-10KW Single Phase All-in-one Hybrid Solar Power Inverter

Description:

CNS SPT Series Hybrid Inverter is designed to serve as a backup power supply for AC loads. The input power of CNS SPT Series hybrid inverter comes from PV system and AC grid which not only supply power to AC loads but also charge the battery bank when the power from AC grid or AC generator is present(also known as Line Mode).

In the event of the AC grid (or AC generator) outage, the AC loads can be alternatively powered by PV system(if the illumination is sufficient) and the battery bank.

Features:

1. AC/Solar Charging Off Grid Hybrid Inverter.

2. LED/LCD display, Enhanced functions setting via LCD, Man-machine intelligent design

3. Built-in pcs MPPT solar charger controller.

4. LCD shows the solar capacity.

5. Seamless on/off grid transfer.

6. AC/DC priority modes can be set.

7. Generator restart signal. (Dry contact)

8. 3 times peak power. Strong loading capacity.

9. Overload, output short-circuit protection.

Our Company:

Shenzhen Consnant Co., Ltd., is located nearby Shenzhen International Airport. It is a high-tech enterprise, specializing in UPS power and Solar power production and sales of new energy power products in Shenzhen.

We have our owned factory and engineer with more than ten years experience. Welcome OEM and ODM from you!


Technical specifications:

CNS SPT7500 TL CNS SPT10000TL
AC(grid-connected)
Apparent power 9.4kva 12.5kva
Rated power 7.5KW 10KW
Rated voltage 400V 400V
Rated current 10.5A 14A
Voltage rated 360V-440V
Rated frequency 50/60HZ
Frequency range 47-51.5/57-61.5HZ
THDI <3% <3%
PF 0.8 lagging-0.8leading
AC connection 3/N/PE
AC(Off-grid)
Apparent power 9.4kva 12.5kva
Rated power 7.5KW 10KW
Rated voltage 400V
Rated current 10.5A 14A
THDU <=2%linear
Rated frequency 50/60HZ
Overload capacity 110%-10min 120%-1min
DC(battery and PV)
Max PV open-circuit voltage 900V 900V
Recommended PV power 9kwp 12kwp
PV MPPT voltage range 370v-720v
Number of MPPT 2 2
Recommended nominal battery voltage 350v 400v
Battery voltage range 280-700v
Full load battery voltage range 300-700v
Max.charge/discharge power 7.5kw 10kw
Max. charge/display current 25A
General information
Protection devices PV DC switch,battery breaker and fuse,PV fuse,grid breaker,load breaker
Protection degree IP65
Noise emission <65db(A)@1m
Environment teperature -25℃…+55℃
Cooling Forced-air
Relative humidity 0-95%non-condensing
Max.altitude 6000m(derate over 3000m)
Dimension(W*H*D) 700*600*250mm
Weight 50kg
Topology Transformerless
Lighting protection Type II
Transfer between on/off grid Automatic<=20ms
Standby consumption <20W
Communication
Display Touch screen
Communication interface RS485/CAN
Certificate CE,MEA,PEA,EN,IEC
