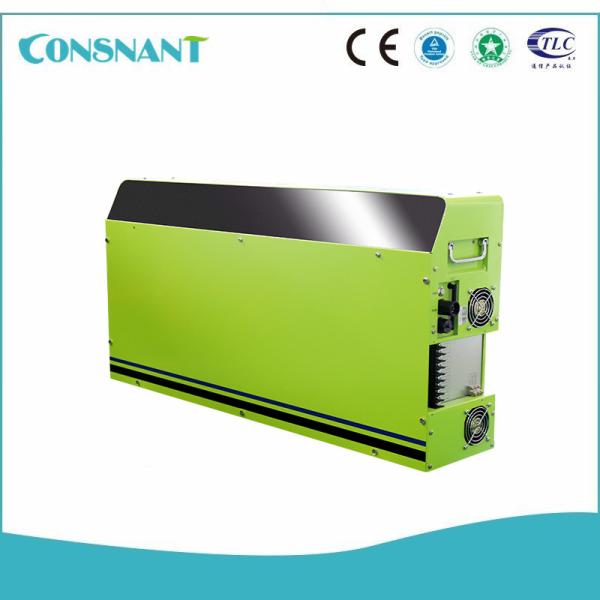

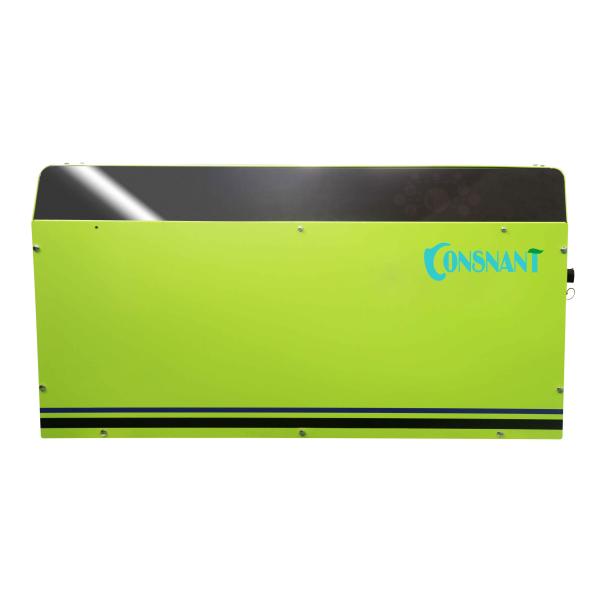

LiFePO4 Single Phase Hybrid Battery Electric Storage System All In One Design
LiFePO4 Single Phase Hybrid Battery Electric Storage System All In One Design
LiFePO4 Single Phase Hybrid Battery Electric Storage System All In One Design
LiFePO4 Single Phase Hybrid Battery Electric Storage System All In One Design
Specifications
Brand Name :
CONSNANT
Model Number :
HESS
Certification :
CE, ISO9001, ISO14001
Place of Origin :
Shenzhen,China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 set per month
Delivery Time :
20 days after receving 30% deposid
Packaging Details :
Export Standard Package
Max.PVvoltage :
550VDC
Rated power :
3kva
Rated frequency :
50/60Hz
MPPT voltage range :
150VDC-500VDC
Description

Single-phase Energy Storage System (ESS)

Feature

  • All in one design, integrated LFP Battery;
  • Hybrid work mode
  • Easy installation and maintenance, can meet the demand of different clients DIY,
  • APP for ISO/Android.
  • On/Off-Grid Functions;
  • Back-up/Bypass Functions;
  • Island Function, Battery Capacity Expandable.
  • Multi protection and warning system, safe and reliable;
  • Comply with TUV,SAA,CE;
  • Extensively tested Lithium Batteries.

Specification

Model No. Unit Unit R
PV Data (For DC Coupled)
Max. PV Input Power 3KW /
Max. PV Vpltage 550VDC /
MPPT Voltage Range 150VDC-500VDC /
No. of MPPT Trackers/Max.Input Current 1/1*20A /
On Grid Inverter Side Data (For AC Coupled)
Rated Voltage / 220V-240Vac
Rated Frequency / 50/60Hz
Rated Input Current / 14.3A
Rated Input Power / 3.3KW
AC Data
Rated Power 3kva
Continuous Ouput Power Back-up(MAX) 3kva(3.3kva)
Bypass(MAX) 3kva(9kva)
Overload Capacity (Off-Grid Mode) 3.3KW(normal running),4.5KW(5s),6KW(100ms)
Rated AC Voltage(Input/Ouput) 220V-240Vac/220V-240Vac
Rated Frequency 50/60Hz
Grid Input Max Current 42.9A
Max Power 9KVA
Grid Output Max Current 22A
Max Power 4.6KW
THD Inverter Voltage 2%
On-Grid Current 3%%
AC Input Voltage Range 180-270Vac
Max.Efficiency 94.30%
Output Wave Pure Sine Wave
Battery Data
Battery Voltage Rated 48Vdc
Range 44.5-54Vdc
Charging Voltage 44.5-54Vdc
Battery Type LiFePO4(standard)/Others (optional)
Battery Capacity 100AH
Max.Discharging Power 3200W
Max.Charging Current(capacity related) 5-50A(can be configured)
Charging Method 3 Steps charging

LiFePO4 Single Phase Hybrid Battery Electric Storage System All In One Design
