Specifications
Brand Name :
Rack Mount Inverter
Model Number :
3.5KW/5.5KW
Certification :
CE
Place of Origin :
MADE IN CHINA
Price :
Negotiable
Payment Terms :
T/T
Packaging Details :
Export Standard Package
Input voltage :
230v
Output frequency :
50/60Hz
Output voltage :
24V / 48V
Application :
CCTV Camera,telecom,Communication,LED Lighting
Type :
Rack Mount
Color :
Black White
Product name :
Rack Mount Inverter
Efficiency :
> 95%(Rated load, battery full charged)
Capacity :
3.5KW/5.5KW
Description

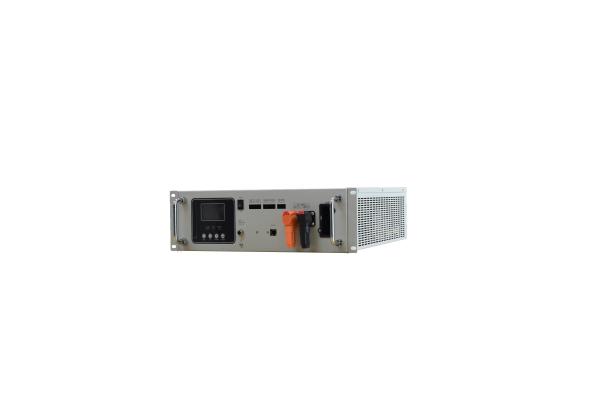

3.5KW / 5.5KW Rack Mount Inverter Rack Mount 24vdc / 48vdc Power Supply
Rack Mount Inverter Product Description
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery
charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers
user- configurable and easy-accessible button operation such as battery charging current, mains/solar
charger priority, and acceptable input voltage based on different applications.
Rack Mount Inverter Features:
  1. Pure sine wave inverter.
  2. Configurable mains input voltage range for home appliances and personal computers via load requirements.
  3. Configurable battery charging current based on load requirements.
  4. Configurable Mains/Solar Charger priority via LCD setting.
  5. Compatible to mains input and generator input.
  6. Auto restart while mains is recovering.
  7. Overload/Over temperature/ short circuit protection.
  8. Smart battery charger design for optimized battery performance.
  9. Cold start function.
  10. Remote monitor function via SNMP Card(optional).

Rack Mount Inverter Technical Parameter:

Model 3.5KW 5.5KW
Input Voltage Waveform Sinusoidal (utility or generator)
Nominal Input Voltage 230Vac
Low Loss Voltage 170Vac±7V(UPS);90Vac±7V(Appliances)
Low Loss Return Voltage 180Vac±7V(UPS);100Vac±7V(Appliances)
High Loss Voltage 280Vac±7V
High Loss Return Voltage 270Vac±7V
Max AC Input Voltage 300Vac
Nominal Input Frequency 50Hz/60Hz(Auto detection)
Low Loss Frequency 40±1Hz
Low Loss Return Frequency 42±1Hz
High Loss Frequency 65±1Hz
High Loss Return Frequency 63±1Hz
Output Short CircuitProtection Circuit Breaker
Efficiency (Mains Mode) > 95%(Rated load, battery full charged)
Transfer Time 10ms typical(UPS);20ms(Appliances)
